Chapter 3 Hardware Overview
ES-2108 Series User’s Guide
45

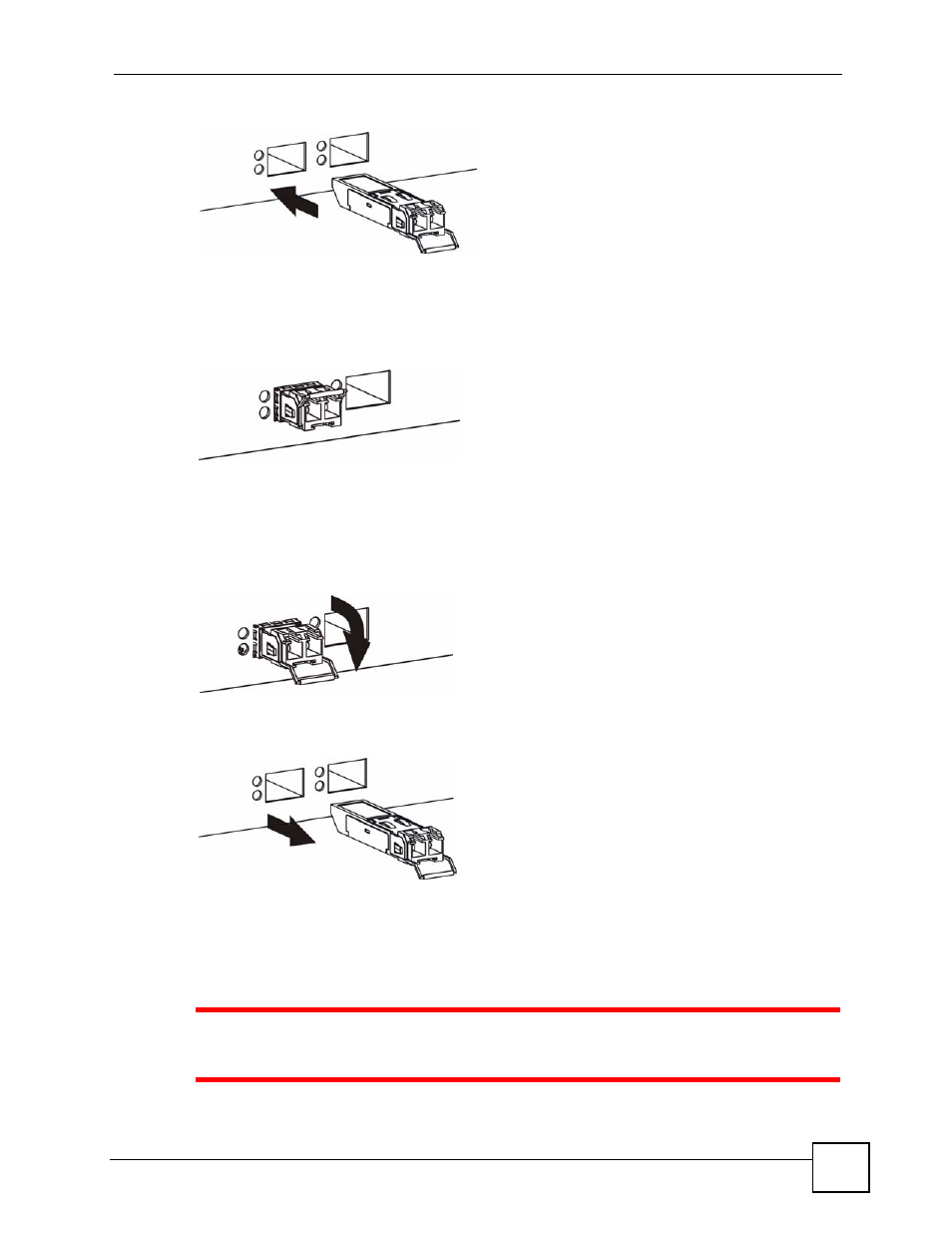

Figure 14 Transceiver Installation Example
2 Press the transceiver firmly until it clicks into place.
3 The Switch automatically detects the installed transceiver. Check the LEDs to verify that
it is functioning properly.
Figure 15 Installed Transceiver
3.1.4.2 Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
1 Open the transceiver’s latch (latch styles vary).
Figure 16 Opening the Transceiver’s Latch Example
2 Pull the transceiver out of the slot.
Figure 17 Transceiver Removal Example
3.1.5 100 Base-FX Fiber-Optic Port
This 100 Base-FX fiber-optic port is only available on the ES-2108-LC.
1
To avoid possible eye injury, do not look directly into a module’s fiber-optic
connectors. Keep the dust cover on a fiber-optic module until you connect it.
