NetAtlas Enterprise 1.00 User’s Guide
Chapter 10 System Configuration
92
C
H A P T E R
10
System Configuration
This chapter shows you how to view general system information, configure SNMP, remote
management and time setup.
10.1 System Info
See
for information about the switch.
10.2 SNMP
This explains explains SNMP configuration.
10.2.1 About SNMP
Simple Network Management Protocol is a protocol used for exchanging management
information between network switches. SNMP is a member of TCP/IP protocol suite. A
manager station can manage and monitor the switch through the network via SNMP version
2c. The next figure illustrates an SNMP management operation. SNMP is only available if
TCP/IP is configured.

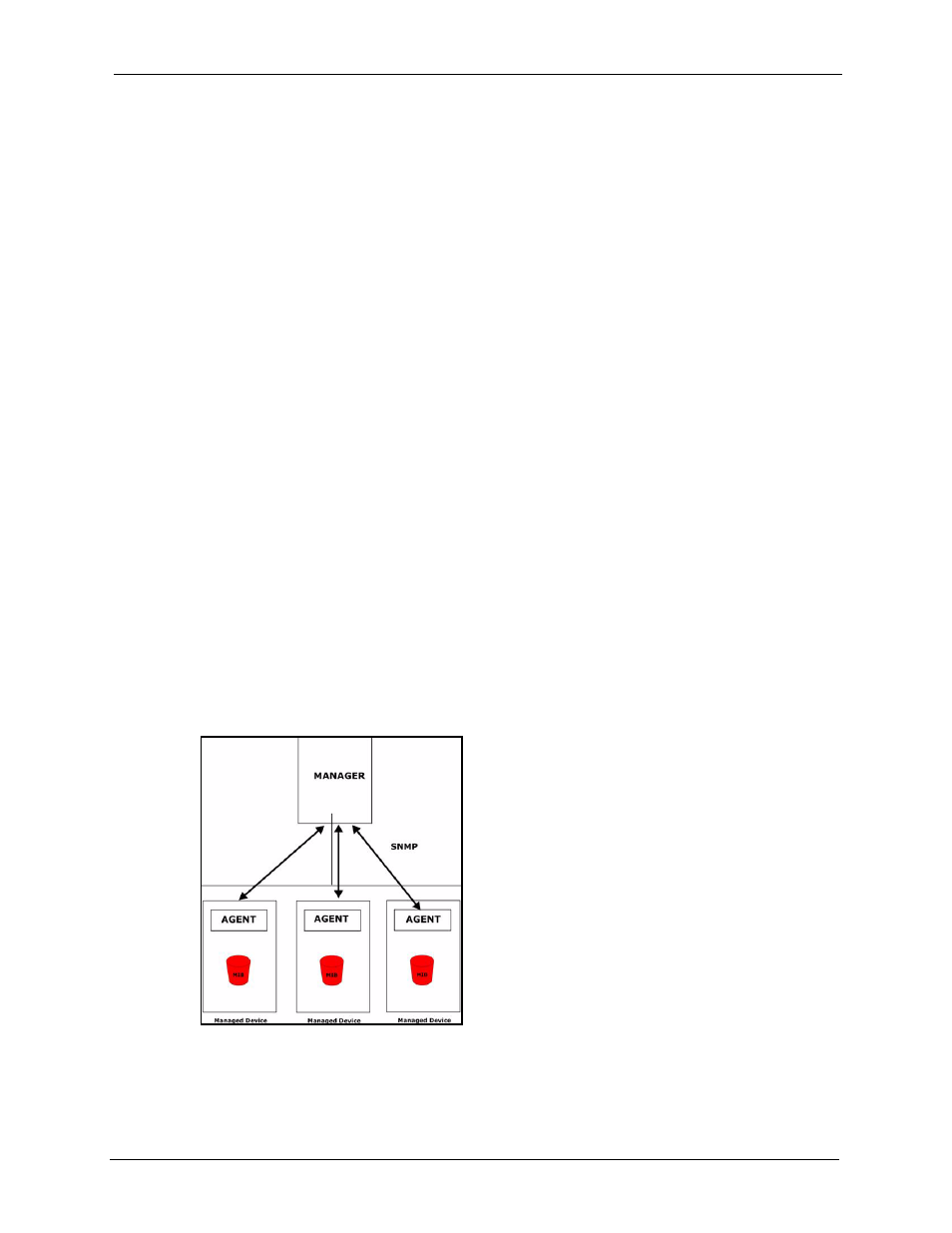

Figure 70 SNMP Management Model
An SNMP managed network consists of two main components: agents and a manager.
