Chapter 13 Ethernet Port Configuration 128
13.3.1 Configuring Port Link Aggregation
Follow the steps below to configure the Port Link Aggregation screen.
1 In the Device Panel list, select a device and then right-click.
2 Click Configuration, Switch Configuration and then the Switch Setup tab.
3 Select the Link Aggregation check box and then click Apply.
4 Click Configuration, Ethernet Port Configuration and then the Port Link
Aggregation tab.
5 Select the ports from the Port List Panel that you want to apply this configuration.

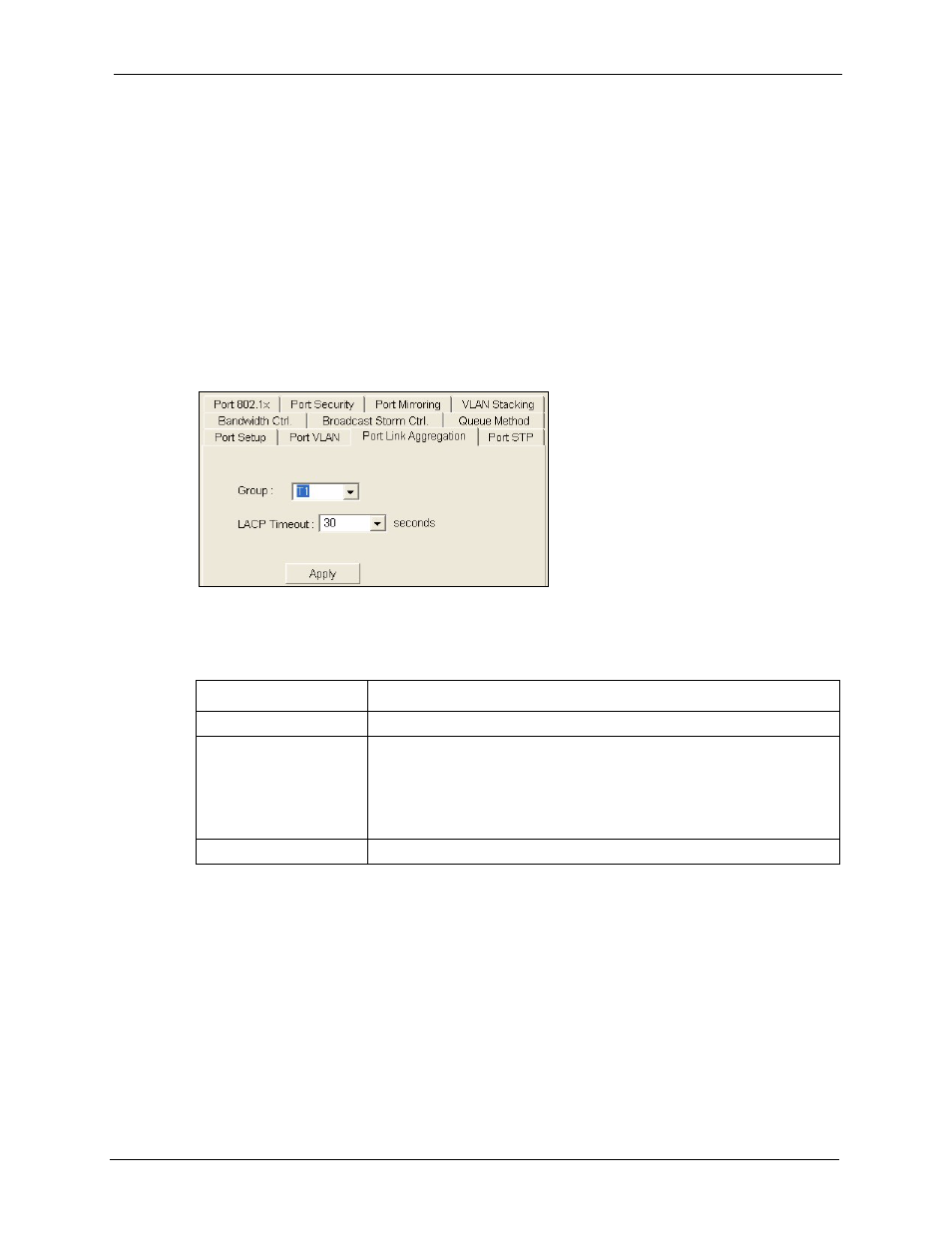

Figure 91 Configuration: Ethernet Port Configuration: Port Link Aggregation
The following table describes the fields in this screen.
Table 50 Configuration: Ethernet Port Configuring: Port Link Aggregation
LABEL DESCRIPTION
Group Select the trunk group to which a port belongs.
LACP Timeout Timeout is the time interval between the individual port exchanges of LACP
packets in order to check that the peer port in the trunk group is still up. If a
port does not respond after three tries, then it is deemed to be “down” and
is removed from the trunk. Set a short timeout (one second) for busy
trunked links to ensure that disabled ports are removed from the trunk
group as soon as possible. Select from 1 second to 30 seconds.
Apply Click Apply to save the changes back to the switch.
13.4 Port STP
Use the following screen to configure STP for the selected ports.
13.4.1 Configuring Port STP
Follow the steps below to configure the Port STP screen.
1 In the Device Panel list, right-click on a device.
