NetAtlas Enterprise 1.00 User’s Guide
Chapter 5 Status 66

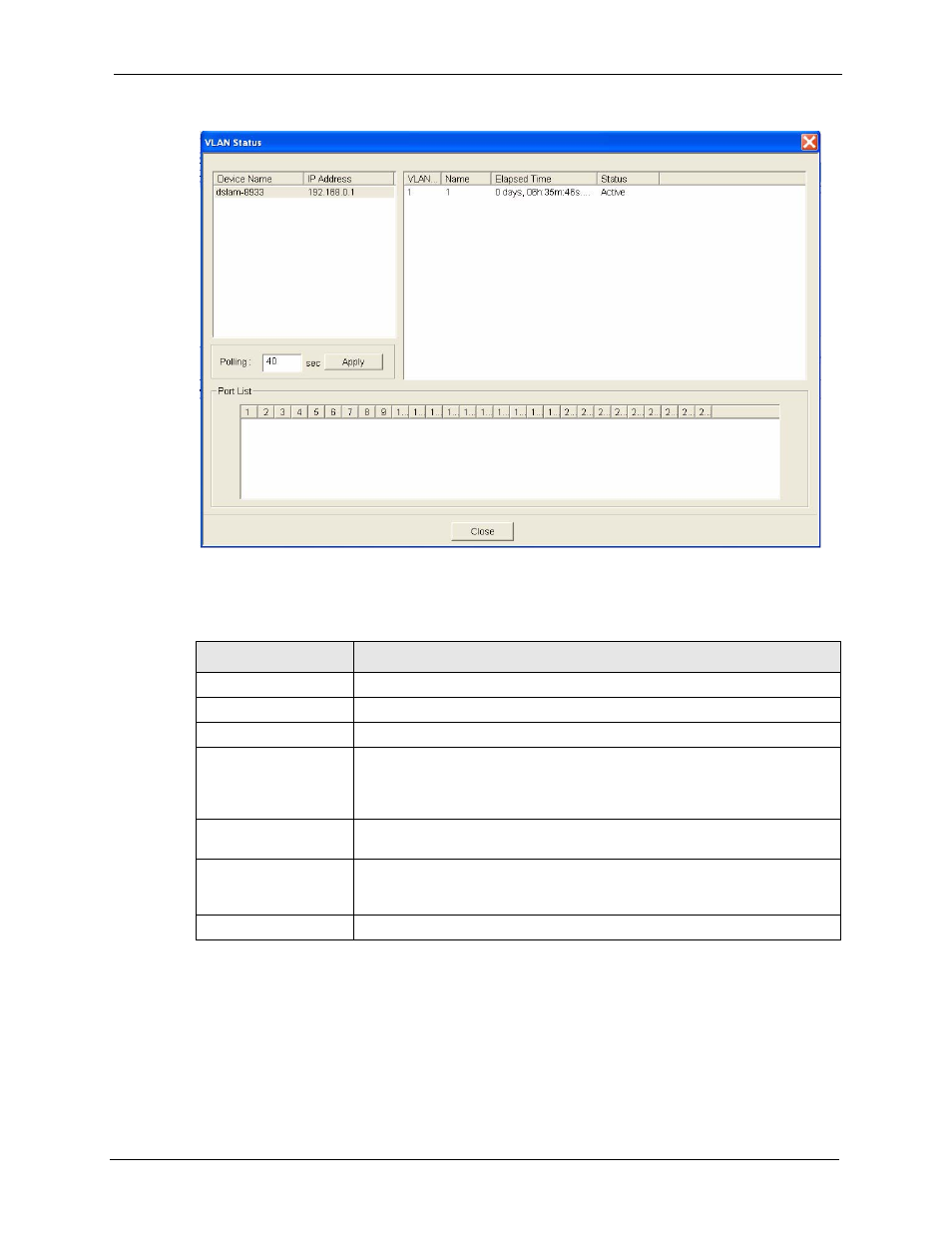

Figure 49 Status: VLAN Status
The following table describes the labels in this screen.
Table 17 Status: VLAN Status
LABEL DESCRIPTION
VLAN ID This field displays the identification number of the VLAN.
Name This field displays a unique number for identification purposes.
Elapsed Time This field displays the time since the VLAN was created.
Status This field displays Active if the VLAN is active and will remain so after the
next reset of the device. This field displays GVRP if the VLAN is active and
will remain so until removed by GVRP. This field is other if the VLAN is active,
but is not permanent or created by GVRP.
Port List This table displays all available ports that are participating in a VLAN. A
tagged port is marked T while an untagged port is marked U.
Polling The text box displays how often (in seconds) this screen refreshes. You may
change the refresh interval by typing a new number in the text box and then
clicking the Apply button.
Close Click Close to close the screen.
5.4 Port Status
Follow the steps below to view the port status of a switch.
1 Click Status and then Port Status to display the following screen.
