Chapter 15 Performance 150
15.2 Table Menu Bar Icons
The following figure displays the table menu bar icons. These icons are common to all screens
that display information in tabular format.

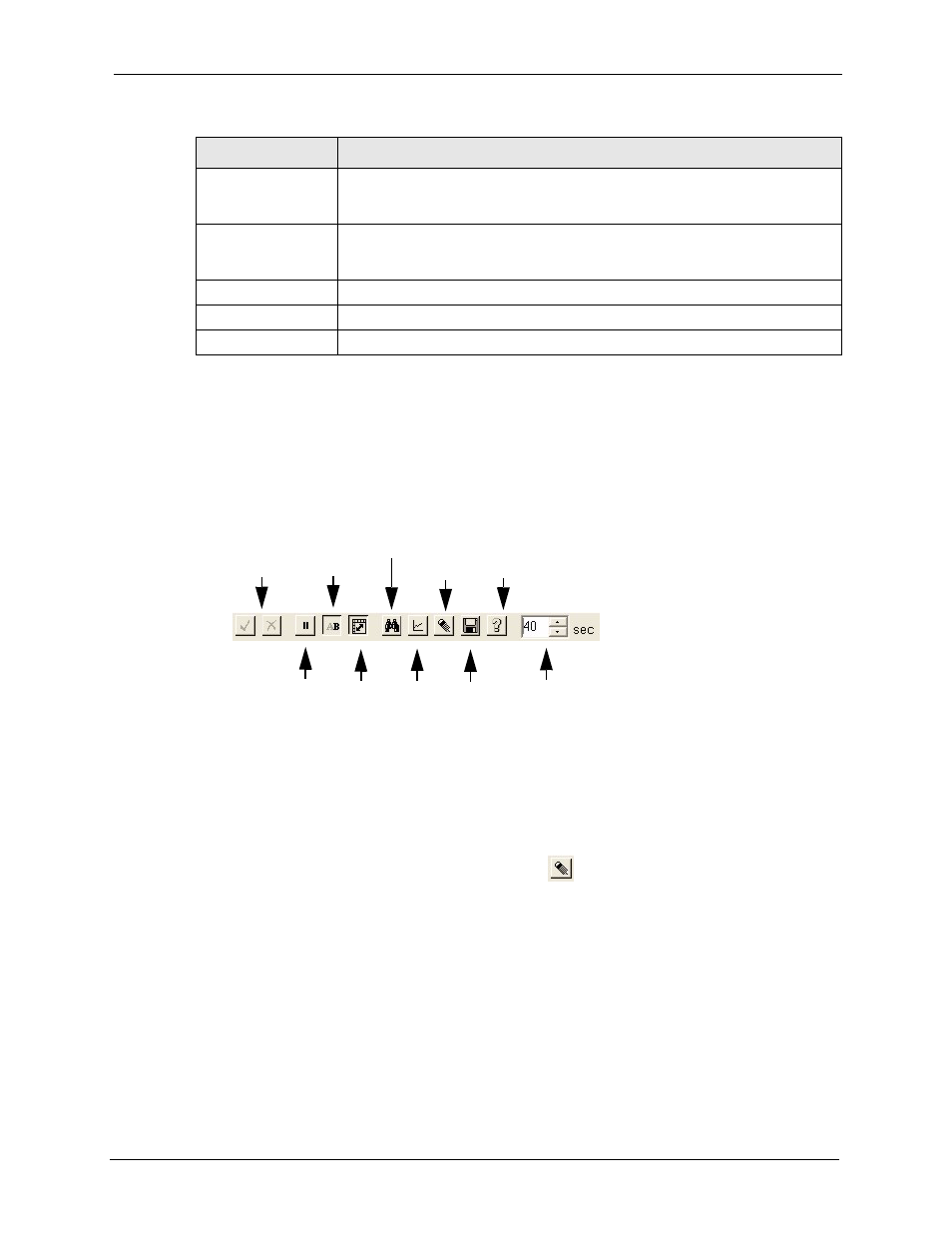

Figure 108 Table Menu Bar Icons
Edit Short Search Edit SNMPc
Controls Names Entry Help
Pause Switch Show Save to Poll
Polling Axis Graph File Interval
15.2.1 Editing a Table Entry
Note: You can edit a table entry in all screens that display information in tabular
format.
In any tabulated screen display, click the Edit icon in the menu bar icon to display the
Edit Table Entry screen and edit any field in a table. There is a set of variable names, value and
set button controls that operate on the fields of the selected table. There is also a set of function
control buttons on the right. For tables that have more than ten entries, the Edit Table Entry
screen supports multiple pages.
HC-Multicast Pkts Select this option to show the number of multicast packets (High Capacity (HC)
64 ~ 1518 octets long) dropped because they either had a bad Frame Check
Sequence (FCS) or none-integer number of octets (alignment error).
HC-Broadcast Pkts Select this option to show the number of broadcast packets (High Capacity (HC)
64 ~ 1518 octets long) dropped because they either had a bad Frame Check
Sequence (FCS) or none-integer number of octets (alignment error).
Graph Select the Graph button to create a graph based on the above selections.
Table Select the Table button to create a table based on the above selections.
Close Click Close to close the screen.
Table 66 Performance: Interface (continued)
LABEL DESCRIPTION
