Chapter 15 Performance 154

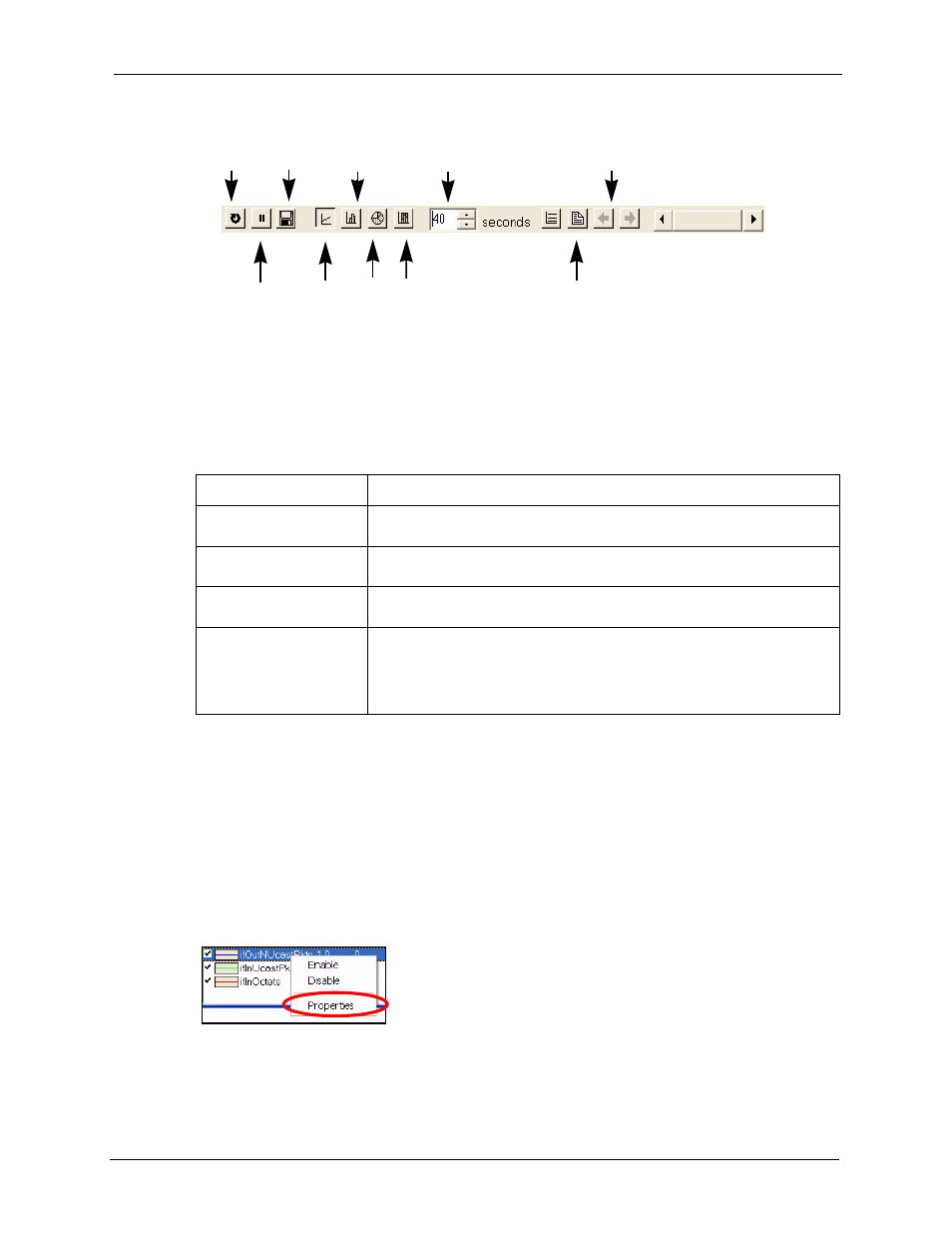

Figure 111 Graph Menu Bar
Graph File Chart Interval Controls
Restart Save to Bar Poll Paging
Graph Graph Chart Scale
Pause Line Pie Distribution Vertical
15.3.1 Graph Styles
Use one of the style buttons to change the graph style to one of the following:
Table 69 Edit Table Entry
STYLE DESCRIPTION
Line Each variable is displayed as a line, with time as the horizontal axis. The
vertical axis represents the size of each polled value for each poll interval.
Bar The cumulative average value for each variable is displayed as a vertical
bar.
Pie All variables are displayed as relative sized portions of a pie diagram. The
entire display represents a single poll interval.
Distribution Each variable is displayed as a stacked vertical bar. Each segment of the
bar represents the amount of time that the variable value is within a certain
range (as a percent). The legend on the right side of the display shows the
corresponding range for each color. The entire display represents a single
poll interval.
15.3.2 Chart Format Display Variable
Choose which variables to display in chart format by doing one of the following:
1 Click a variable cell in a table and click the bar chart icon.
2 Display the chart menu and then deselect variables (all are displayed by default).
3 Right-click a variable’s cell and select Properties.
Figure 112 Cell Properties Select
4 A display properties dialog box opens. Select the Display check box.
