Chapter 14 Routing Configuration
The following table describes the labels in the summary table.
Table 59 Configuration: Routing Configuration
LABEL
DESCRIPTION
Index
This field displays the index number of the route.
Name
This field displays the descriptive name for this route. This is for
identification purpose only.
Active
This field displays Yes when the static route is activated and No when is it
deactivated.
Destination Address
This field displays the IP network address of the final destination.
Subnet Mask
This field displays the subnet mask for this destination.
Gateway Address
This field displays the IP address of the gateway. The gateway is an
immediate neighbor of your switch that will forward the packet to the
destination.
Metric
This field displays the cost of transmission for routing purposes.
Add
Click the Add button to create a new static route.
Modify
Select the rule(s) that you want to change and click the Modify button.
Delete
Check the rule(s) that you want to remove in the Delete column, and then
click the Delete button.
14.1.2 Add or Modify a Static Route
Click the Add button or select a static route and click the Modify button in the Routing
Configuration screen to display the following screen.

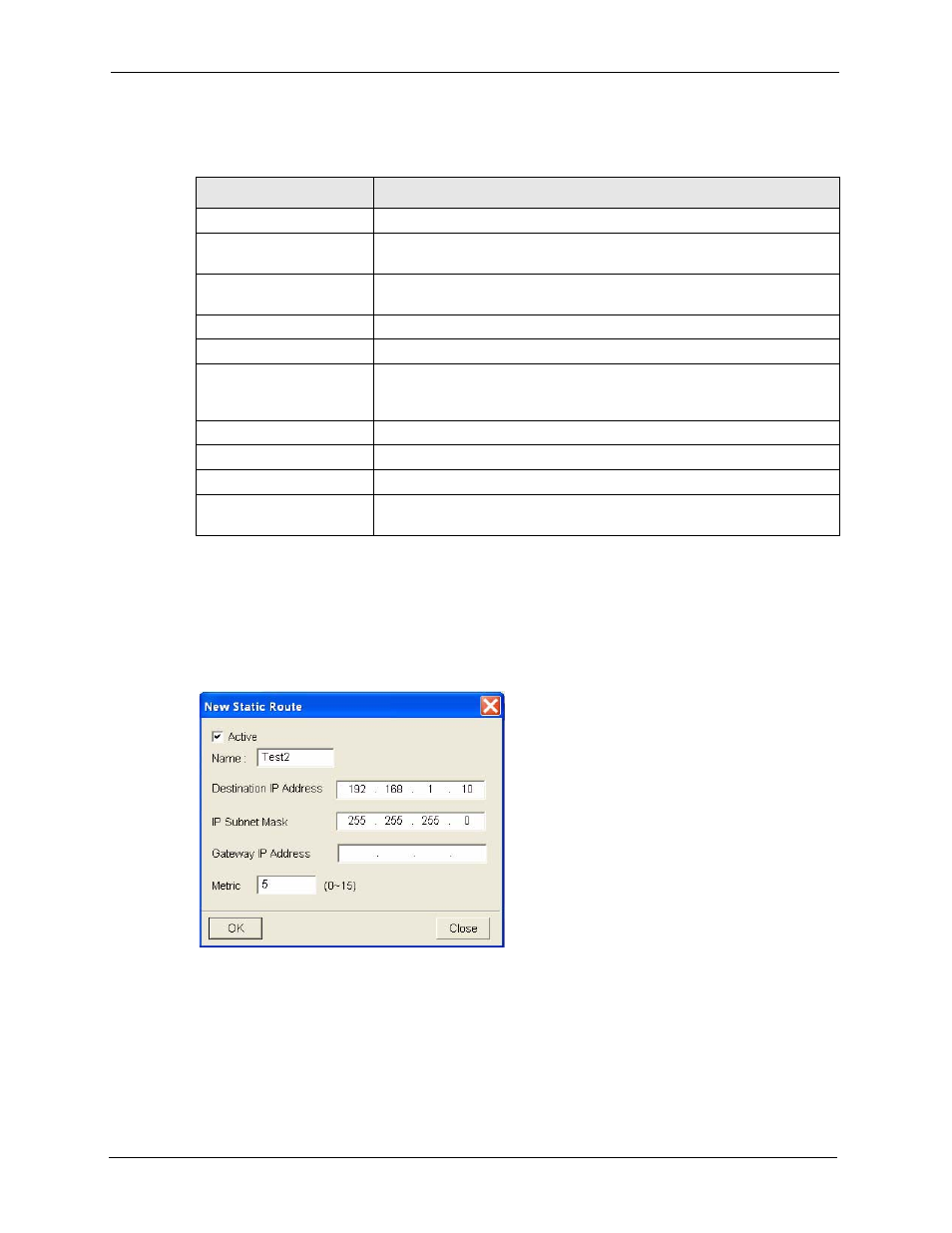

Figure 101 Configuration: Routing Configuration: Add or Modify
