NetAtlas Enterprise 1.00 User’s Guide
127 Chapter 13 Ethernet Port Configuration
5 Select the ports from the Port List Panel that you want to apply this configuration.

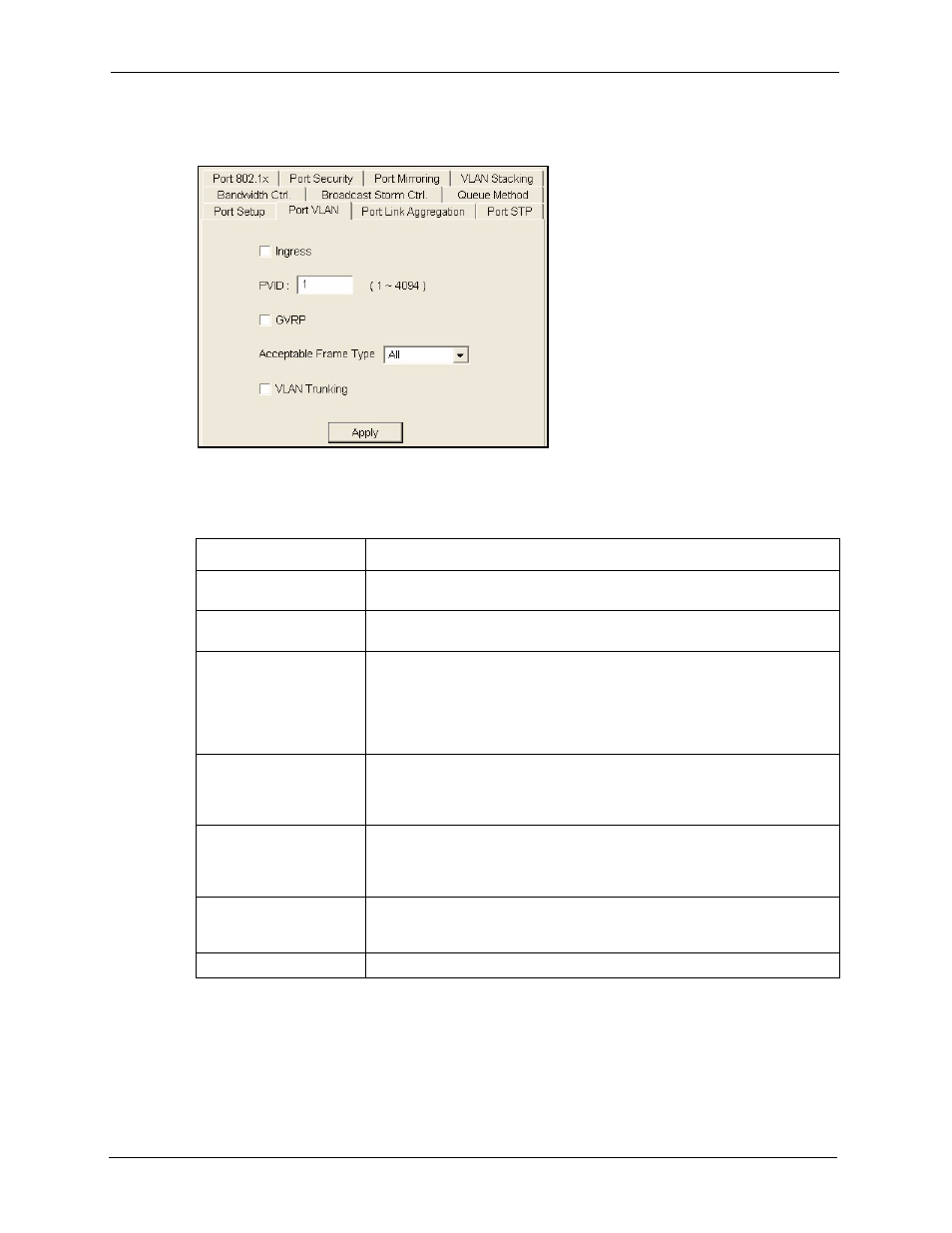

Figure 90 Configuration: Ethernet Port Configuration: Port VLAN
The following table describes the fields in this screen.
Table 49 Configuration: Ethernet Port Configuration: Port VLAN
LABEL DESCRIPTION
Port Select a port index number from the list of ports on the device you want to
configure.
Ingress If this check box is selected for a port, the device discards incoming frames
for VLANs that do not include this port in its member set.
PVID Each port on the switch is capable of passing tagged or untagged frames.
To forward a frame from an 802.1Q VLAN-unaware switch to an 802.1Q
VLAN-aware switch, the switch first decides where to forward the frame,
and then inserts a VLAN tag reflecting the default ingress port's VLAN ID,
the PVID. The default PVID is VLAN 1 for all ports, but this can be changed
to any number between 1 and 4094.
GVRP Select the check box to permit VLAN groups beyond the local switch on this
port. GVRP (GARP VLAN Registration Protocol) is a registration protocol
that defines a way for switches to register necessary VLAN members on
ports across the network.
Acceptable Frame Type Specify the type of frames allowed on a port. Choices are All and Tag
Only. Select All to accept all frames with untagged or tagged frames on this
port. This is the default setting. Select Tag Only to accept only tagged
frames on this port. All untagged frames are dropped.
VLAN Trunking Enable VLAN Trunking on ports connected to other switches or routers (but
not ports directly connected to end users) to allow frames belonging to
unknown VLAN groups to pass through the switch.
Apply Click Apply to save the changes back to the switch.
13.3 Port Link Aggregation
Use the following screen to configure a port trunk group and set LACP timeout.
