NetAtlas Enterprise 1.00 User’s Guide
119
Chapter 12 VLAN

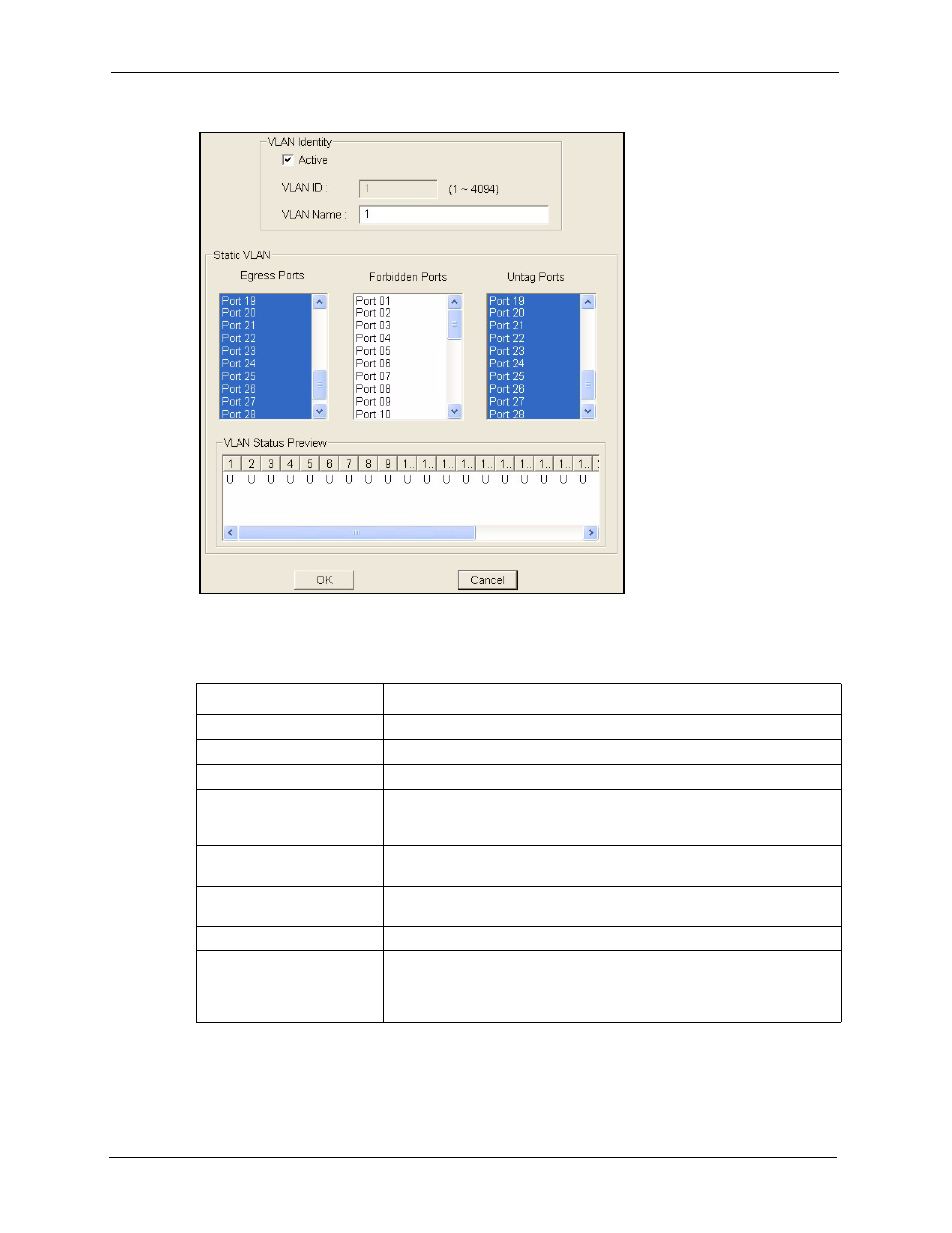

Figure 87 Configuration: VLAN Configuration: 802.1Q: Modify
The following table describes the labels in this screen.
Table 45 Configuration: VLAN Configuration: 802.1Q: Modify
LABEL
DESCRIPTION
VLAN Identity
Select the Active checkbox to enable this VLAN.
VLAN ID
This field displays a unique number to identify the VLAN.
VLAN Name
Enter a descriptive name for identification purposes.
Static VLAN
Click on a port in a list to add the selected port to the port list. If a port is
not on any of the three port lists, then it is a normal tagged port. Refer to
the following table for the VLAN port type descriptions.
Egress Ports
Select this if the subscriber's DSL modem or router supports 802.1Q
VLAN.
Forbidden Ports
This is a port that is blocked from joining a VLAN group. No frames are
transmitted through this port.
Untagged Ports
This is a port that does not tag all outgoing frames transmitted.
VLAN Status Preview
Click on a port in the Egress Ports list to add the selected port to the
VLAN Status Preview list. If a port is not selected from any of the three
port lists, then it is a normal tagged port. Refer to the following table for
the VLAN port type descriptions.
Note: A forbidden port cannot be an egress or untagged port.
For switches, an egress port cannot be untagged.
