030-300233 Rev. A 64 May 2006
Westell (Models 6000, 6100, 6110) User Guide
12.5 Private LAN Configuration - Configuring NAT

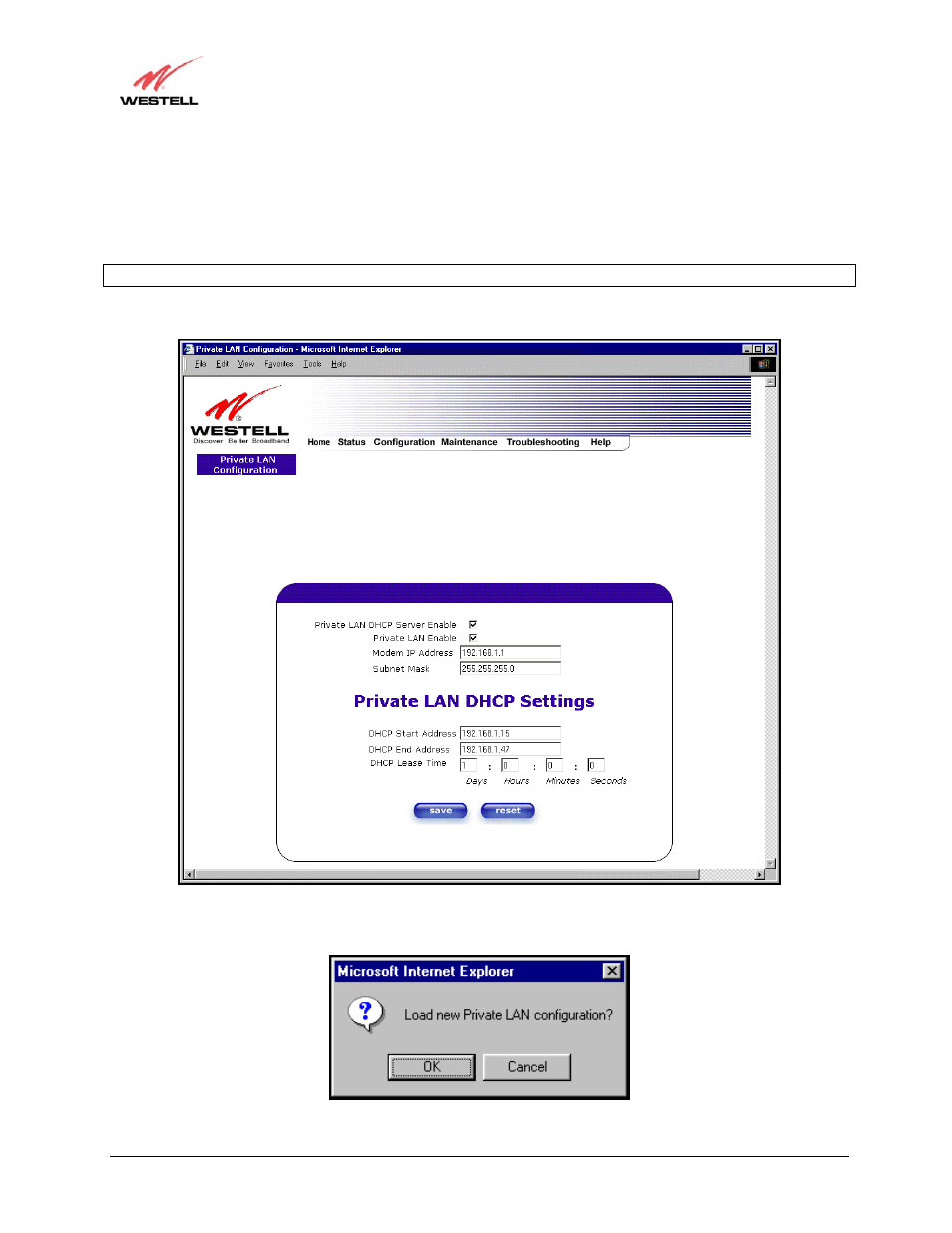

The following settings will be displayed if you select Private LAN Configuration from the Configuration menu.
(Private LAN is the default configuration for this Router.)
NOTE: Private LAN allows you to set up a network behind your Router.
If you change the settings in this screen, click save. If you click reset, the changes will not take effect.
If you made changes and clicked on save, the following pop-up screen will be displayed. Click OK. This will save
your Private LAN Configuration settings. If you click Cancel, your new settings will not take effect.
