15.5 Transceiver Statistics

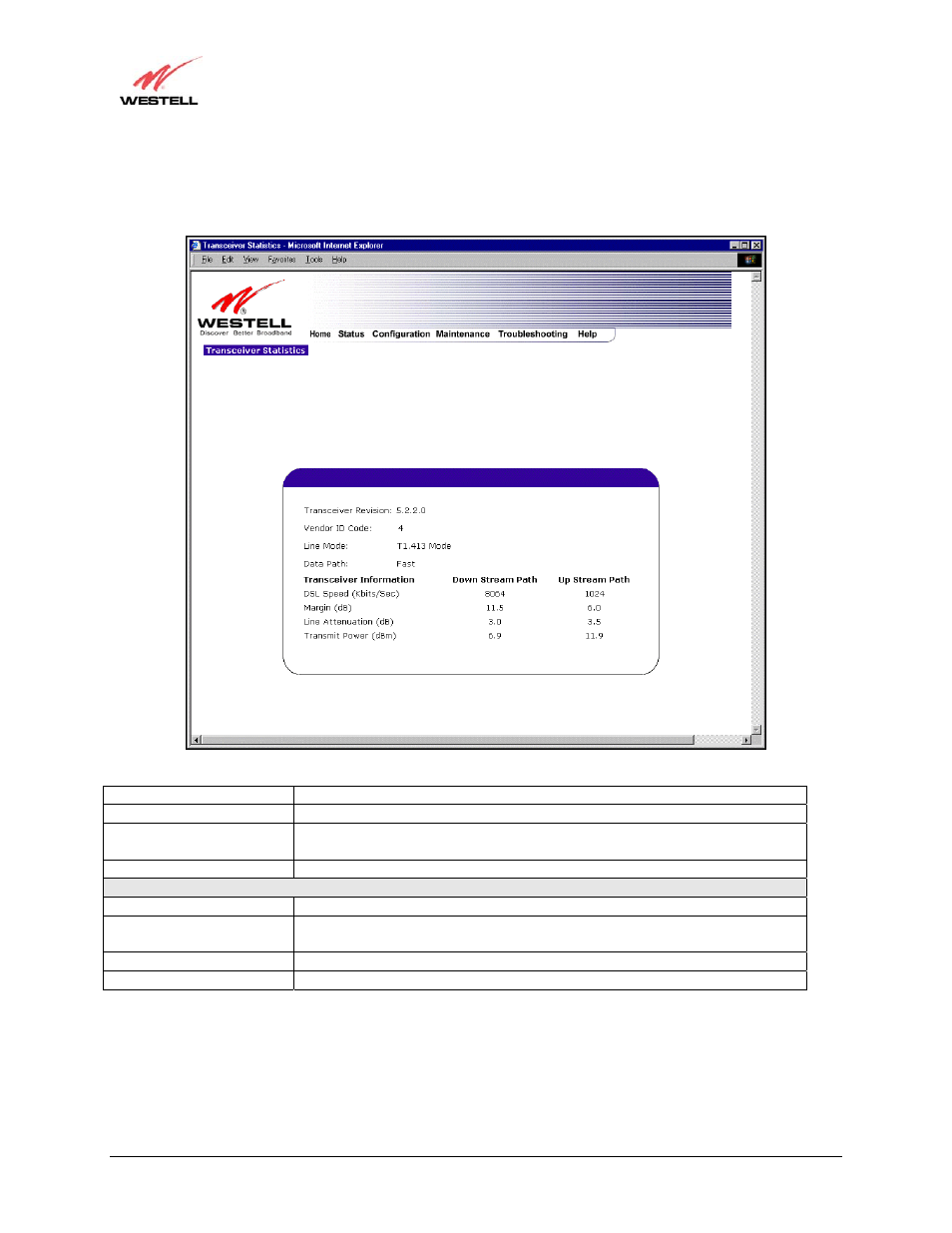

The following screen will be displayed if you select Troubleshooting > Transceiver Stats from the main menu.
Transceiver Revision
The transceiver software version number.
Vendor ID Code The CPE Vendor’s ID code for their chipset.
Line Mode The operational mode. Modes supported are No Mode, Multi Mode, T.1413
Mode, G.DMT Mode, and G.LITE Mode.
Data Path The data path used (either Fast or Interleaved).
Transceiver Information-Down Stream/Up Stream Path
DSL Speed (Kbits/Sec) The transmission rate that is provided by your Internet Service Provider (ISP).
SNR Margin (db) The Signal-to-Noise Ratio (S/N) where 0 db = 1x10 -7 , which inhibits your DSL
speed.
Line Attenuation (dB) The DSL line loss.
Transmit Power (db/Hz) The transmitted signal strength.
