030-300233 Rev. A 52 May 2006
Westell (Models 6000, 6100, 6110) User Guide

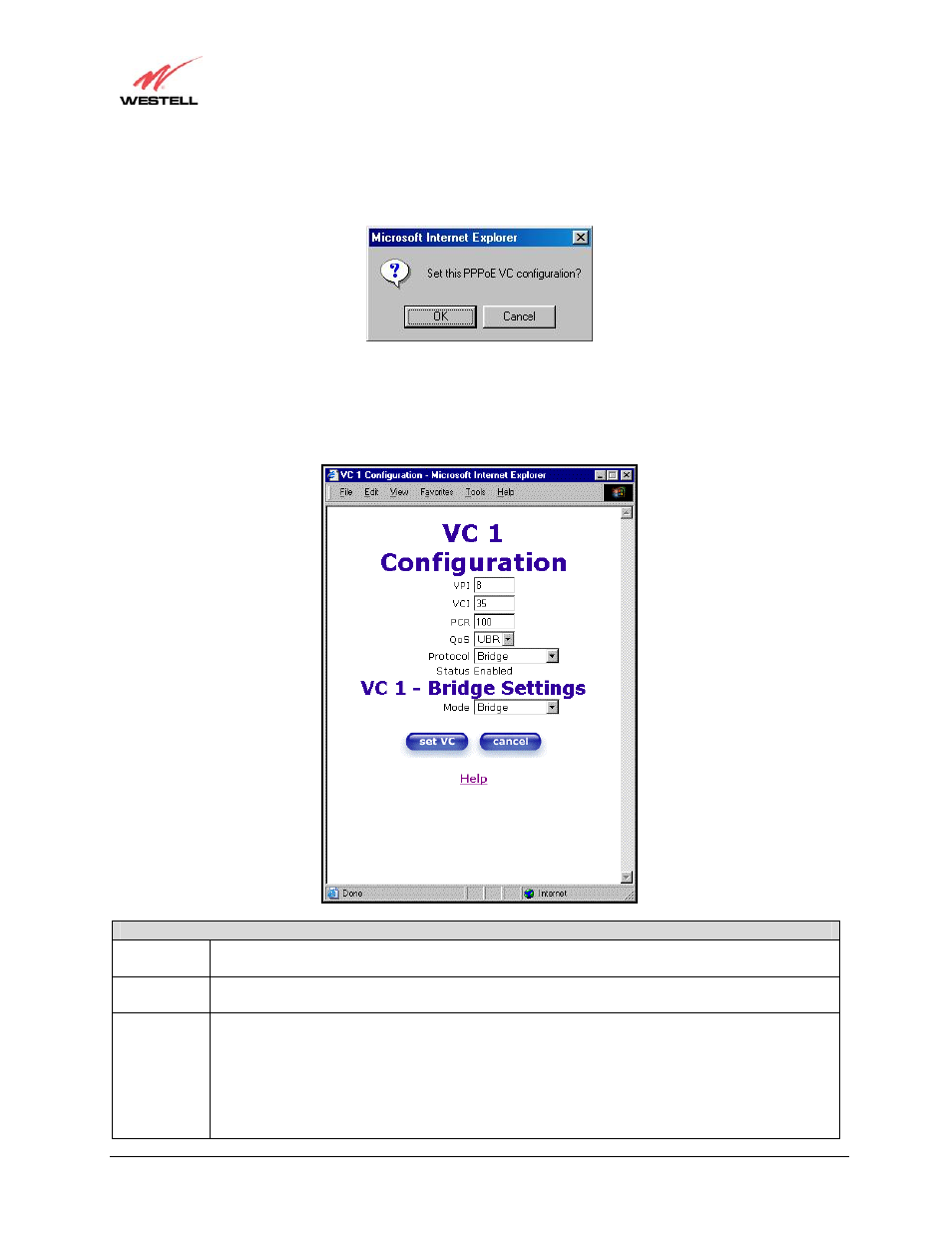

If you clicked the set VC button, the following pop-up screen will appear. Click OK in the pop-up screen, and then
follow the instructions to reset the Router, as explained in section 12.2. If you click Cancel, the new settings will not
take effect.
12.2.3 Configuring the Router’s Protocol for Bridge Mode
To configure the Router’s protocol settings for Bridge mode, select Bridge from the Protocol drop-down menu. The
following screen will appear.
VC 1 Configuration
VPI This setting allows you to change your VPI (Virtual Path Indicator) value for a particular VC,
which is defined by your Service Provider.
VCI This setting allows you to change your VCI (Virtual Channel Indicator) value for a particular VC,
which is defined by your Service Provider.
PCR Factory Default = 100%
Peak Cell Rate (PCR)-The maximum rate at which cells can be transmitted across a virtual circuit,
specified in cells per second and defined by the interval between the transmission of the last bit of
one cell and the first bit of the next.
This value is a percentage of the current data rate.
100 allows this VC to use 100% of the available bandwidth.
