7.2 Establishing a PPP Session
View the Connection Rate at the Connection Overview section in the following Home page. If this status reads No
DSL Connection, check the DSL physical connection, which is explained in section 5 (INSTALLING THE
HARDWARE).
NOTE: If no DSL sync is established, the connect button will not be displayed. To determine if the DSL sync is
established, check the Modem’s DSL LED. If the DSL LED is not solid green, you do not have a DSL link
established. Contact your ISP for details.

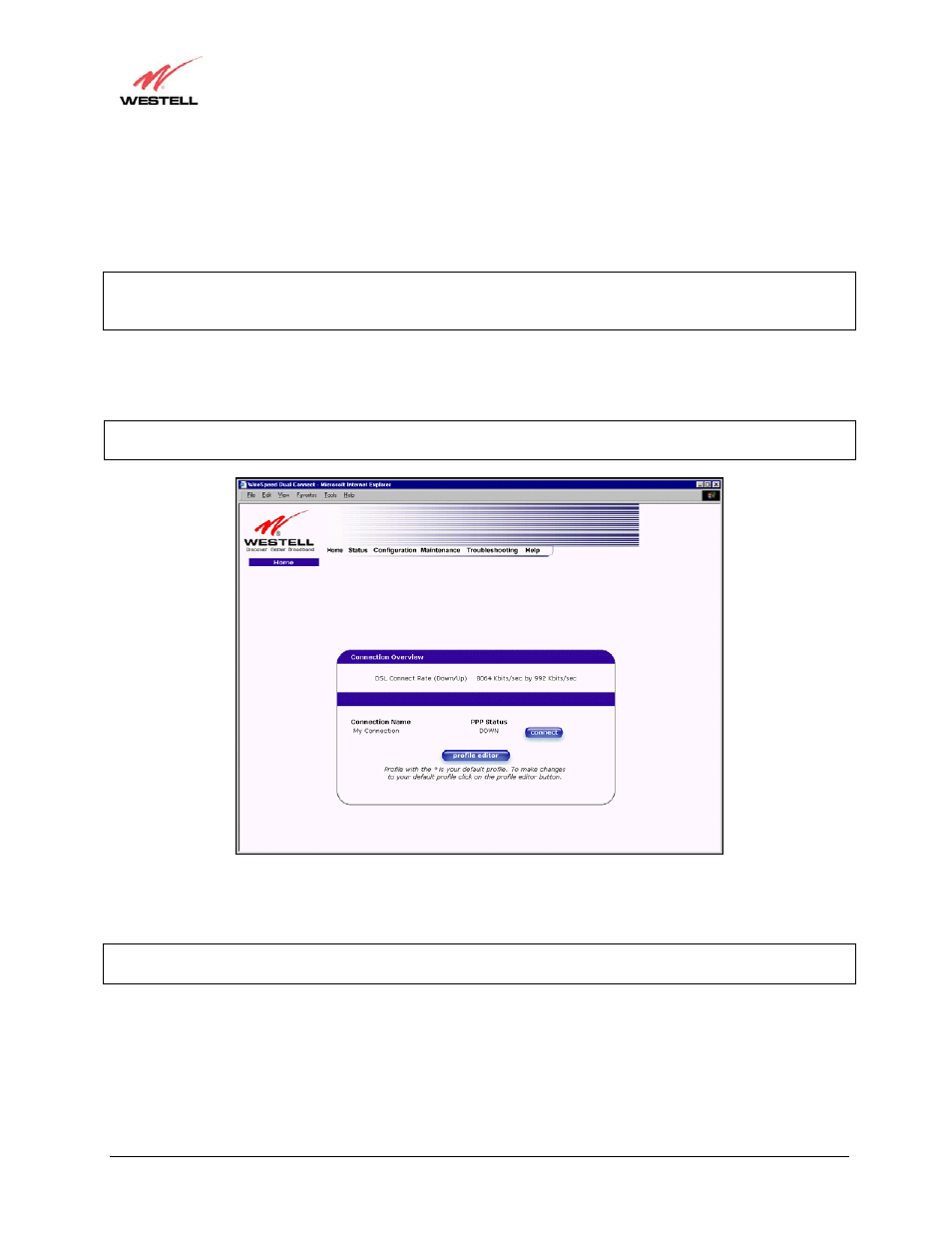

The screen below shows the connection rate with values that indicate a successful SYNC has been established. The
connection rate values represent the transmission speed of your DSL line. (The Modem may take time to report the
values.) Click the connect button to establish a PPP session.
NOTE: When viewing the screens, please note that the actual values might differ from the values displayed in this
User Guide.
If you clicked connect, the following screen will appear briefly. The PPP Status in the Connection Overview screen
allows you to view the state of your ISP connection. When the PPP Status displays Connecting…, this means that
you are establishing a PPP session.
NOTE: The Modem will handle transmission rates up to 8 Mbps. Your actual DSL rates may vary depending on
your Internet service provider.
