030-300233 Rev. A 139 May 2006
User Guide Westell Models (6000, 6100,6110)

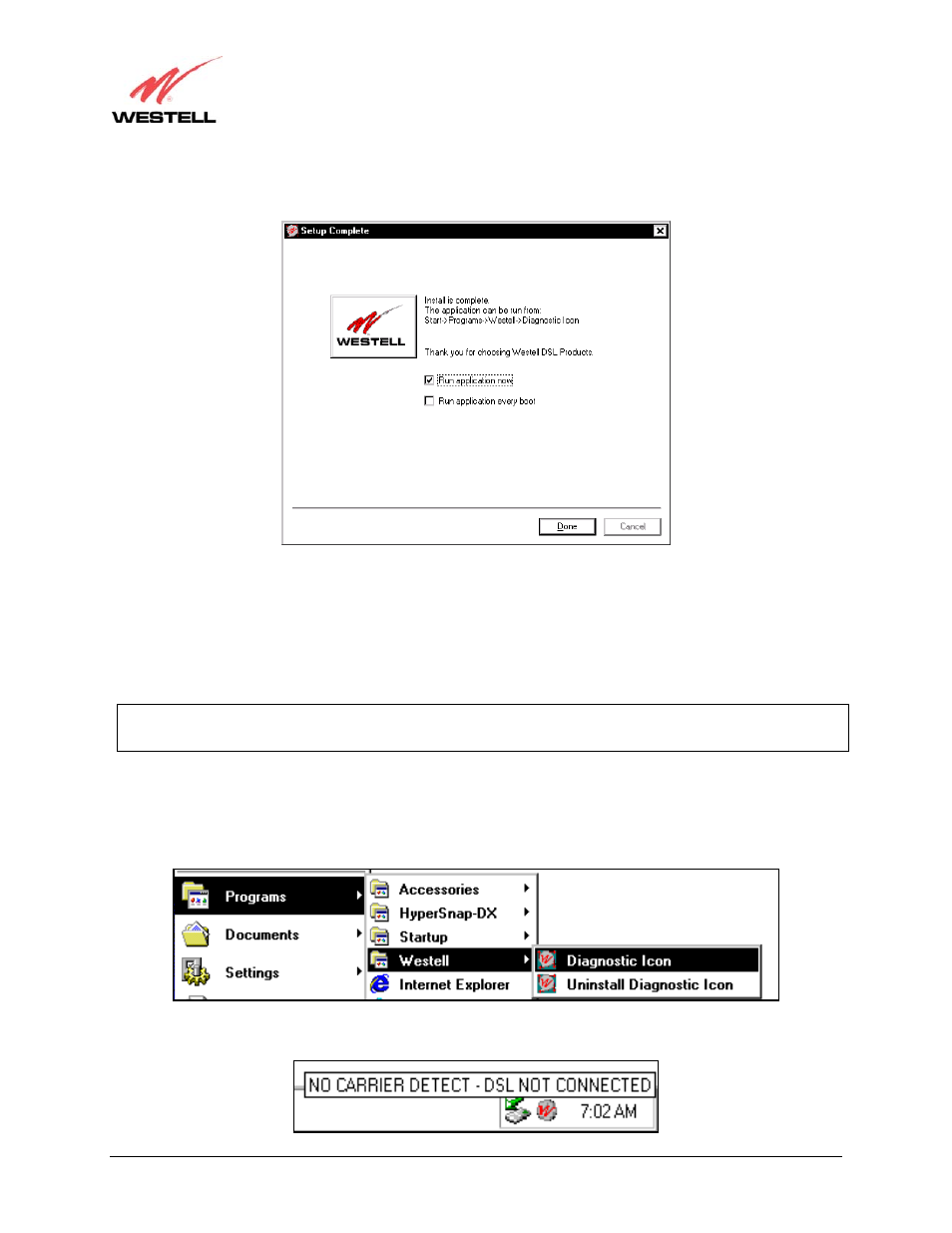

After the diagnostic software has finished loading, the Setup Complete screen will be displayed. Select Run
application now, and then click Done. An icon for the diagnostic features will be placed in your taskbar.
The diagnostic software can affect key settings of your communications software, and should only be run when
instructed by your service provider. For additional details on the diagnostic functions, see the Diagnostic Icon
Information Panels.
Your have completed your modem’s diagnostic software installation. Follow the instructions provided by your
service provider to configure your Westell Modem and browser settings.
NOTE: If your computer already has an Ethernet adapter or NIC installed, you may have to disable the adapter or
set a static IP address in the PC for the modem. Contact your service provider for more details.
Diagnostic Icon Information Panels
From the Start Menu, select Programs > Westell > Diagnostic Icon. The Administration Diagnostic Panel
opens.
Note: When the diagnostic application begins, the system places the following icon in the taskbar.
