11. STATUS
11.1 Connection Summary

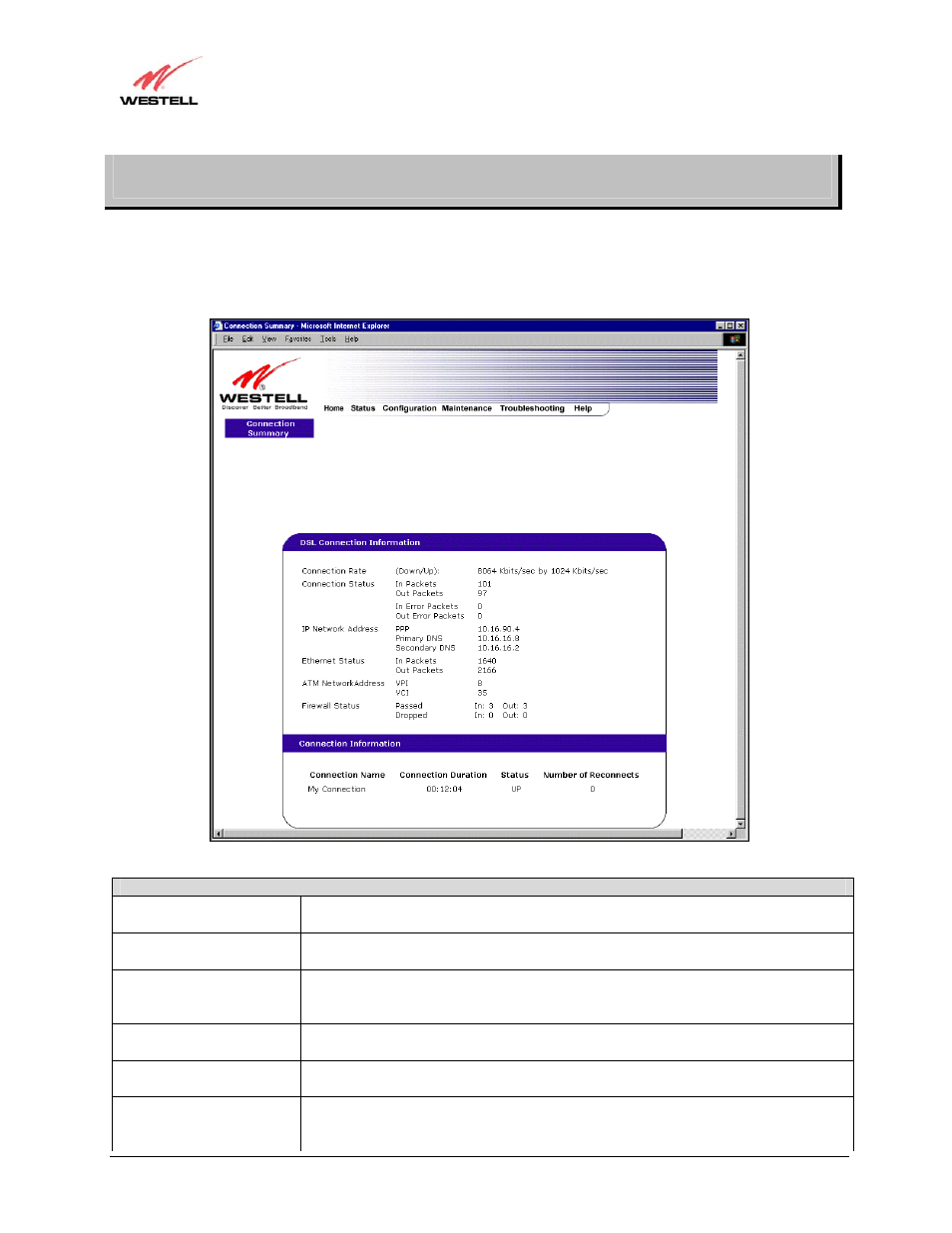

The following screen will be displayed if you select Status > Connection Summary from the main menu.
DSL Connection Information
Connection Rate
This field will let you know if you have a DSL Sync (UP/DOWN) and the DSL rate
at which you are connected.
Connection Status
This field will display how much information was received (IN) or sent (OUT) in
packets.
IP Network Address
PPP = An IP address identifies your device on the Internet
Primary DNS = Provided by your Service Provider
Secondary DNS = Provided by your Service Provider
Ethernet Status
This field will display your Ethernet information that was received (IN) or sent
(OUT) in packets on your Ethernet port.
ATM Network Address
This field will display your VPI and VCI values, which are provided by your Internet
Service Provider.
Firewall Status
This field will display your firewall traffic in packets.
Passed: Monitors information traffic that was successfully received (IN) or
transmitted (OUT) in packets.
NOTE: The actual information displayed in this screen may vary.
