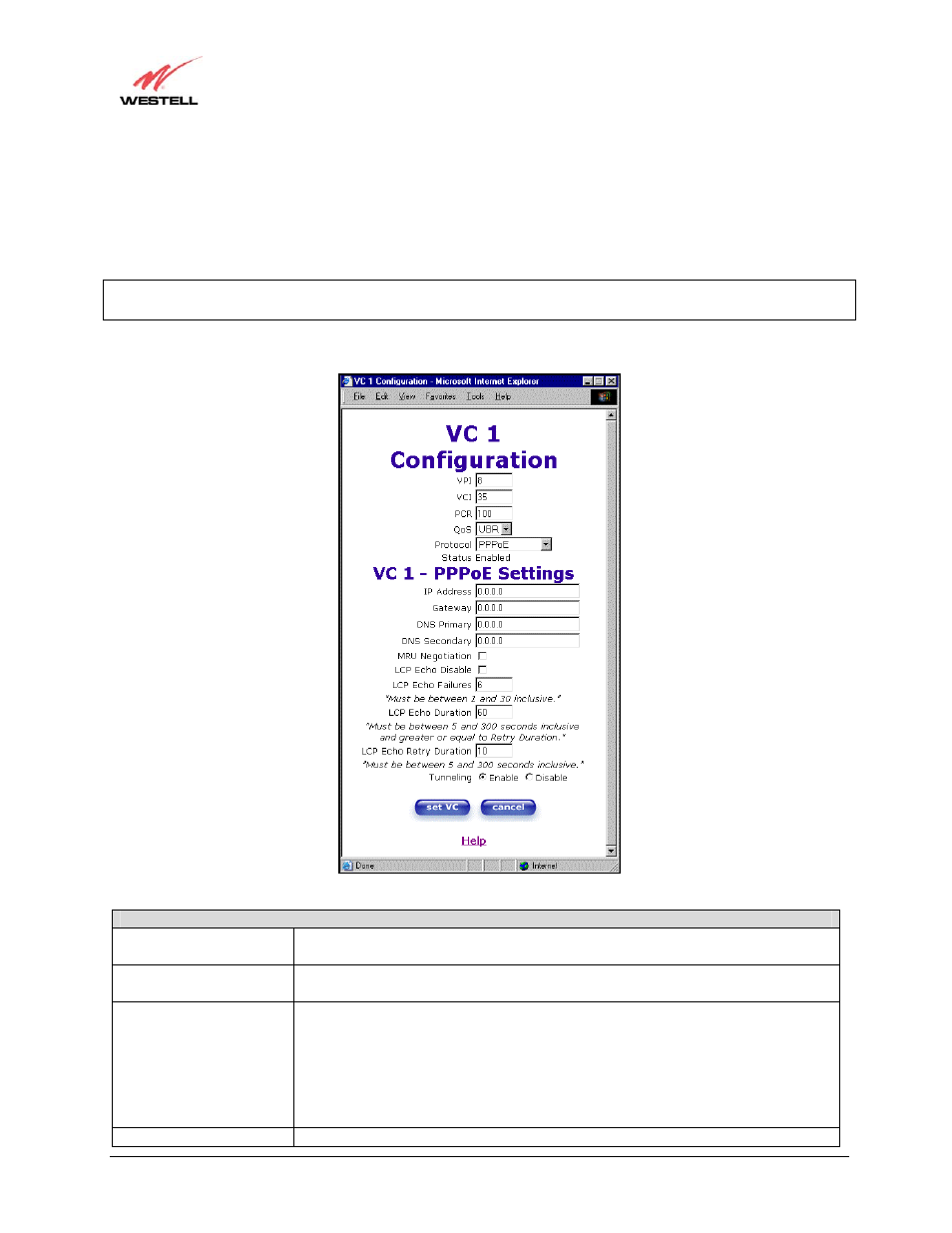

If you clicked edit, the following VC 1 Configuration screen will be displayed. The VC 1 Configuration screen
allows you to edit your virtual connection (VC). A virtual connection identifies a connection through the service
provider’s ATM network to your ISP. Unlike physical hardware connections, virtual connections are defined by data.
NOTE: If you experience any problems, please reset your Router via the external hardware reset button or via the
procedure defined under the Maintenance menu.
If you change any settings in the VC 1 Configuration screen, click the Set VC button to save the settings.
VC 1 Configuration
VPI This setting allows you to change your VPI (Virtual Path Indicator) value for a
particular VC, which is defined by your Service Provider.
VCI This setting allows you to change your VCI (Virtual Channel Indicator) value for a
particular VC, which is defined by your Service Provider.
PCR Factory Default = 100%
Peak Cell Rate (PCR)-The maximum rate at which cells can be transmitted across a
virtual circuit, specified in cells per second and defined by the interval between the
transmission of the last bit of one cell and the first bit of the next.
This value is a percentage of the current data rate.
100 allows this VC to use 100% of the available bandwidth.
80 allows this VC to use 80% of the available bandwidth.
QoS Quality of Service, which is determined by your Service Provider.
