100

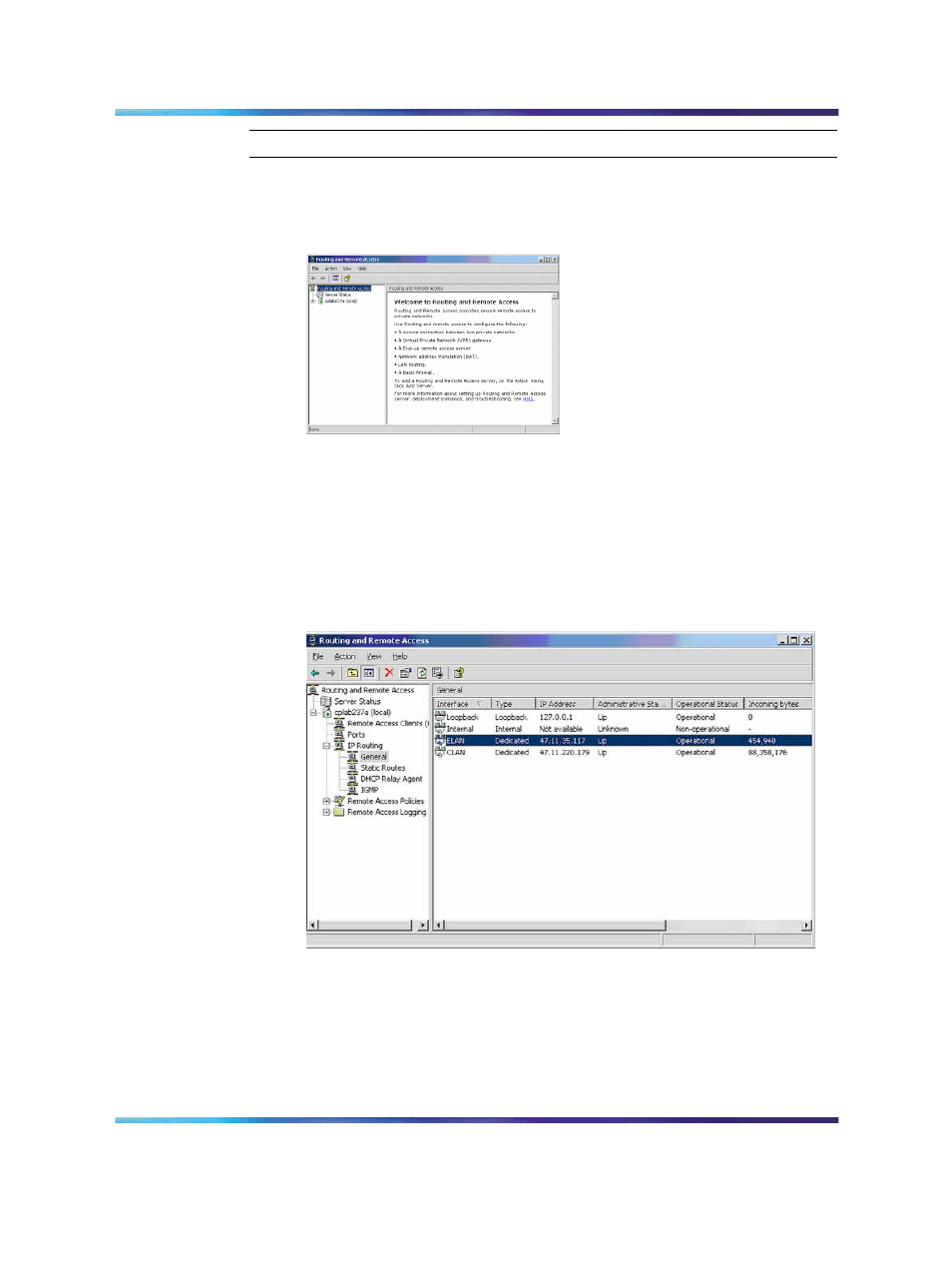

Chapter 5 Routing and remote access troubleshooting

Step

Action

1

Start

Programs

Administrative Tools, and double-click Routing

and Remote Access.

Result: The Routing and Remote Access Window appears.

2

Click the plus sign (+) to the left of the server name in the left pane
to expand the tree.

3

Click General under IP Routing.

Result: The system displays general information associated with IP
Routing in the right pane.

4

Click the ELAN entry to select it.

5

Use the slider at the bottom of the window to scroll to the right and
view additional information.

Nortel CallPilot

Troubleshooting Reference Guide

NN44200-700

01.05

Standard

5.0

26 June 2007

Copyright © 2007, Nortel Networks

.
