Chapter 8 Installing an expansion unit 95
Installation and Maintenance Guide

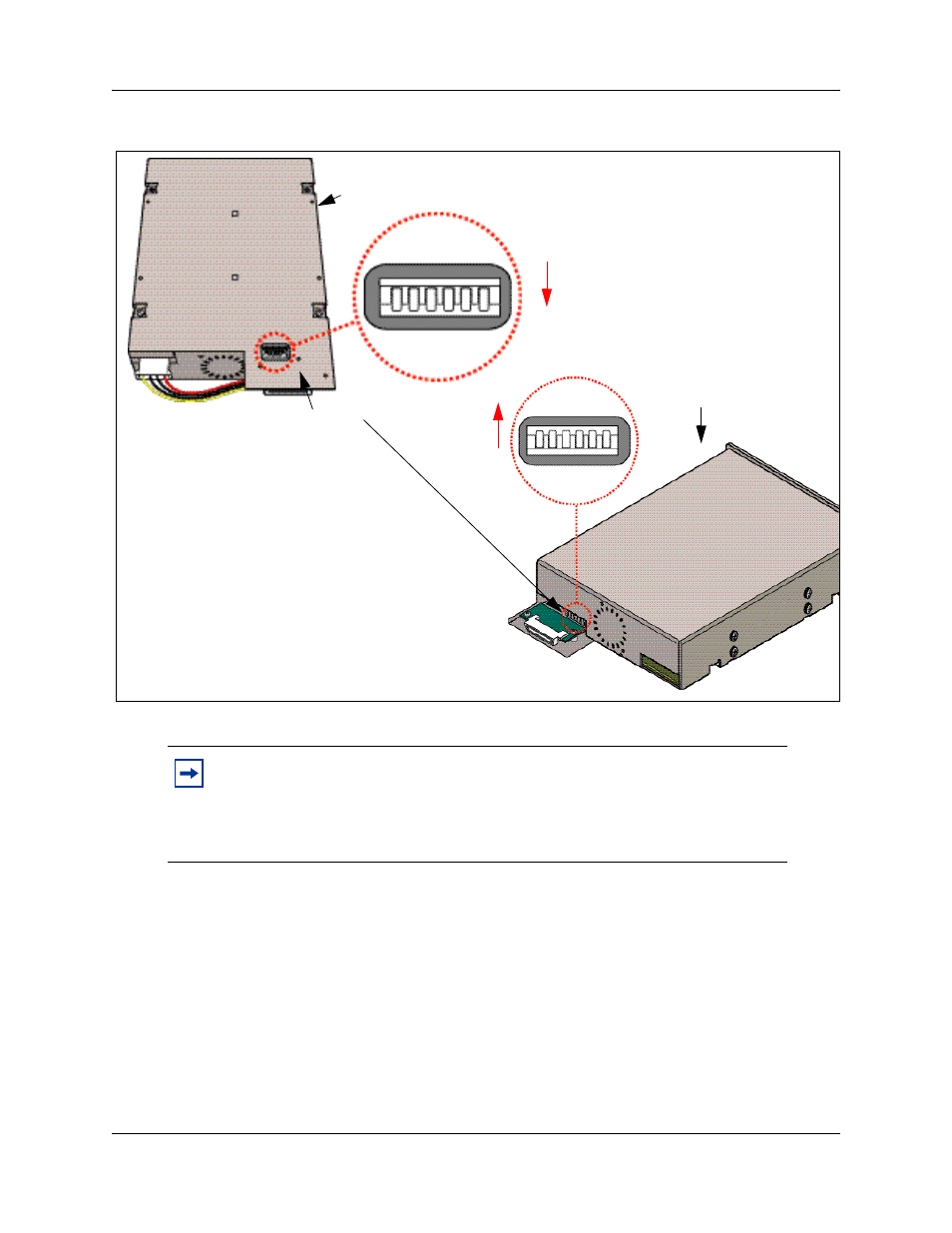

Figure 46 Switches on the media bay module (not applicable for GASM or GATM)
Verify that the dip switches for your MBMs are in the default factory positions.
If you install a DTM, ADID4, ADID8, BRIM, 4x16, DSM16, DSM32, or ASM8, ensure that all
the switches are on, which is the default setting for the MBM switches. After you set the switches,
proceed to
Installing a media bay module in an expansion unit on page 97.
Note: The GASM and GATM MBMs have a dip switch configuration different
from that shown in the figure
Switches on the media bay module (not applicable
for GASM or GATM) on page 95. For more information, see the procedure To set
GASM dip switches on page 96 and the procedure To set GATM dip switches on
page 97.
6 5 4 3 2 1 Off
On
Underside of MBM
dip switches
Back of MBM
1 2 3 4 5 6 On
Off
Rear view of MBM
Top of MBM
