Chapter 24 Replacing an internal component 193
Installation and Maintenance Guide
To remove the hard disk
1 Attach one end of a grounding strap to your wrist and the other end to a grounded metal
surface.
2 Remove the two screws that attach the hard disk assembly to the main unit. See the figure Hard
disk and bracket installation on page 193.

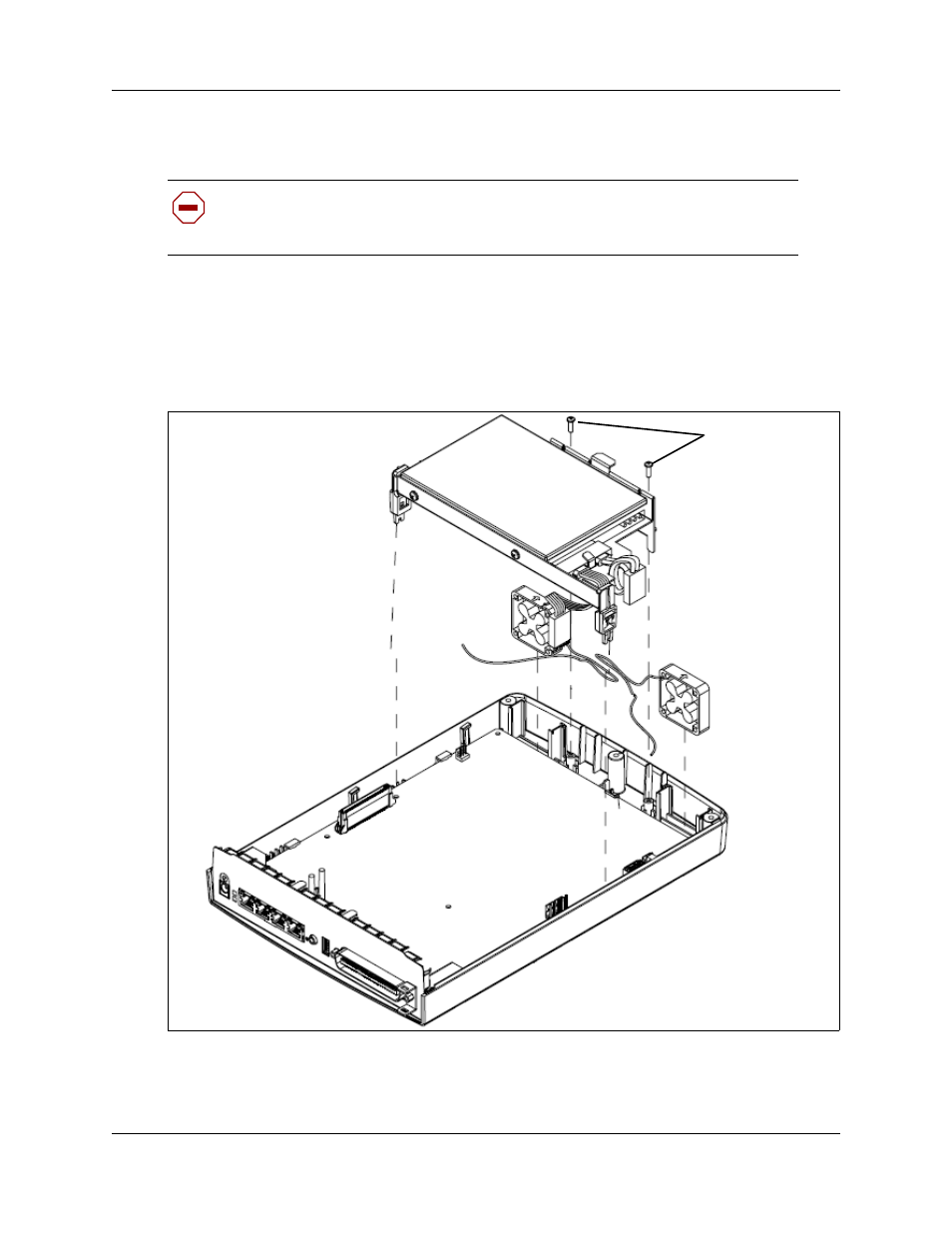

Figure 80 Hard disk and bracket installation
3 Lift the hard disk and hard disk bracket from the main unit and place them on a flat, clean,
static-free surface.
Caution: Do not use an electric or magnetized screwdriver near the hard disk. You
can lose the information stored on the disk. Shock can damage the hard disk. Do not
drop or hit the hard disk.
Fan cable cutouts
Fan cable clips
Remove these screws
