To insert the new hard disk
1 Attach one end of a grounding strap to your wrist and the other end to a grounded metal
surface.
2 Connect the hard disk cable and power cable to the hard disk connector. See the figure Hard
disk and bracket assembly on page 196.

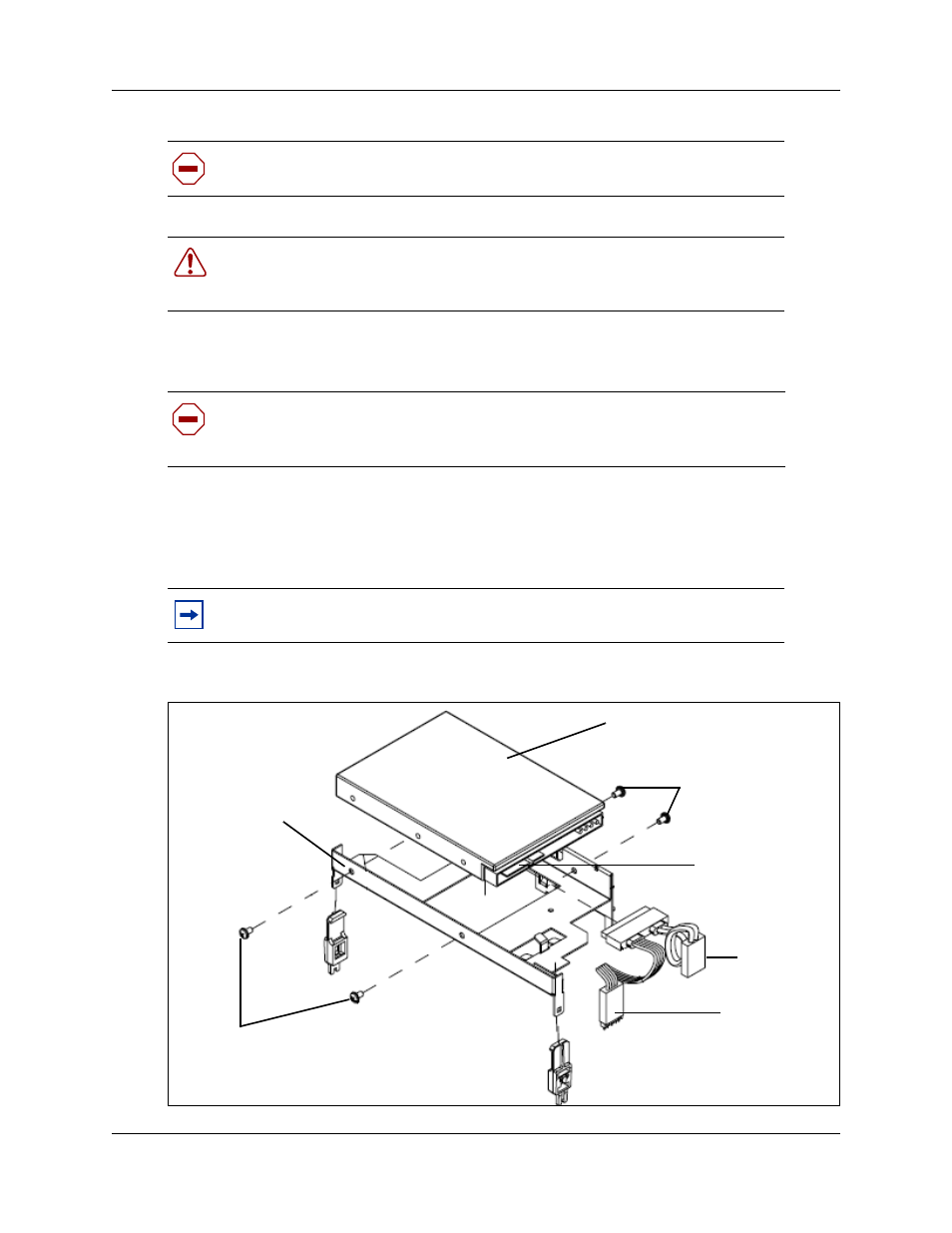

Figure 83 Hard disk and bracket assembly
Caution: Use only a Nortel-approved replacement part. Contact your account
representative for the current list of approved replacement parts.
Warning: Protect the hardware components against damage from electrostatic
discharge. Always wear a ground wriststrap before you handle components.
Always place the components in static-free container.
Caution: Do not use an electric or magnetized screwdriver near the hard disk. You
can lose the information stored on the disk. Shock can damage the hard disk. Do
not drop or hit the hard disk.
Note: If the cables do not insert properly, check that the notch on the hard disk
connector is aligned with the corresponding notch on the cable.
Hard disk bracket
Hard disk
Hard disk cable
Power cable
Hard disk/power
cable connector
Hard disk bracket screws
Hard disk bracket screws
