Chapter 3 Viewing the BCM50 system LEDs 61
Installation and Maintenance Guide
Chapter 3
Viewing the BCM50 system LEDs
This section describes the BCM50 system LEDs.
For information about the BCM50 system LEDs:
• System status LEDs on page 61
• LAN port LEDs on page 62
• ADSL router LEDs (BCM50a and BCM50ba only) on page 64
• Ethernet router LEDs (BCM50e and BCM50be only) on page 65
• BRI port LEDs on main unit (BRI series only) on page 66
• Media bay module LEDs (expansion units only) on page 66
• DTM LEDs on page 67
• BRIM LEDs on page 68
System status LEDs
The two system status LEDs on the BCM50 main units (BCM50, BCM50a, BCM50e, BCM50b,
BCM50ba, and BCM50be) show the current state of the BCM50 system.
You can view the system status LEDs on the faceplate and on the top of the main unit. See the
figure
Location of system status LEDs on a main unit on page 61. The bottom LED is the power
LED, and the top LED is the status LED. Under normal operating conditions, both LEDs are solid
green.

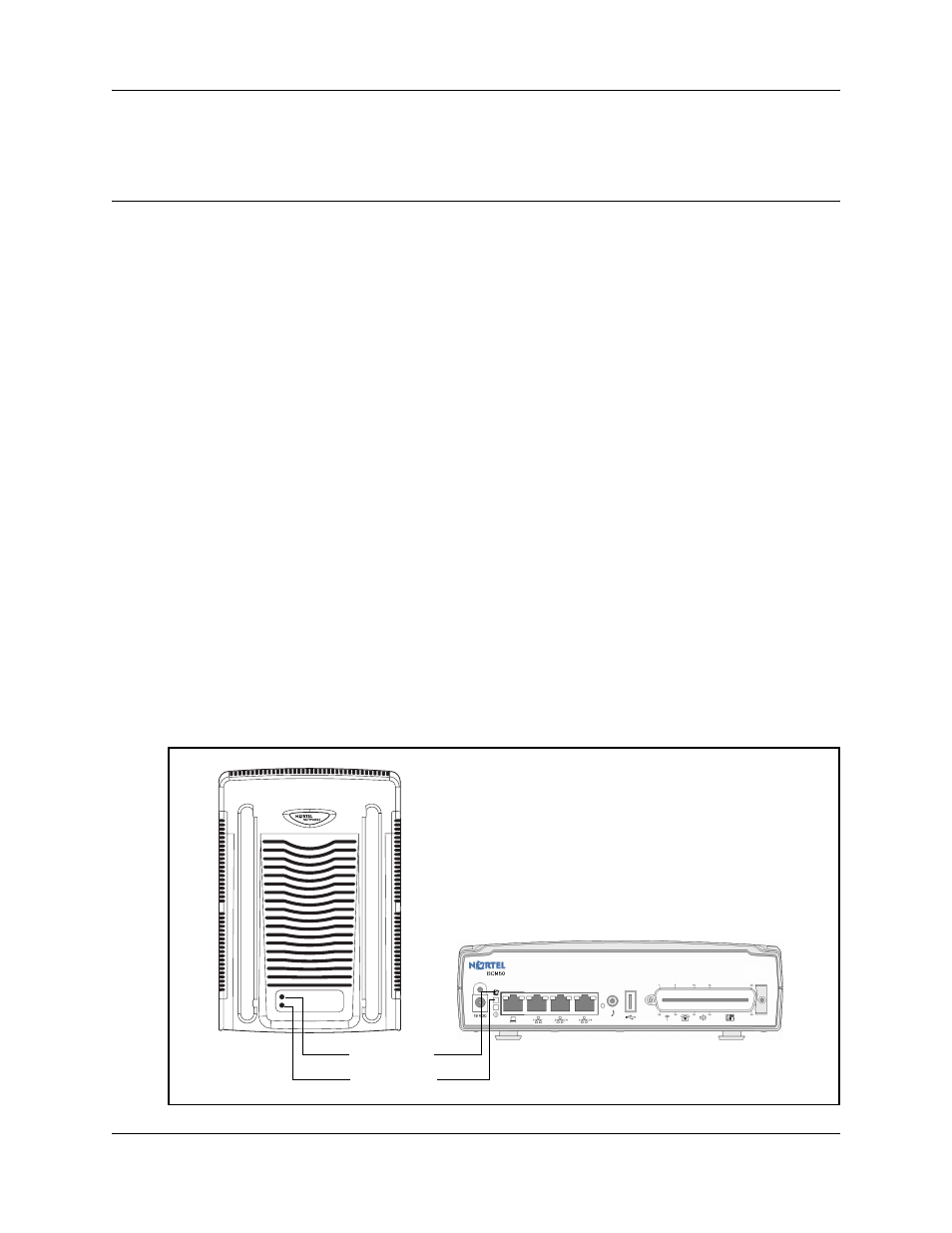

Figure 25 Location of system status LEDs on a main unit
Power LED
Status LED
