Chapter 3 Viewing the BCM50 system LEDs
65
Installation and Maintenance Guide
Ethernet router LEDs (BCM50e and BCM50be only)
The three Ethernet router LEDs on the BCM50e and BCM50be main units monitor the router
status and the WAN port. The figure
Ethernet router LEDs on the BCM50e and BCM50be main
on page 65 shows the location of the three Ethernet router LEDs.

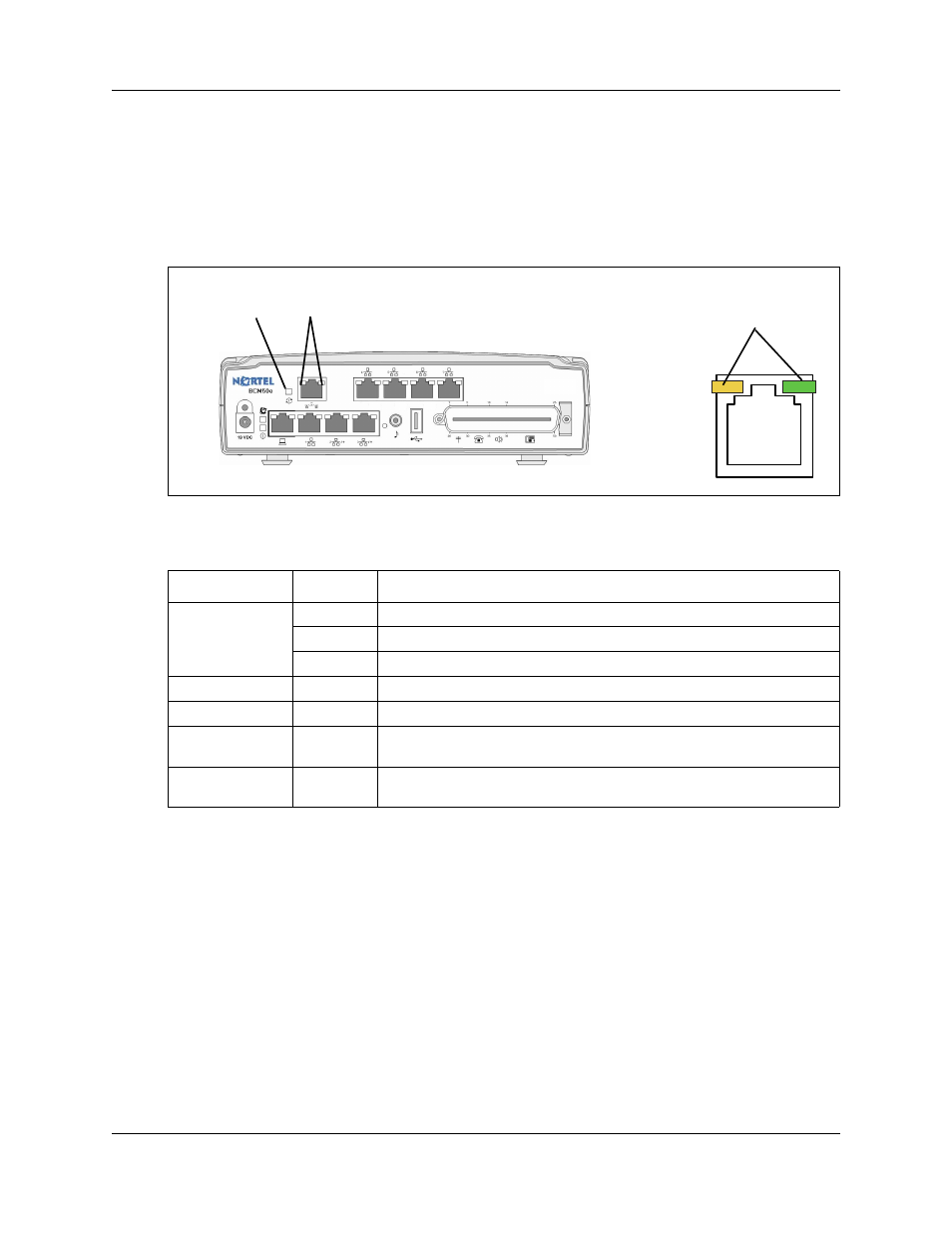

Figure 28 Ethernet router LEDs on the BCM50e and BCM50be main units (BCM50e shown)
The table
on page 65 describes the possible Ethernet router LED states.
Table 12 LAN port LED indicators
LED
Status
Description
Router status
On
The router card is functioning properly.
Off
The router card is not ready or malfunctioned.
Flashing
The router card is rebooting.
WAN port yellow
On
The WAN port is operating at 10 Mb/s.
WAN port green
On
The WAN port is operating at 100 Mb/s.
Any WAN port
LED
Flashing
The WAN port is sending or receiving network data. The frequency of the
flashes increases with increased traffic.
Both WAN port
LEDs
Off
No connection.
Router
status
WAN port
LEDs
WAN port LEDs
