Chapter 9 Connecting the cables to the BCM50 system
NN40020-302
The music source jack is on the front of the main unit. If you use the music source jack to connect
the music source, do not connect a music source to the music source pair on the RJ-21 telephony
connector.
To connect the music source using the music source jack
1
Connect the miniature jack of the music source output (3.5 mm mono audio jack) to the music
source input on the BCM50 main unit. See the figure

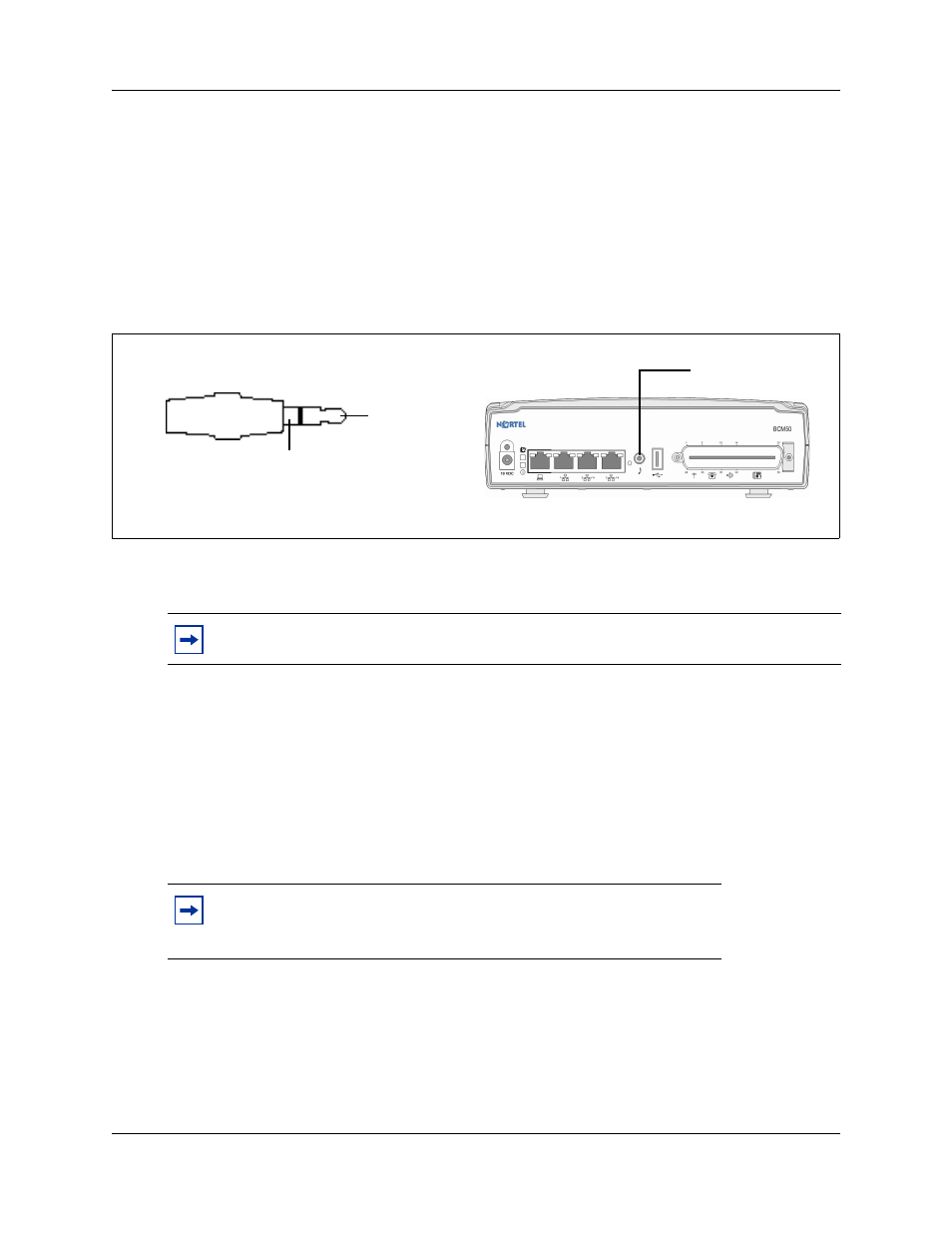

Figure 52 Music source jack
2
Adjust the volume of the music source to an appropriate level by placing a call and putting it
on hold, and then adjust the volume at the music source.
3
Select the appropriate option for your system:
•
If you add more auxiliary equipment, see
Connecting an external paging system
Connecting an auxiliary ringer
•
When you finish adding auxiliary equipment, proceed to
To connect the music source using the RJ-21 telephony
connector
1
Connect the music source output to the music source input on the RJ-21 telephony connector.
To determine which pair of wires to use for the music source input, see
2
Adjust the volume of the music source to an appropriate level by placing a call and putting it
on hold, and then adjust the volume at the music source.
Tip: You can adjust the background music volume at every telephone.
Note: If you use the RJ-21 telephony connector to connect the music
source, do not connect a music source to the music source jack on the
front of the main unit.
Tip
Sleeve
Music jack
Tip: Music signal
Ring: No connection
Sleeve: Ground
Music source
input
BCM50
(3.5 mm mono audio jack)
