NEC EXPRESS5800/100 SERIES N8100-1635F User Manual
Page 43
Setting Up Your Modular Server 3-9
5.
Align the frame of the modular server with the guide rail on the Module Enclosure. Insert
the Modular Server into the halfway of the Module Enclosure (approximately 20 cm)
slowly and carefully.
6.
Fully release the lock lever, push the frame of the modular server, and insert the Modular
Server into the Module Enclosure slowly and carefully to the end.
The card edge of the Modular Server is connected with the connector in the Module
Enclosure.

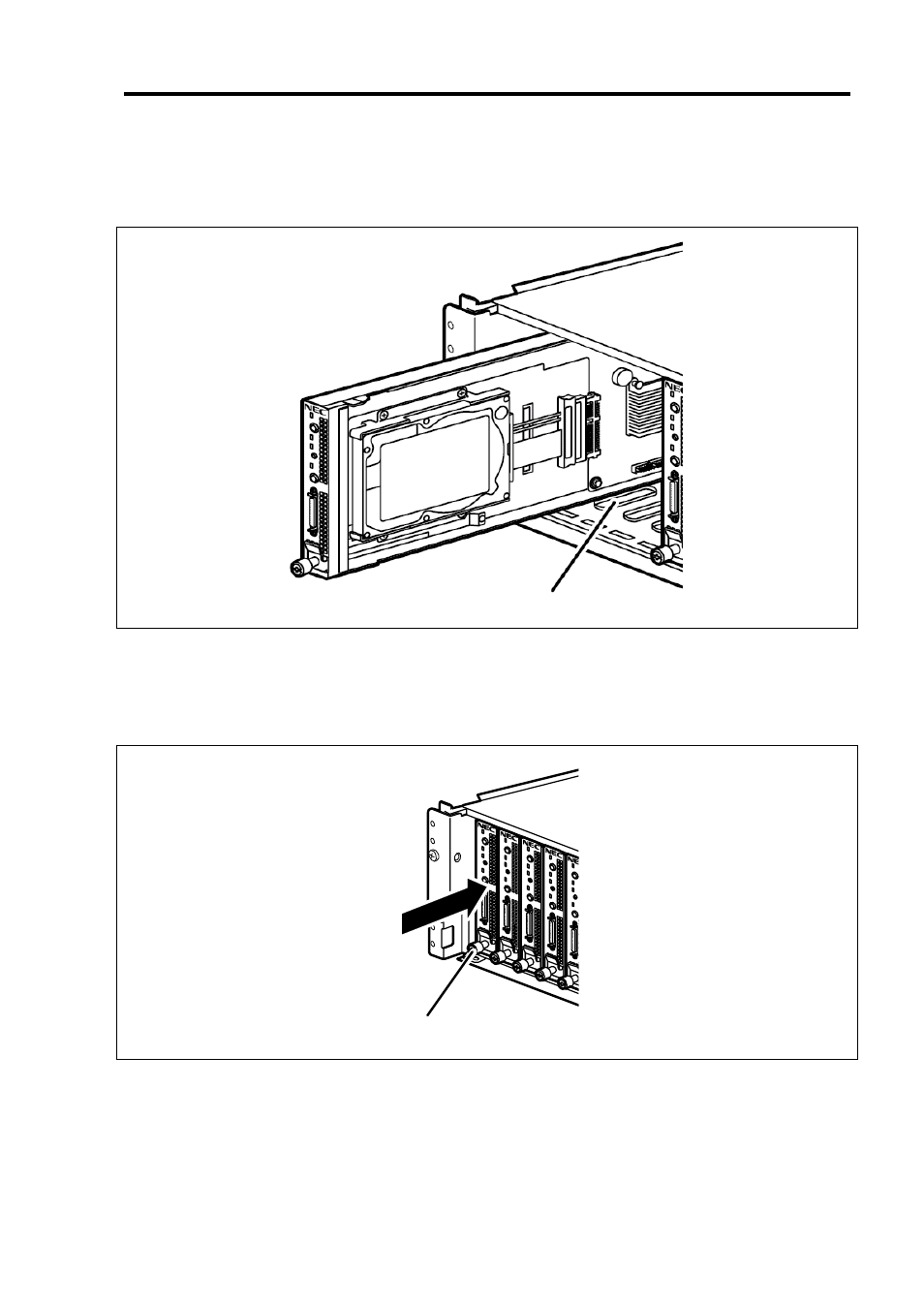

Guide rail
Lock lever
