3-4 Setting Up Your Modular Server
BEFORE INSTALLING MODULAR SERVER
Be sure to check the MAC addresses before installing a modular server in the Module Enclosure.
Check of MAC Address
The MAC addresses indicate the addresses specific for the network. It is expressed by 12-digit
alphanumeric. Each of the modular server has two LAN MAC addresses and one BMC MAC
address. Check the MAC addresses before installing a modular server in the Module Enclosure.

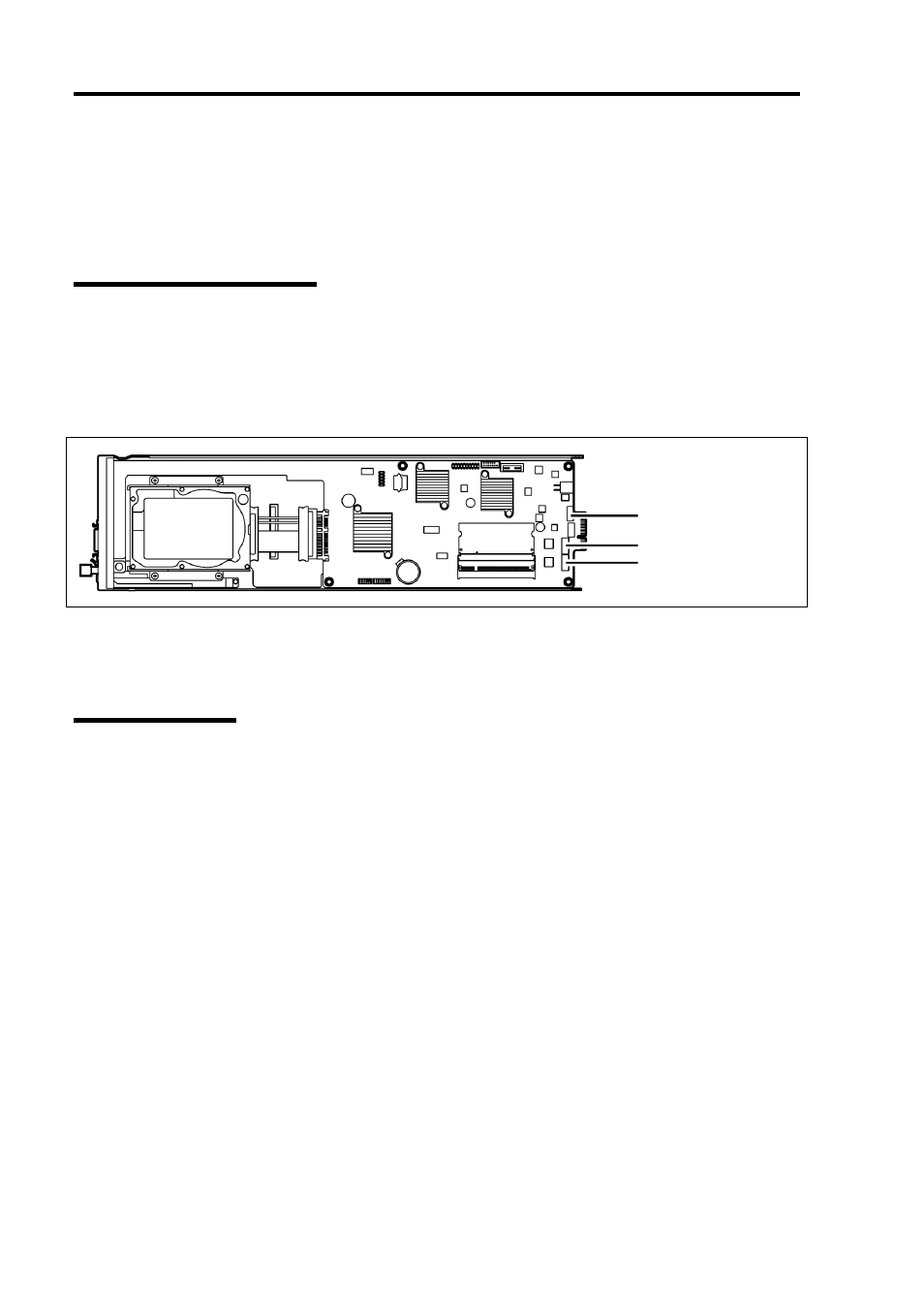

The MAC addresses are indicated in the area as shown in the figure below.
The LAN MAC addresses can be checked from the proper OS command. The BMC MAC address
can be checked from the BIOS SETUP utility.
Installing DIMM
Install DIMMs according to Chapter 8.
Label indicating BMC
MAC address
Label indicating MAC
addresses of LAN port 1
Label indicating MAC
addresses of LAN port 2
