Polycom KIRK 14117800 - Manual (Page 204)

204 Troubleshooting
14117800, Ed.2.6
6 Select the file in question, and then click Open.
The following dialog box appears.

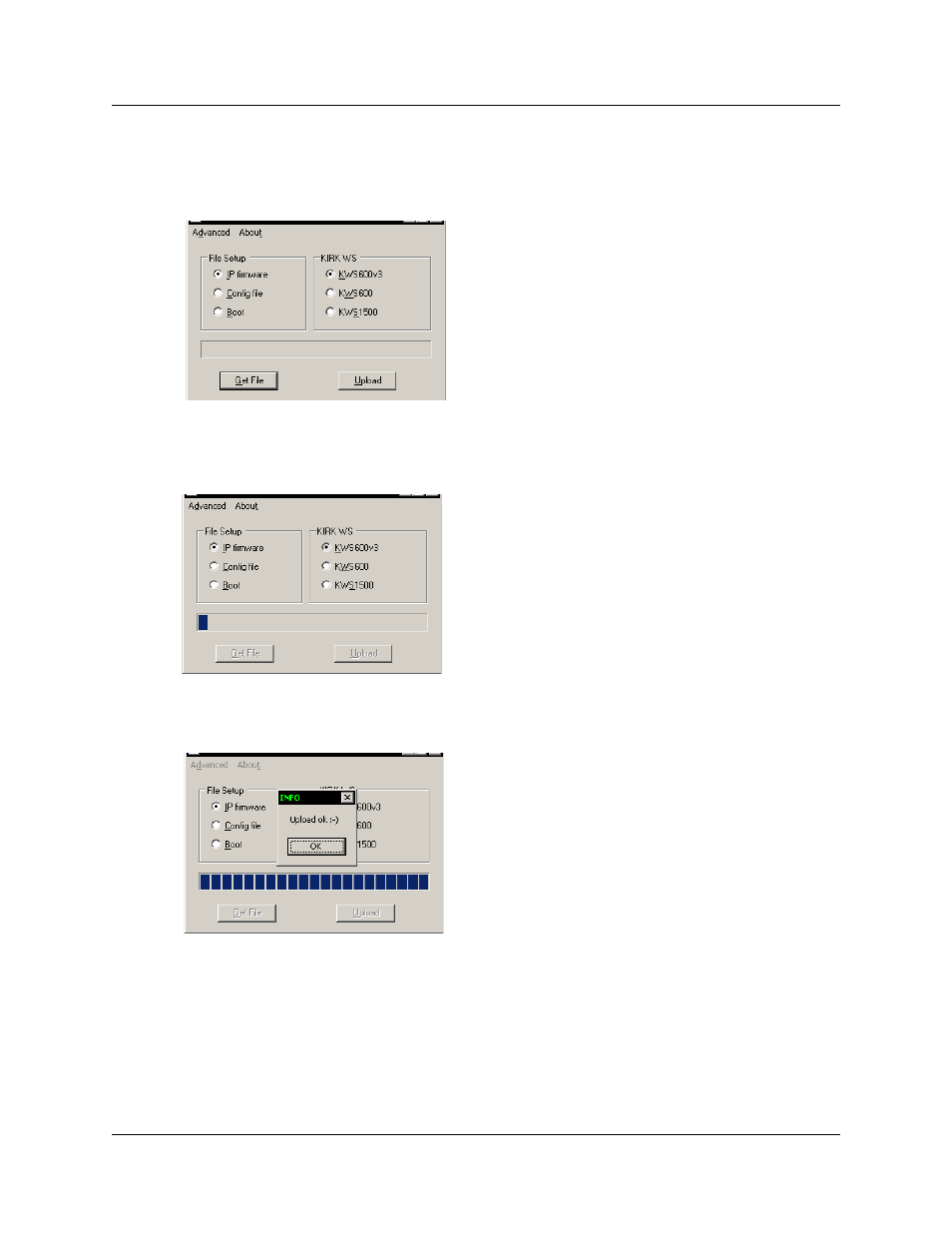

Figure 123 GWLOAD: Upload dialog box
7
Click Upload.
The following dialog box appears.
Figure 124 GWLOAD: Upload in progress dialog box
8
When uploading has finished, the following dialog box appears.
Figure 125 GWLOAD: Uploading finished dialog box
Click OK.
9 When finished uploading the new firmware, it is necessary to reset the KWS600v3 by
pressing the Reset button (short press) on the faceplate of the KWS600v3. This will
restart the KWS600v3.
