Bar Codes

5–56

Code UCC–128 Example

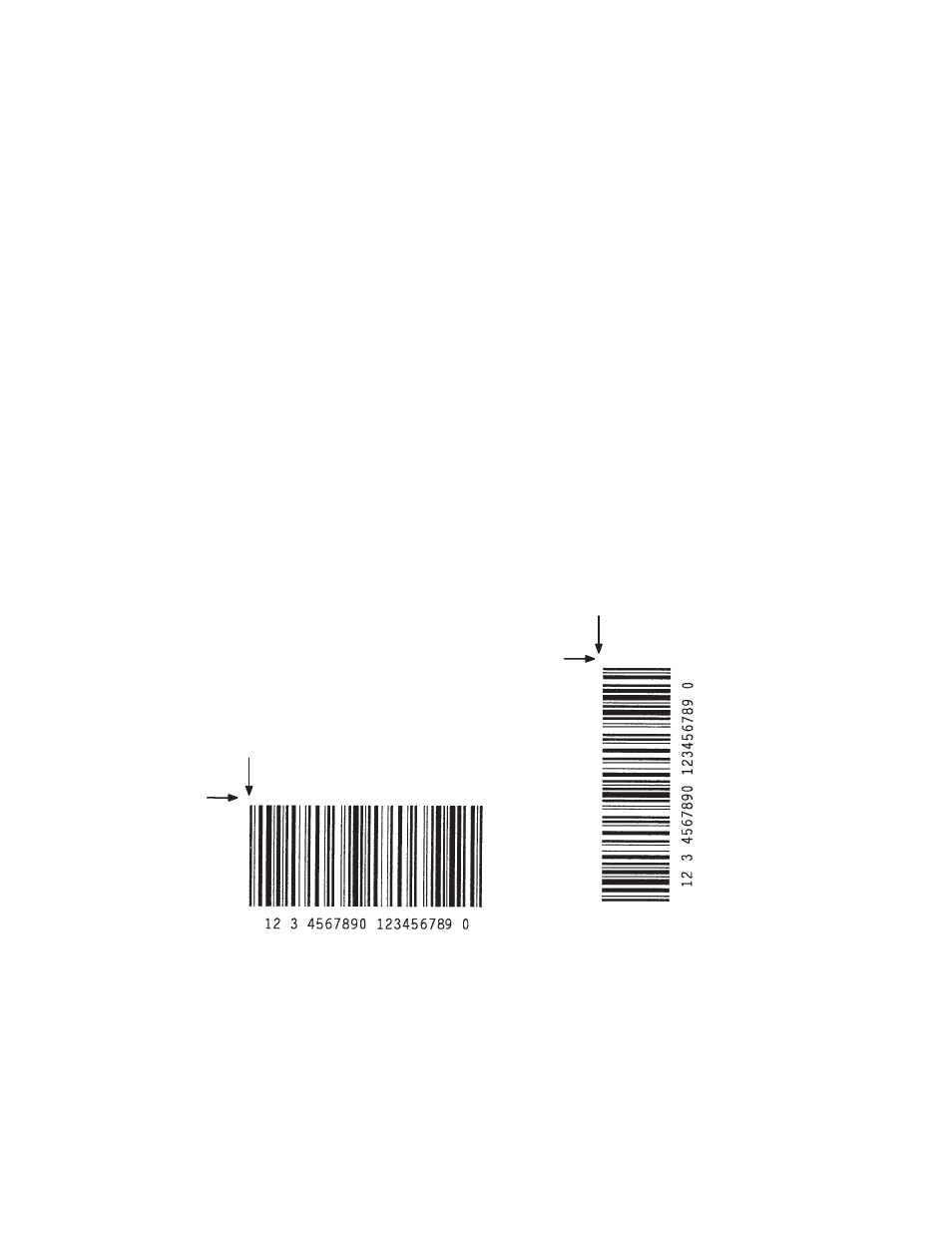

Figure 5–9 illustrates a horizontal and vertical Code UCC–128 bar code

generated by the following program:

~CREATE;UCC–128

(Enter Create Form Mode)

BARCODE

(Bar Code command)

UCC–128;DARK;35;15

(Dark Code UCC–128 at SR 35, SC 15)

*1234567890123456789*

(

Data Field)

PDF

(Printable Data Field)

STOP

(Ends Bar Code command)

BARCODE

(New Bar Code command)

UCC–128;VSCAN;H12;DARK;27;50

(Vert. Dark UCC–128, H 1.2 at SR 27, SC 50)

*1234567890123456789*

(Data Field)

PDF

(Printable Data Field)

STOP

(Ends Bar Code command)

END

(Terminates Create Form Mode)

~EXECUTE;UCC–128;1

(Execute the form, form count of 1)

CODEUCC128.ex

Note: When using the PDF (printable data field)
parameter, 13 cpi is the only option available.

SR 35

SC 15

SR 27

SC 50

Figure 5–9. Sample Code UCC-128 Bar Codes
