Inputs, Relay Outputs, and Power Status
Rev 3.0B Feb.08 56
Digital Inputs
Connect a wiring lead to a digital input (DIN) at 9, 11, 20, or
22, and the nearest ground at 8, 10, 19, or 21, as applicable.
Caution: Never apply voltage to the Digital inputs. The inputs can
only be switched open or closed to ground.
Relay Outputs
Connect the circuit leads to one of the two relay pairs at 6 and
7 or at 17 and 18.
Monitoring and Setting the I/O
You can monitor the status of both the digital and analog
inputs using AceManager or AT Commands and also with
special reports sent using RAP. In AceManager, select the I/O
group.

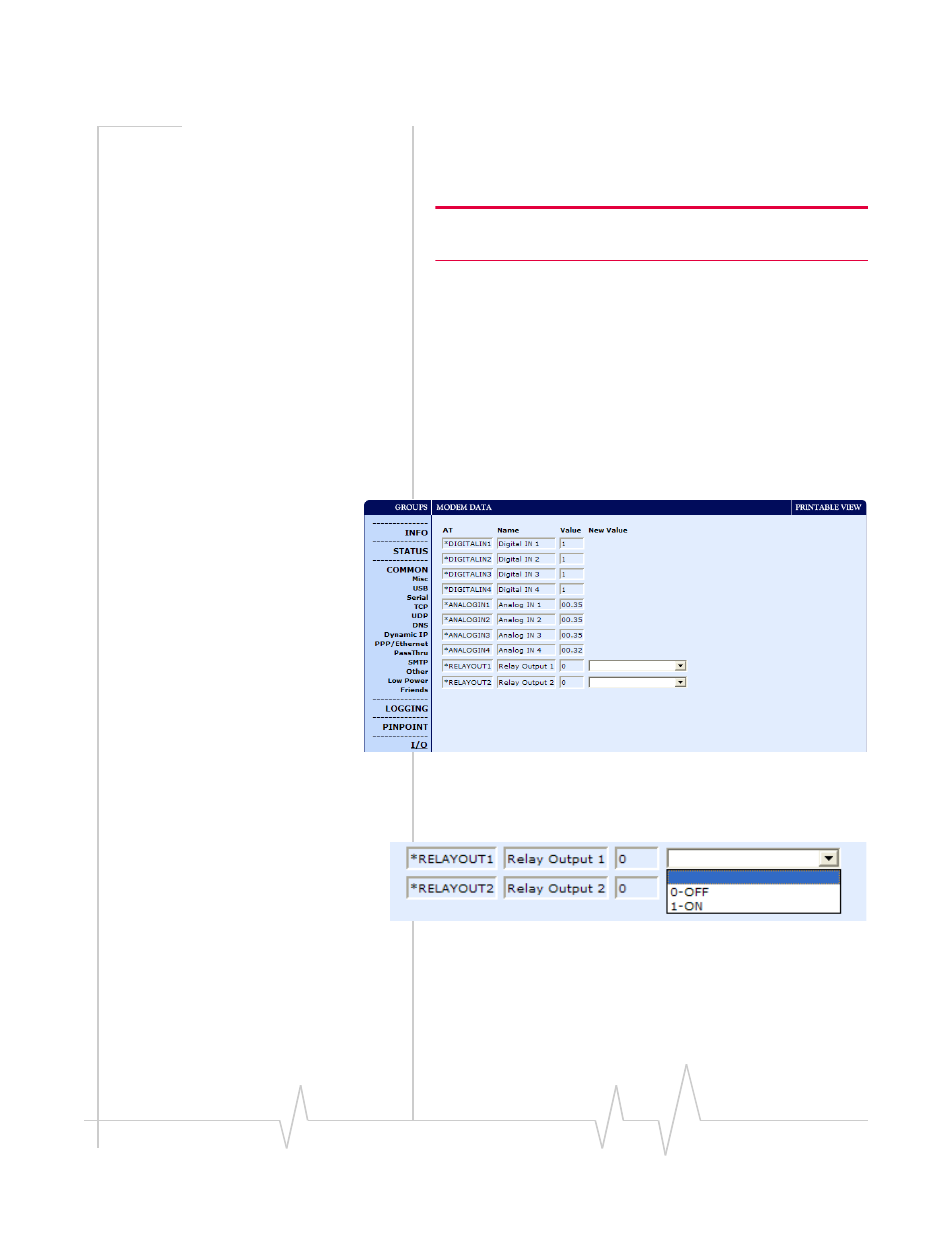

Figure 7-6: AceManager : I/O
You can monitor the status of the relays or set them using
AceManager, I/O group, or AT Commands.
Figure 7-7: AceManager : I/O - *RELAYOUTn
