4: Hardware Installation of the
PinPoint X
•
•
•
•
Your PinPoint X should be mounted in a position that allows
easy access for the cables so they are not bent, constricted, in
close proximity to high amperage, or exposed to extreme
temperatures. The LEDs on the front panel should be visible
for ease of operational verification. You should ensure that
there is adequate airflow around the modem but that it is kept
free from direct exposure to the elements, such as sun, rain,
dust, etc.
In a mobile location, such as a car or truck, ensure the location
is secure both against abrupt movements of the vehicle and
from other items coming into contact with the modem.
Caution: The PinPoint X is in a hardened case and designed for use
in industrial and extreme environments. However, unless you are
using cables expressly designed for such environments, they can fail
if exposed to the same conditions the PinPoint X can withstand.

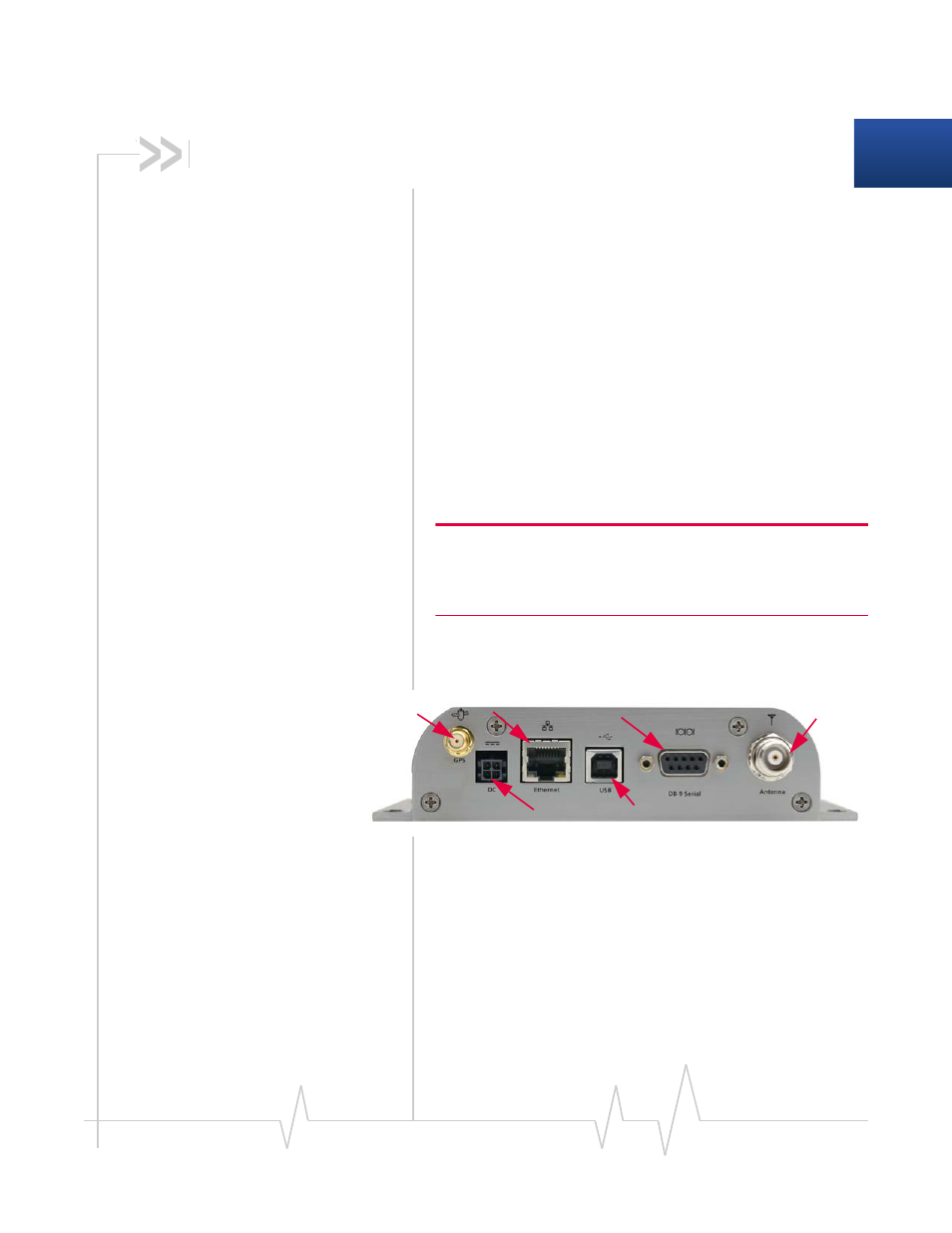

Figure 4-1: PinPoint X Connectors
Antennas selected should not exceed a maximum gain of 5 dBi
under standard installation configuration. In more complex
installations (such as those requiring long lengths of cable and/
or multiple connections), it’s imperative that the installer
follow maximum dBi gain guidelines in accordance with the
Primary Cellular
Power
GPS
Ethernet
Serial
USB
