CHAPTER 4 PORT FUNCTIONS
CHAPTER 4 PORT FUNCTIONS
4.1 Port Functions
The
µ
PD78083 Subseries units incorporate an input port and thirty-two input/output ports. Figure 4-1 shows the
port configuration. Every port is capable of 1-bit and 8-bit manipulations and can carry out considerably varied control
operations. Besides port functions, the ports can also serve as on-chip hardware input/output pins.

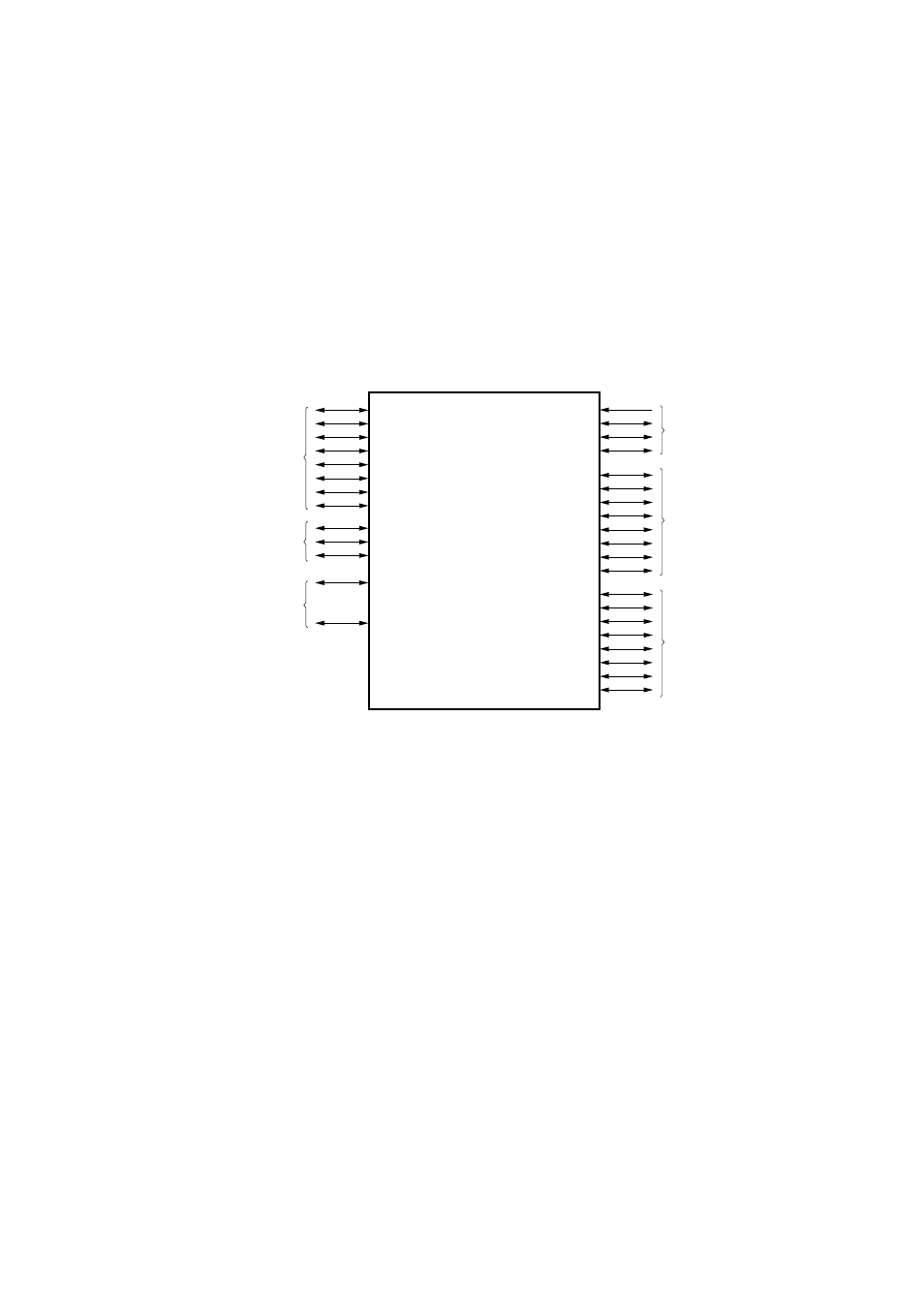

Figure 4-1. Port Types
Port 0
Port 7
Port 1
P00
P70
P72
P10
P03
P17
Port 10
Port 3
P100
P101
P30
P37
Port 5
P50
P57
