112
CHAPTER 8 CLOCK OUTPUT CONTROL CIRCUIT
8.2 Clock Output Control Circuit Configuration
The clock output control circuit consists of the following hardware.
Table 8-1. Clock Output Control Circuit Configuration
Item Configuration
Timer clock select register 0 (TCL0)
Port mode register 3 (PM3)

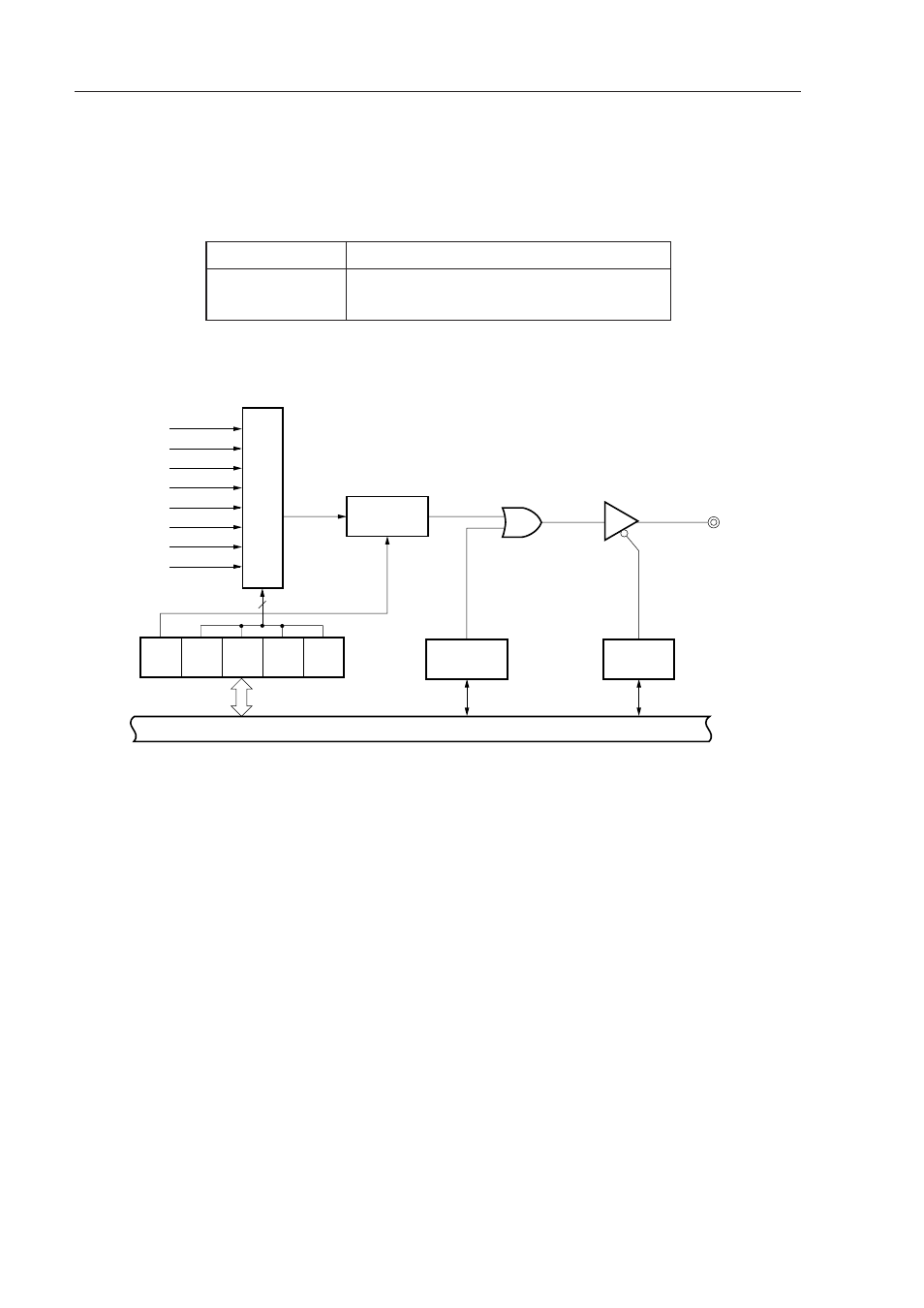

Figure 8-2. Clock Output Control Circuit Block Diagram
Control register
Internal Bus
f XX
f
XX
/2
f
XX
/2 2
f XX /2 3
f XX /2 4
f
XX
/2 5
f
XX
/2 6
f XX /2 7
CLOE TCL03 TCL02 TCL01 TCL00
P35
Output Latch
Synchronizing
Circuit
4
PM35
Selector
Timer Clock Select Register 0 Port Mode Register 3
PCL /P35
