189
CHAPTER 12 INTERRUPT FUNCTION
Main Processing INTxx
Servicing INTyy
Servicing
INTxx
(PR=0)
1 Instruction
Execution
IE=0
INTyy
(PR=1)
EI IE=0
EI
RETI
RETI
Main Processing
EI
INTxx
(PR=1) INTyy
(PR=0)
IE=0
EI
RETI
INTxx
Servicing
INTzz
(PR=0)
IE=0
EI
RETI
INTyy
Servicing
IE=0
RETI
INTzz
Servicing

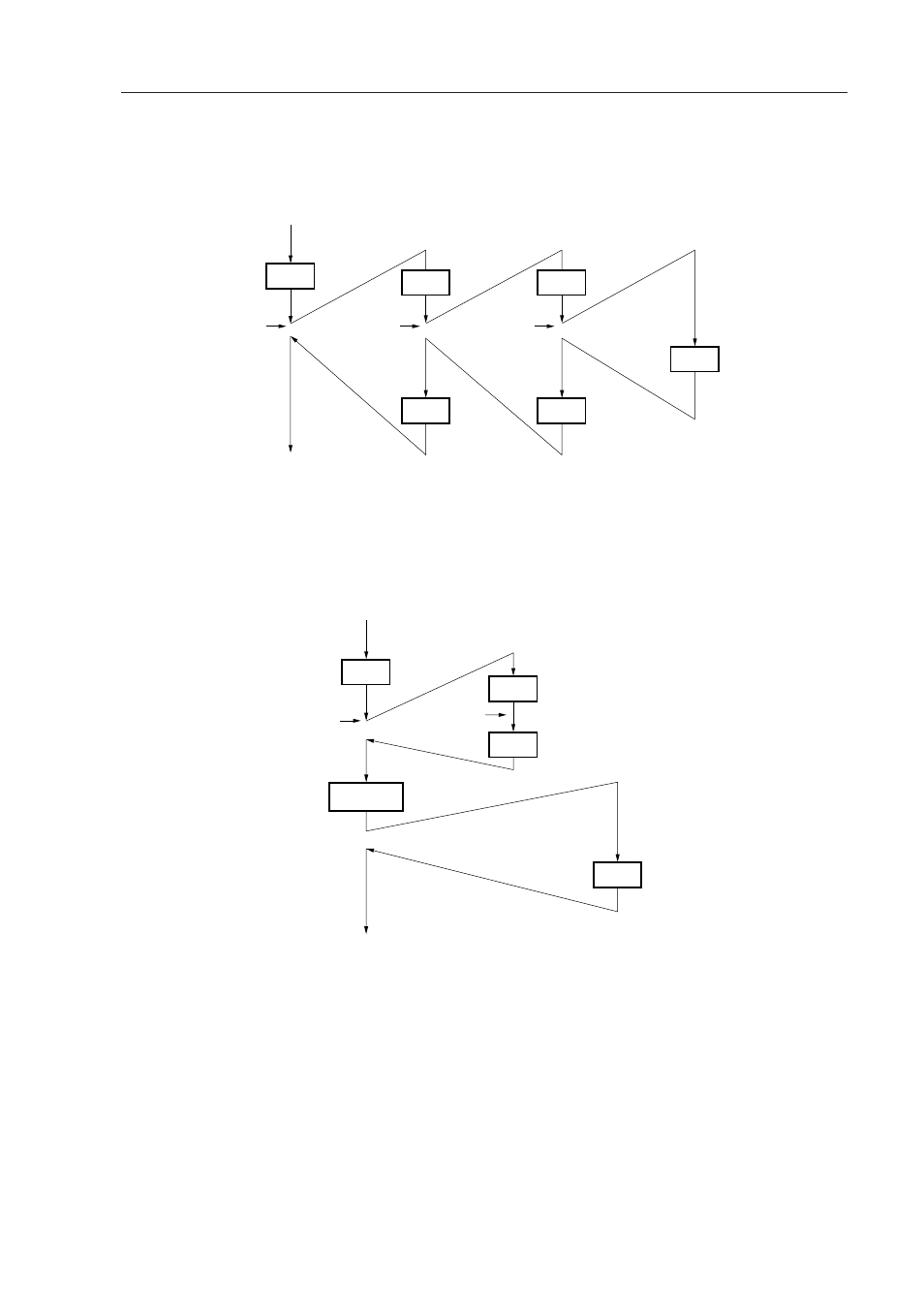

Figure 12-14. Multiple Interrupt Example (1/2)
Example 1. Example of when a multiple interrupt is generated twice.
Two interrupt requests, INTyy and INTzz, are acknowledged during processing of interrupt INTxx,
and a multiple interrupt is generated. Before each interrupt request is acknowledged, the EI
instruction is always executed and interrupt request acknowledgment enabled.
Example 2. Example of when a multiple interrupt is not generated because of priority control.
Interrupt request INTyy, which has been generated during processing of interrupt INTxx, and which
has an interrupt priority that is lower than that of INTxx, is not acknowledged, and a multiple interrupt
is not generated. Interrupt request INTyy is reserved and is acknowledged after execution of one
main processing instructions.
PR = 0 : High priority level
PR = 1 : Low priority level
IE = 0 : Interrupt request acknowledge disabled
