169
CHAPTER 11 SERIAL INTERFACE CHANNEL 2

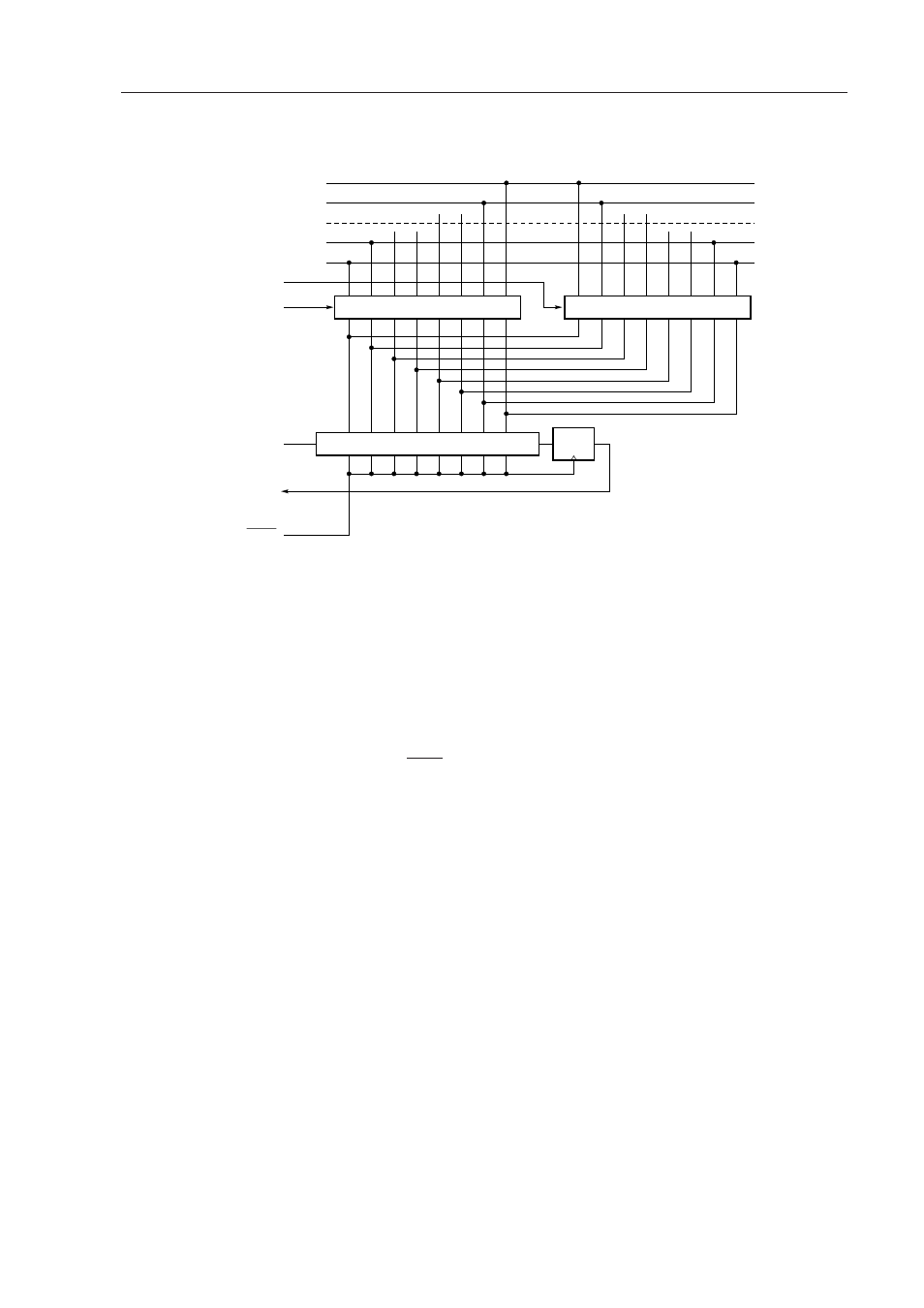

Figure 11-13. Circuit of Switching in Transfer Bit Order
Start bit switching is realized by switching the bit order for data write to SIO2. The SIO2 shift order remains
unchanged.
Thus, switching between MSB-first and LSB-first must be performed before writing data to the shift register.
(4) Transfer start
Serial transfer is started by setting transfer data to the transmission shift register (TXS/SIO2) when the
following two conditions are satisfied.
•
Serial interface channel 2 operation control bit (CSIE2) =1
•
Internal serial clock is stopped or SCK2 is a high level after 8-bit serial transfer.
Caution
If CSIE2 is set to "1" after data write to TXS/SIO2, transfer does not start.
Upon termination of 8-bit transfer, serial transfer automatically stops and the interrupt request flag (SRIF) is
set.
★
7
6
Internal Bus
1
0
LSB-first
MSB-first
Read/Write Gate
SI2
Transmission Shift Register (TXS/SIO02)
Read/Write Gate
SO2
SCK2
D
Q
SO0 Latch
