Enter the WAN port IP address of AP #1 for the

Local WAN IP

Within the

Remote Subnet

and

Remote Subnet Mask

fields, enter the LAN IP subnet and

mask of AP #2 /Device #2.

Enter the WAN port IP address of AP #2/ Device #2 for a

Remote Gateway

Click

Apply

to save the changes.

Select the

Auto (IKE) Key Exchange

radio button.

10. Select the

Auto Key Settings

button.

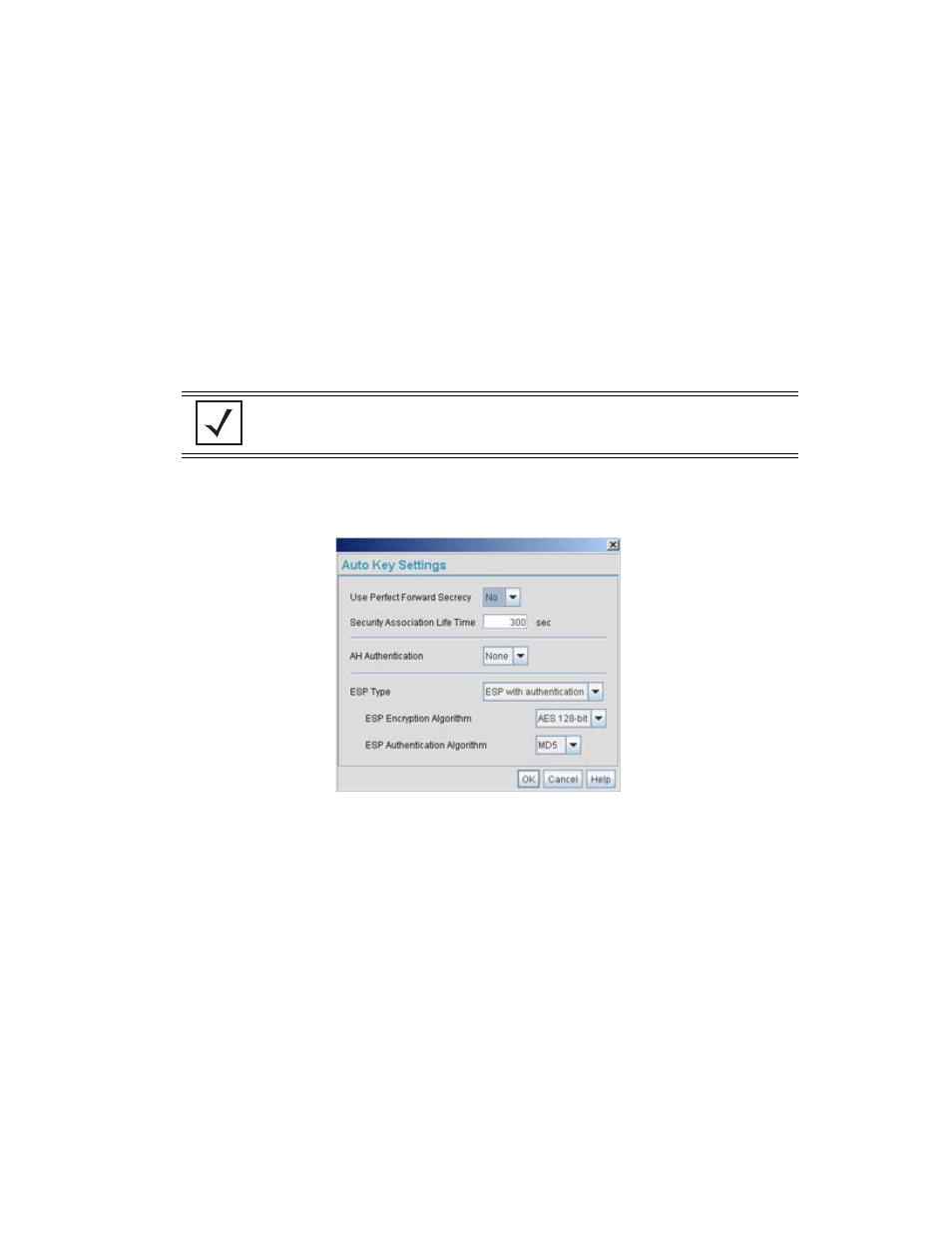

11. For the ESP Type, select

ESP with Authentication

and use

AES 128-bit

as the ESP

encryption algorithm and

MD5

as the authentication algorithm. Click

12. Select the

IKE Settings

button.

NOTE

For this example, Auto IKE Key Exchange is used. Any key exchange can
be used, depending on the security needed, as long as both devices on
each end of the tunnel are configured exactly the same.
