Network Management

5-61

Select the

Advanced Settings

tab

to strategically map BSSIDs to WLANs in order to define

them as primary WLANs.

Set RF QoS

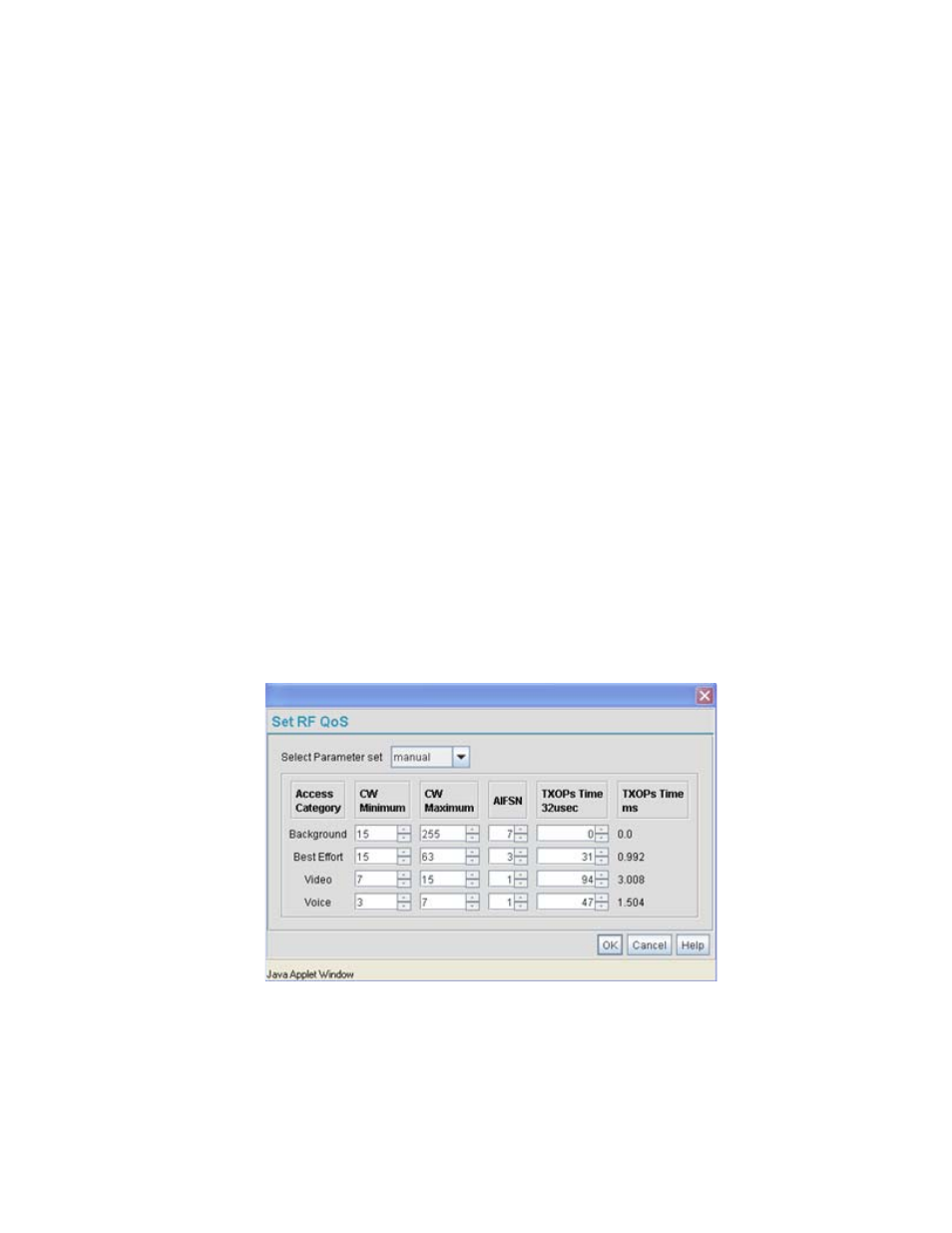

Click the

Set RF QoS

button to display the

Set RF QOS

screen to

set QoS parameters for the radio. Do not confuse with the QoS
configuration screen used for a WLAN. The Set RF QoS screen
initially appears with default values displayed.
Select

manual

from the

Select Parameter set

drop-down menu

to edit the

CW min

and

CW max

(contention window),

AIFSN

(Arbitrary Inter-Frame Space Number) and

TXOPs Time

for each

Access Category. These are the QoS policies for the 802.11a or
802.11b/g radio, not the QoS policies configured for the WLAN (as
created or edited from the

Quality of Service Configuration

screen).

Motorola recommends only advanced users manually set these
values. If the type of data-traffic is known, use the drop-down
menu to select a

11g-wifi,

11b-wifi,

11g-default,

11b-default

11g-voice

11b-voice

option. Wifi represents multimedia

traffic, default is typical data traffic and voice is for “Voice-Over-IP”
supported wireless devices.
Click

to implement the selected QoS values and return to the

802.11a or 802.11b/g radio configuration screen. Clicking

Cancel

reverts the screen to the last saved configuration.
