Hardware Installation

2-7

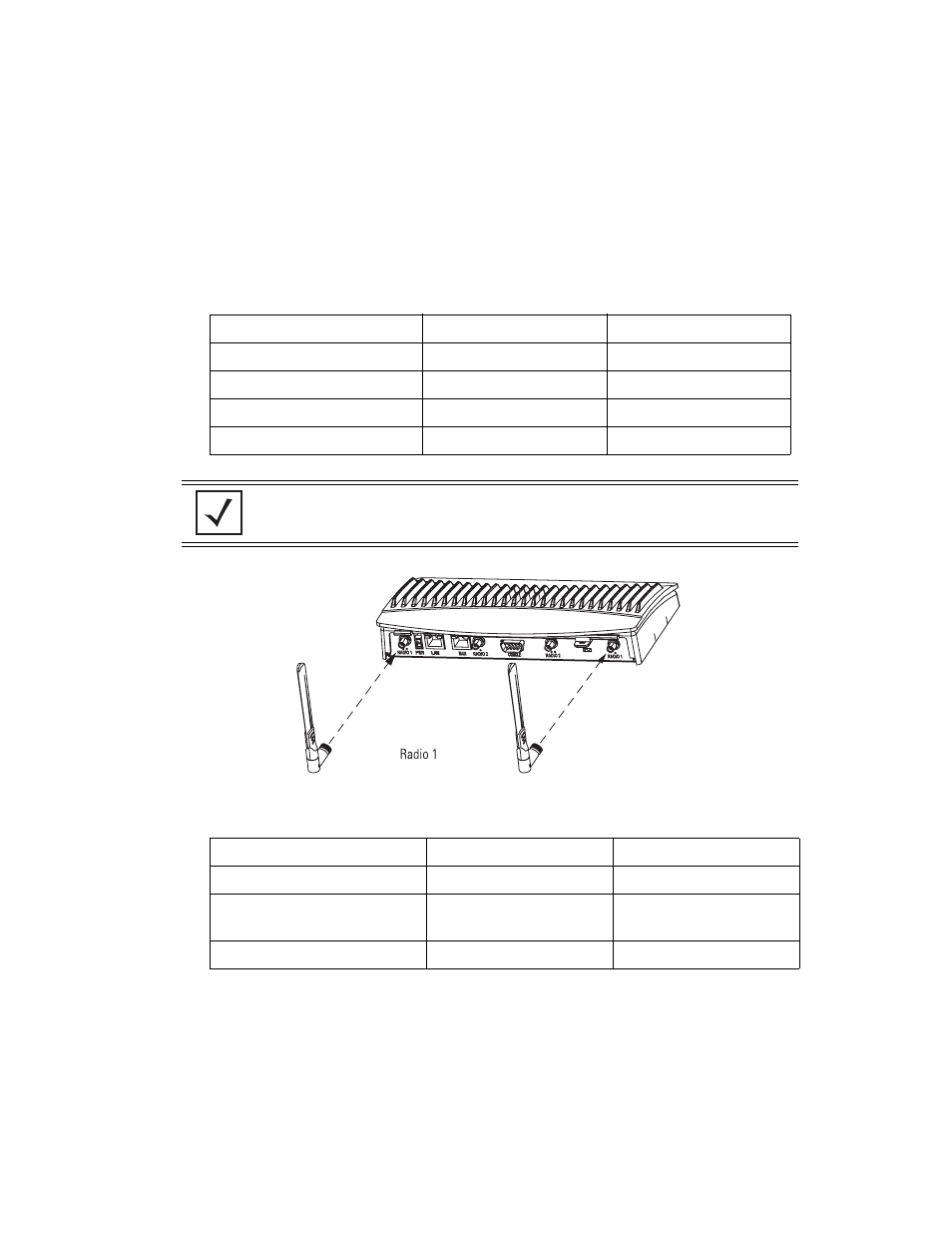

The AP-5131 2.4 GHz antenna suite includes the following models:

The AP-5131 5.2 GHz antenna suite includes the following models:

Part No.

Antenna Type

Nominal Net Gain (dBi)

ML-2499-11PNA2-01R

Wide Angle Directional

8.5

ML-2499-HPA3-01R Omni-Directional

Antenna

3.3

ML-2499-BYGA2-01R

Yagi Antenna

13.9

ML-2452-APA2-01

Dual-Band

3.0

NOTE

An additional adapter is required to use ML-2499-11PNA2-01 and
ML-2499-BYGA2-01 model antennae. Please contact Motorola for more
information.

Part No.

Antenna Type

Nominal Net Gain (dBi)

ML-5299-WPNA1-01R

Panel Antenna

13.0

ML-5299-HPA1-01R

Wide-Band Omni-Directional
Antenna

5.0

ML-2452-APA2-0

Dual-Band

4.0
