GFK-1115 Chapter 3 Quick Start 3 - 41
3
Section 12 Downloading the Project to the Panel
In order to download a compiled project to the Panel, the Panel must first be connected to the PC.
The connection and the cable that should be used are described in Appendix A of the
PANELWARE™ Hardware Installation User's Manual (GFK-0848).
Caution
Ensure that the cable is connected to the serial interface of the PC that is
defined as Channel #2 in the configuration (COM1 or COM2).

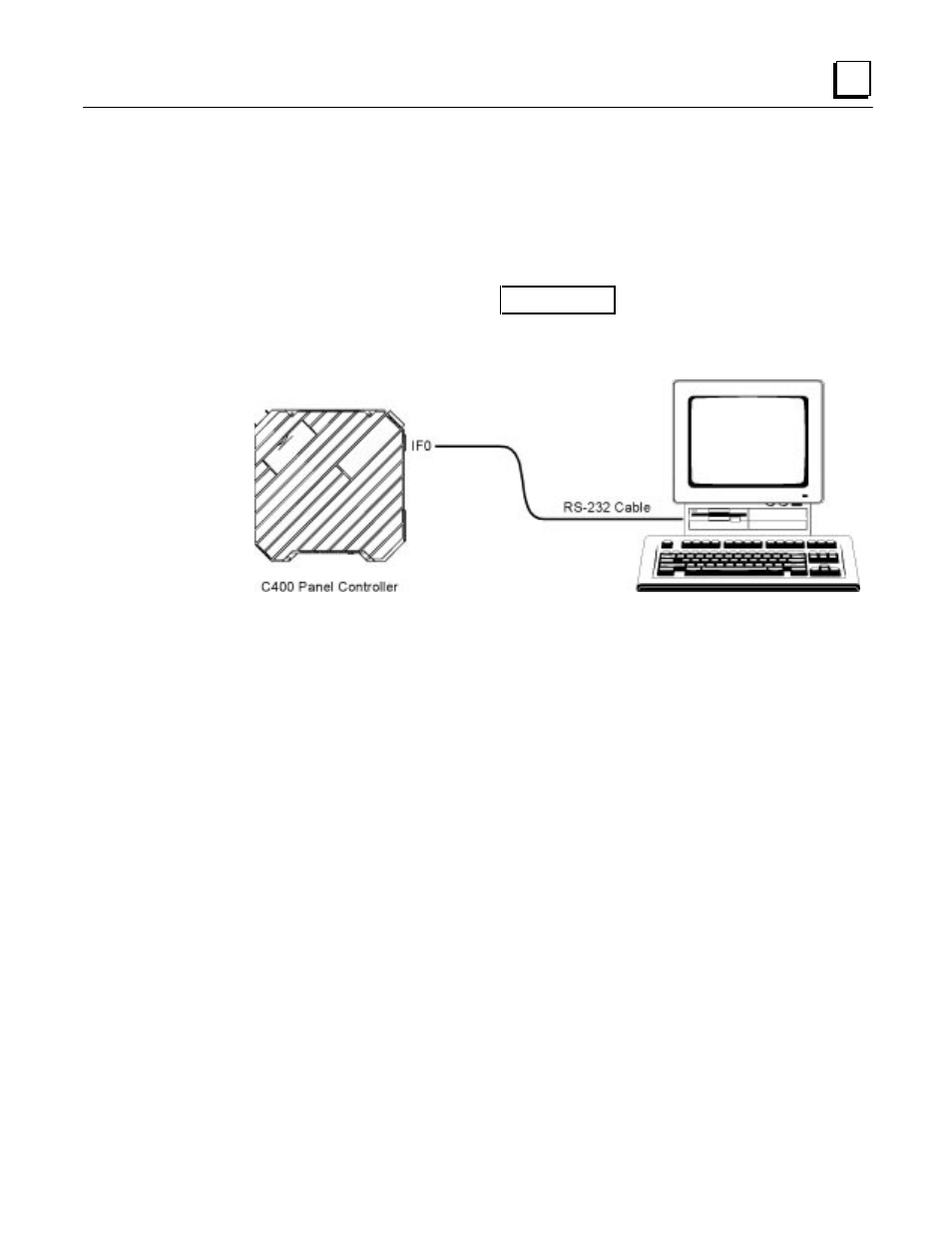

Figure 3 - 2. Panel/PC Serial Connection
Before the download process can be started, the following steps must be completed (see the
PANELWARE Hardware Installation User's Manual for more information):
1. Apply power to the Panel by connecting the 24 VDC cable.
2. Connect the PC and the Panel as shown above.
3. Set the operating mode to Teach-Mode (operating mode switch to position 7).
4. Press the Reset button on the Panel.
Wait until the “Teach-Mode” message is displayed on the Panel screen.
