Page 62
3 - 38
PANELWARE MMI Application Manual for GE Fanuc Genius Protocol -
June 1995
GFK-1115
3
Pict_1

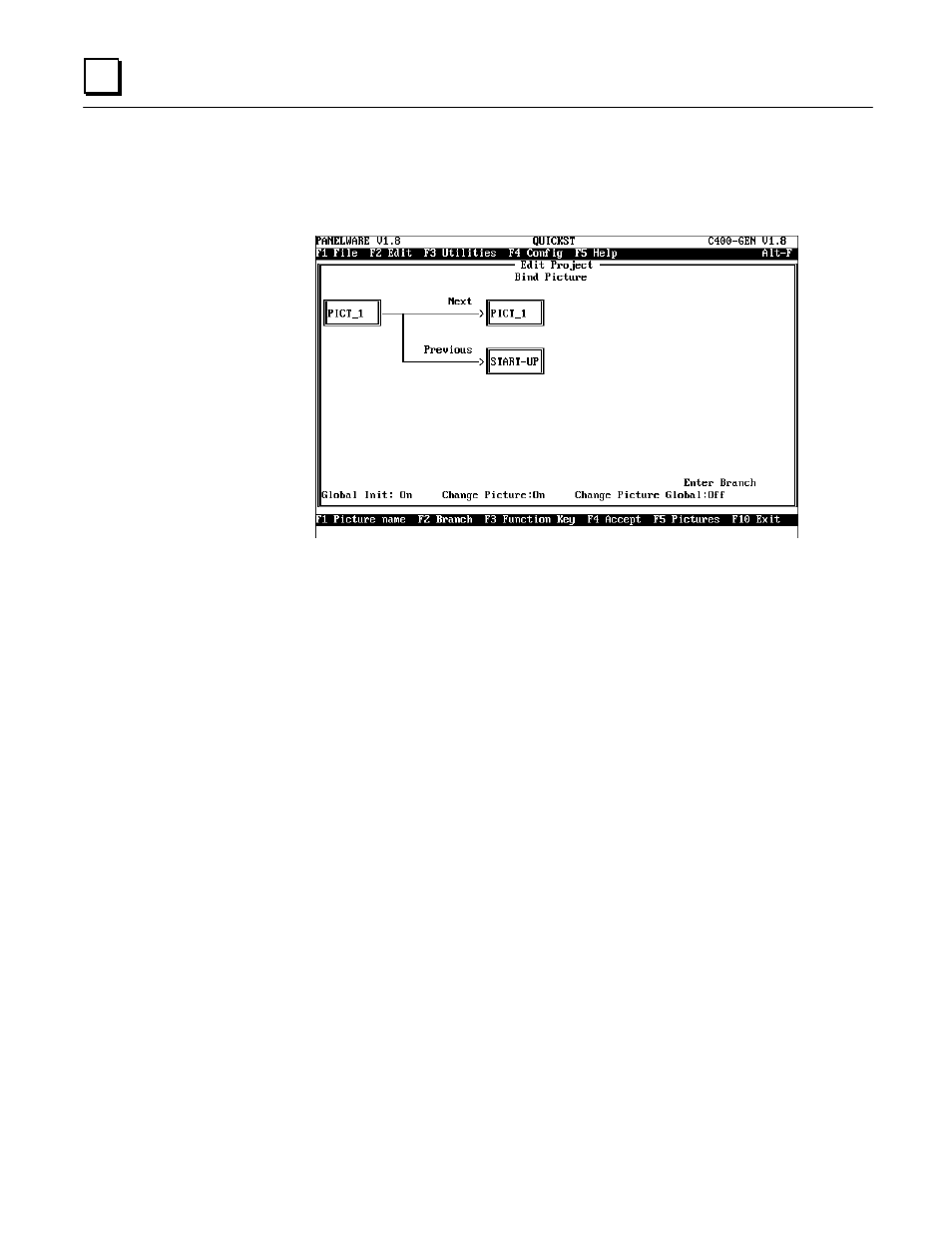

Bind the PICT_1 picture into the example project as follows:
If the PICT_1 picture is bound into the project as shown, the operator will be able to switch back
to the START-UP picture using the Previous key on the Panel. Pressing the Next key causes a
refresh of the screen for the PICT_1 picture. Save the configuration by pressing the F4 Accept
function key.
