2 - 6 PANELWARE MMI Application Manual for Genius Protocol - June 1995 GFK-1115
2

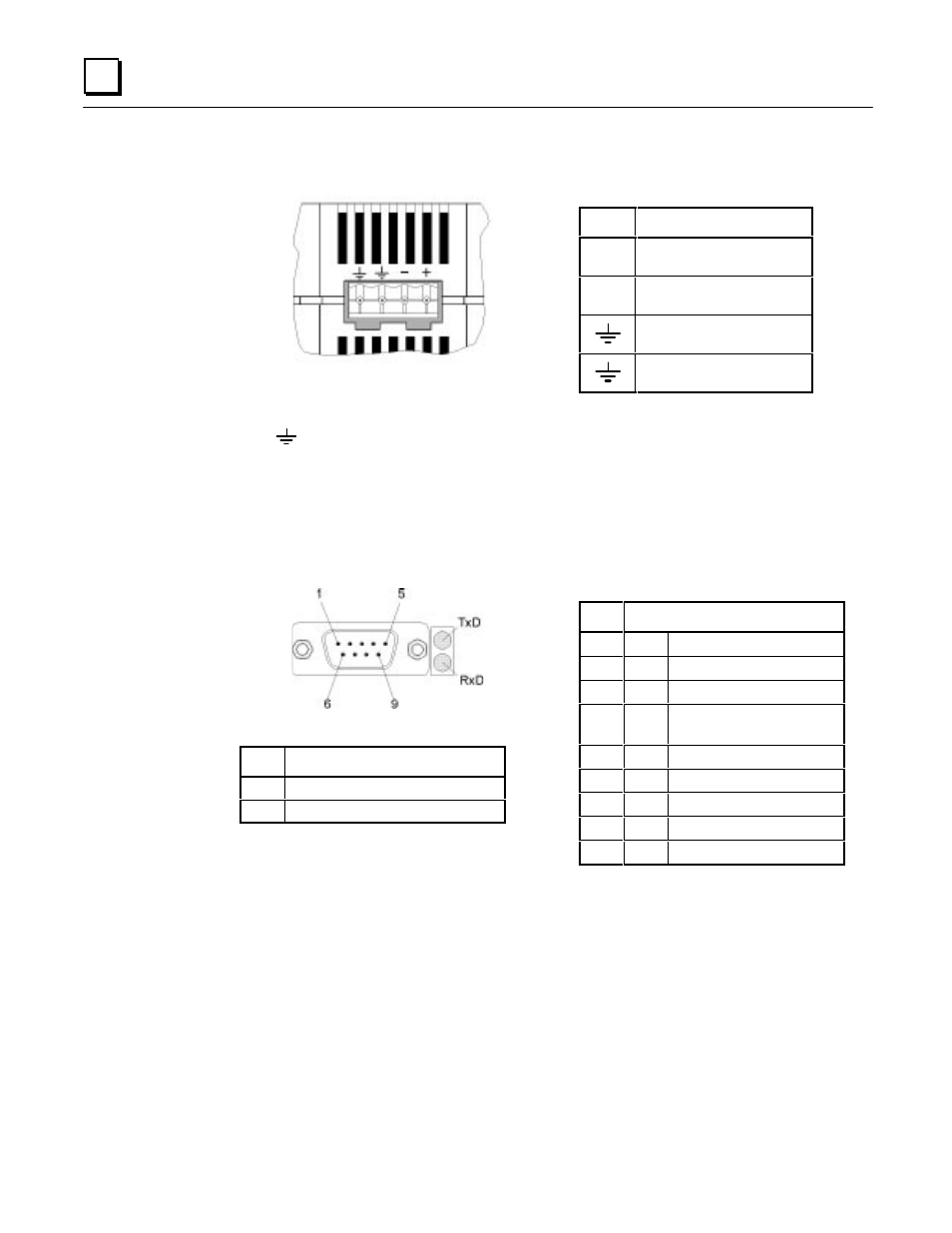

24 VDC Power Supply (item 2, Figure 2-2)
Pin Description
+
+24 V
-
0 V
Ground
Ground
The pins are to be connected using as short a cable as is possible. If the Panel is mounted in a
cabinet, the connecting cable should be as short as possible.
IF0 - RS-232, Non-isolated (item 3, Figure 2-2)
9 pin D-Type (M)
LED Meaning
TxD Send data over interface
RxD Receive data over interface
Pin Description
1 NC
2 RxD Receive Data (Input)
3 TxD Transmit Data (Output)
4 + 5 V Power Supply
(200 mA available to user)
5 GND Signal Ground
6 NC
7 RTS Request To Send (Input)
8 CTS Clear To Send (Output)
9 NC
