GFK-1115 Chapter 3 Quick Start 3 - 23
3

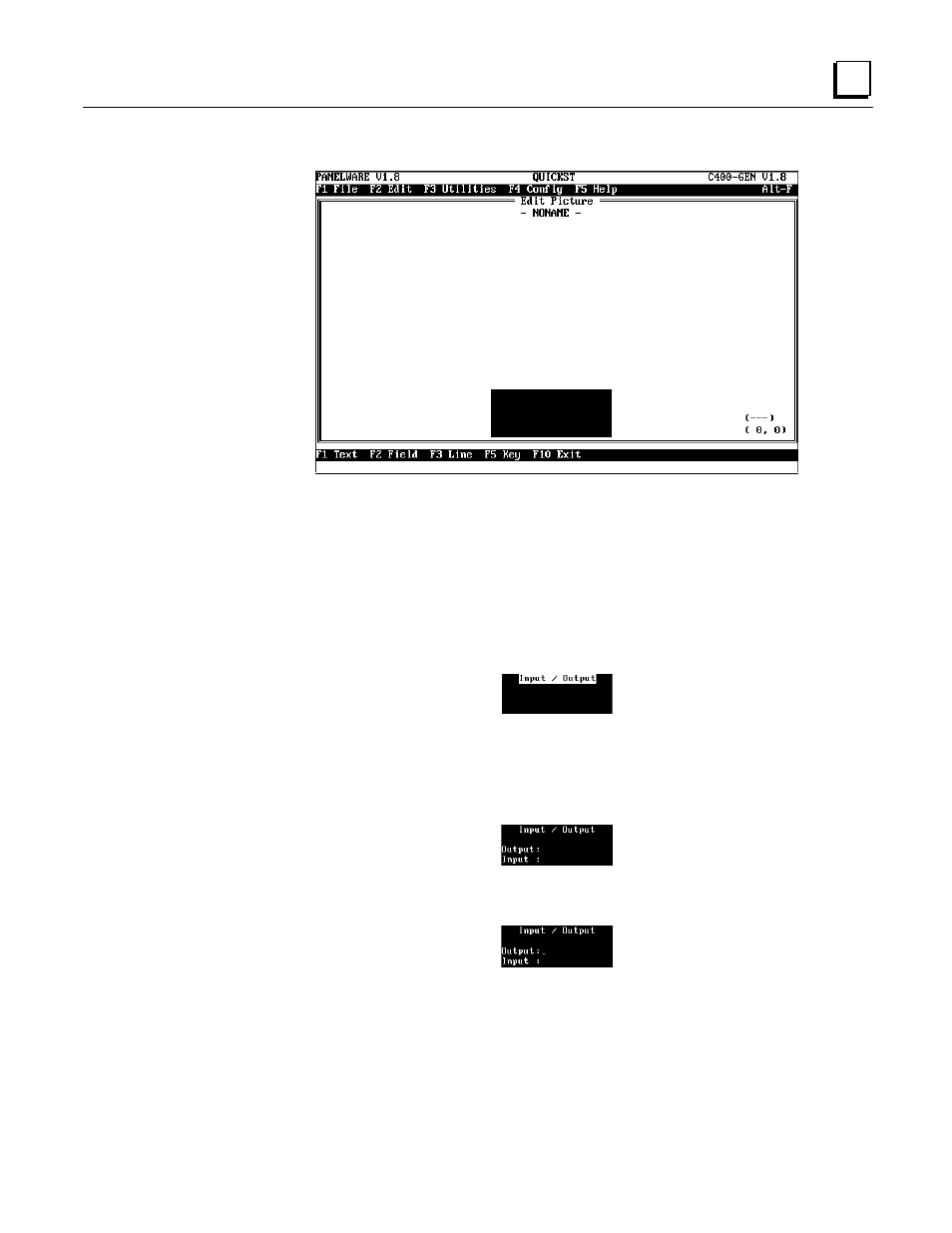

The blank Edit Picture window shown below is displayed:
The size of the dark rectangle (picture) at the bottom of the screen corresponds to the selected
display type (display type LCD 4x20 is shown above, i.e., the rectangle consists of 4 lines and 20
characters per line). Text or fields can now be entered into this rectangle.
In the first line, enter the text Input / Output as follows:
Move the cursor to position (3,0) (the current cursor position is indicated in the lower right-hand
corner of the screen as Column/Row). A text field can now be created simply by typing in the
desired text (
Input / Output ). It is also possible to start a text field by pressing the F1 Text
function key and then entering the desired text.
As long as the cursor is within this text field, the field is displayed inversely (on color monitors it
has a red background). Press
↵ ↵
to complete the text field. The inverse display is switched off and
the text is displayed normally.
Move down to lines 2 and 3, and enter the following text:
Next to the Output: text, begin creating an output field by moving the cursor to the following
position (8,2):
