GFK-1115 Chapter 6 Demo Project 6 - 45
6

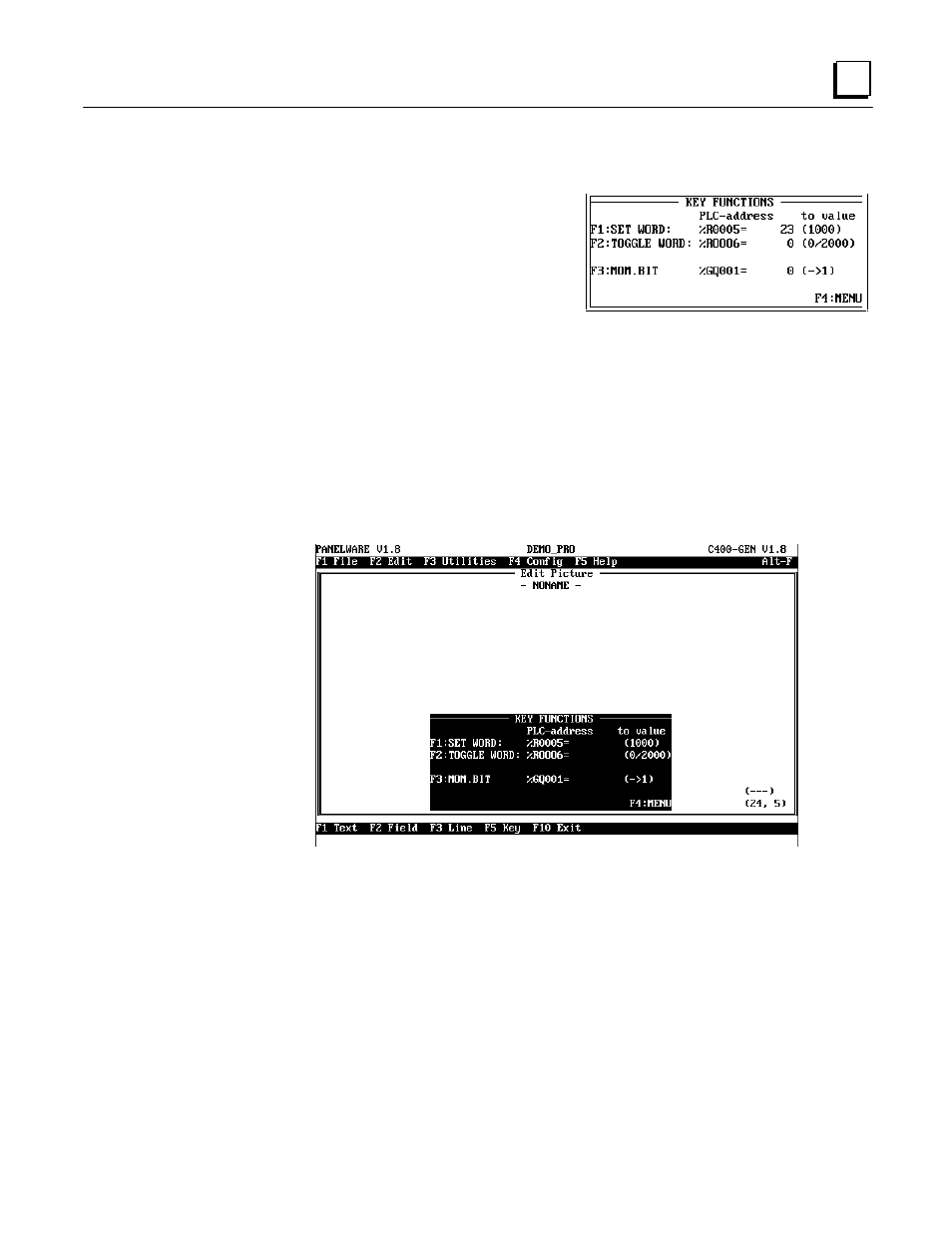

KEYFUNCT Picture (Key Functions)
This picture demonstrates key function possibilities.
Function keys F1 to F3 on the PANELWARE Panel
will be assigned certain key functions:
●
By pressing F1, a value of 10 000 should
be written to a word in the PLC.
●
By pressing F2 the contents of a memory
location in the PLC should be switched between two different values (data type: Word
unsigned).
●
As long as F3 is pressed down, the contents of a PLC address will be a value of 1. As
soon as the key is released, a value of 0 should be written to the address again.
Execute the following steps to create this picture:
1. Call the picture editor from the main menu by pressing key combination Ctrl + B (see page
6-23).
2. Insert all lines and text so that your picture looks like this:
