GFK-1115 Chapter 2 C400 Panel Controller Hardware 2 - 7
2

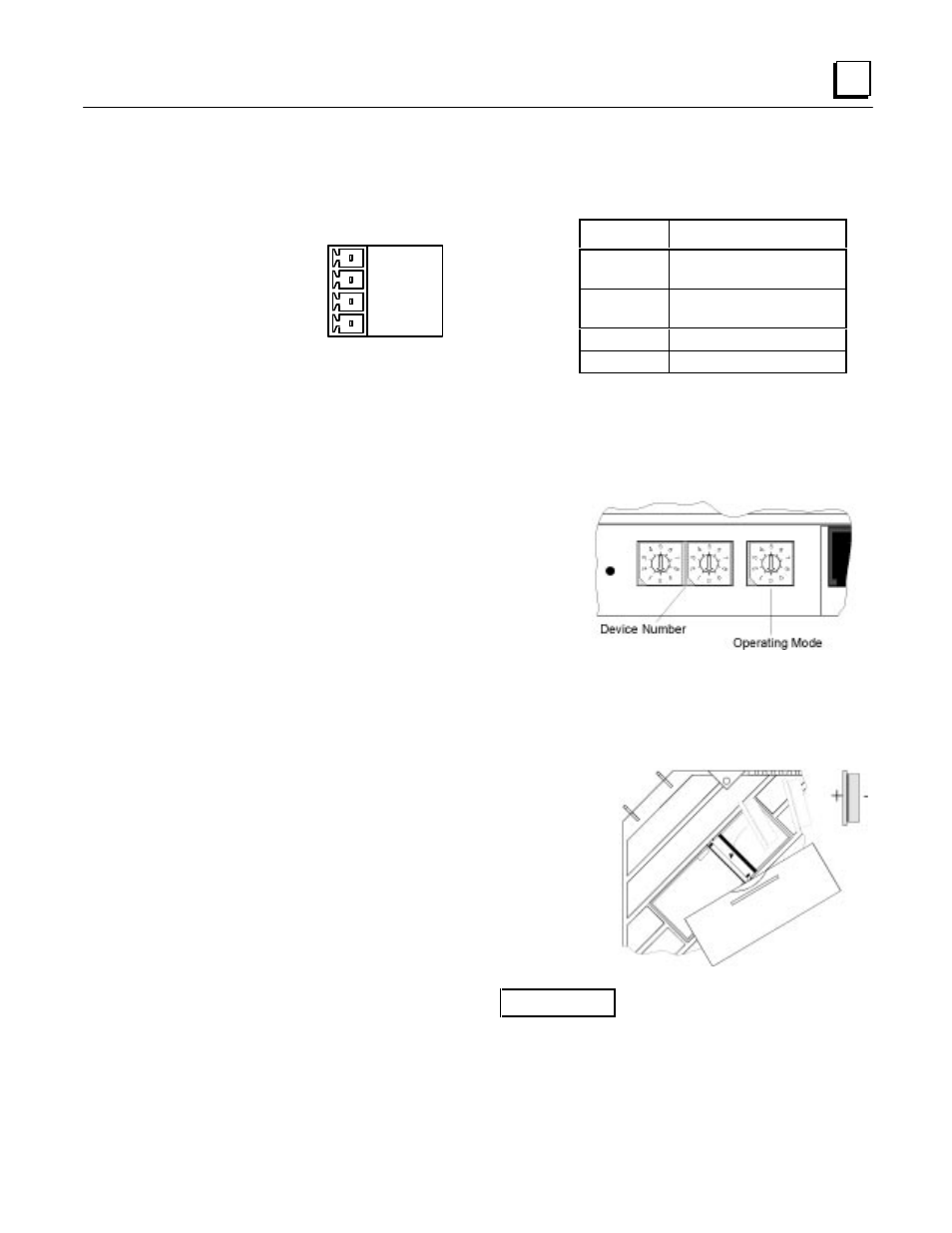

Genius Bus Connector, Isolated (item 4, Figure 2-2)
GENIUS
a45318
SHLD OUT
SHLD IN
X2
X1
Pin Description
SHLD OUT Shield Out (to next physical
device on bus)
SHLD IN Shield In (from previous
physical device on bus)
X2 Serial 2
X1 Serial 1
Mode Switch (item 6, Figure 2-2)
The mode of operation for the Panel Controller is
selected by setting the Operating Mode switch (see
Table 2-2 for operating modes).
Device Number Switches (item 8,
Figure 2-2)
The Genius bus address for the C400 Controller is set using the Device Number switches. Valid
device numbers are 00 to 31, inclusive.
Lithium Battery (item 7, Figure 2-2)
The lithium battery is stored in its own compartment in
the Controller and covered for its own and the user's
protection. It should be replaced every two years, or
whenever the software indicates that the battery is low.
Warning
Lithium batteries are considered harmful waste. Dispose of them in
accordance with the instructions in the Material Safety Data Sheet (MSDS)
that accompany the battery, and in accordance with local regulations.
