GFK-1115 Chapter 6 Demo Project 6 - 41
6
●
Enter the following parameters for the password input field:
Character Size:................................... 2
Number of Digits: .............................. 6
Destination Tagname: ........................ PASSWORD
Tagname for Completion: .................. COMPLETE
Value for Completion:........................ 100
Echo Character: ................................. *
Number of Password Levels: .............. 4
Password for Level #1: ....................... 7748
Password for Level #2: ....................... 6586
Password for Level #3: ....................... 612674
For Number of Password Levels, 0 also counts as a level. (0= no/wrong password.)
T i p
Instead of defining a number combination, as was used in the demo project, you can define a
password from any combination of letters, numbers and/or other characters.
●

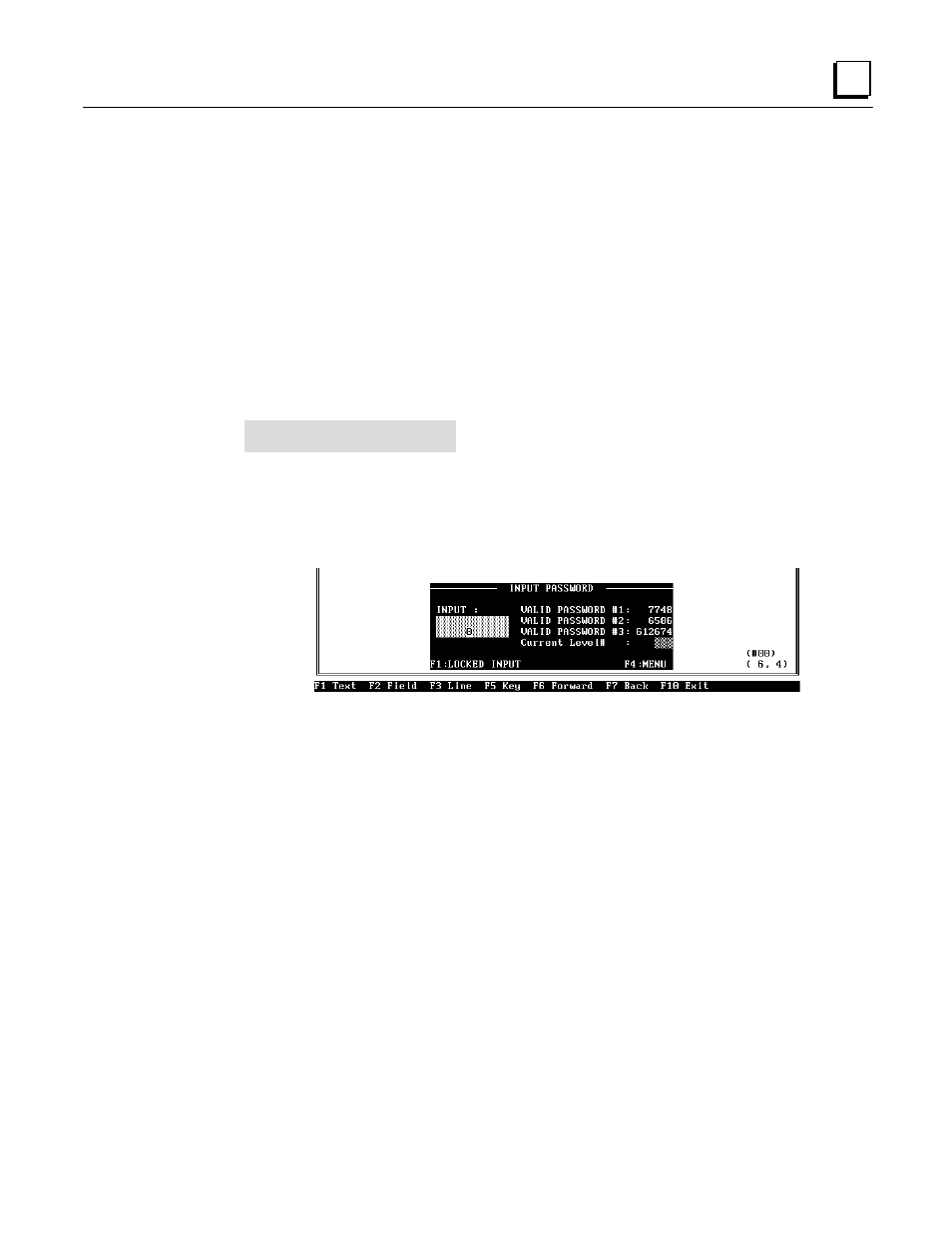

Press F4 Accept after the parameters have been entered. The input field for the password
is inserted into the picture:
4. Insert the output field for the active password level in cursor position (37,5). Output field
Output Bit/Byte
Position:............................................. 37,5
Number of Digits: .............................. 3
Places after dec. point: ....................... 0
Character Size:................................... 1
Field Width:....................................... 3
Tagname:........................................... PASSWORD
Display leading zeros? (Y/N): ............ No
Scaling? (Y/N): .................................. No
5. The next step is to define the LED functions.
●
Function keys F1 and F4 will be assigned LED function Key LED Switched on. These
keys are used to switch to another picture.
●
The method used in assigning LED functions to certain keys is described in step 5 under
the “Main Picture” on page 6-26.
6. Save the picture under the name PASSWORD.
