GFK-1115 Chapter 3 Quick Start 3 - 25
3

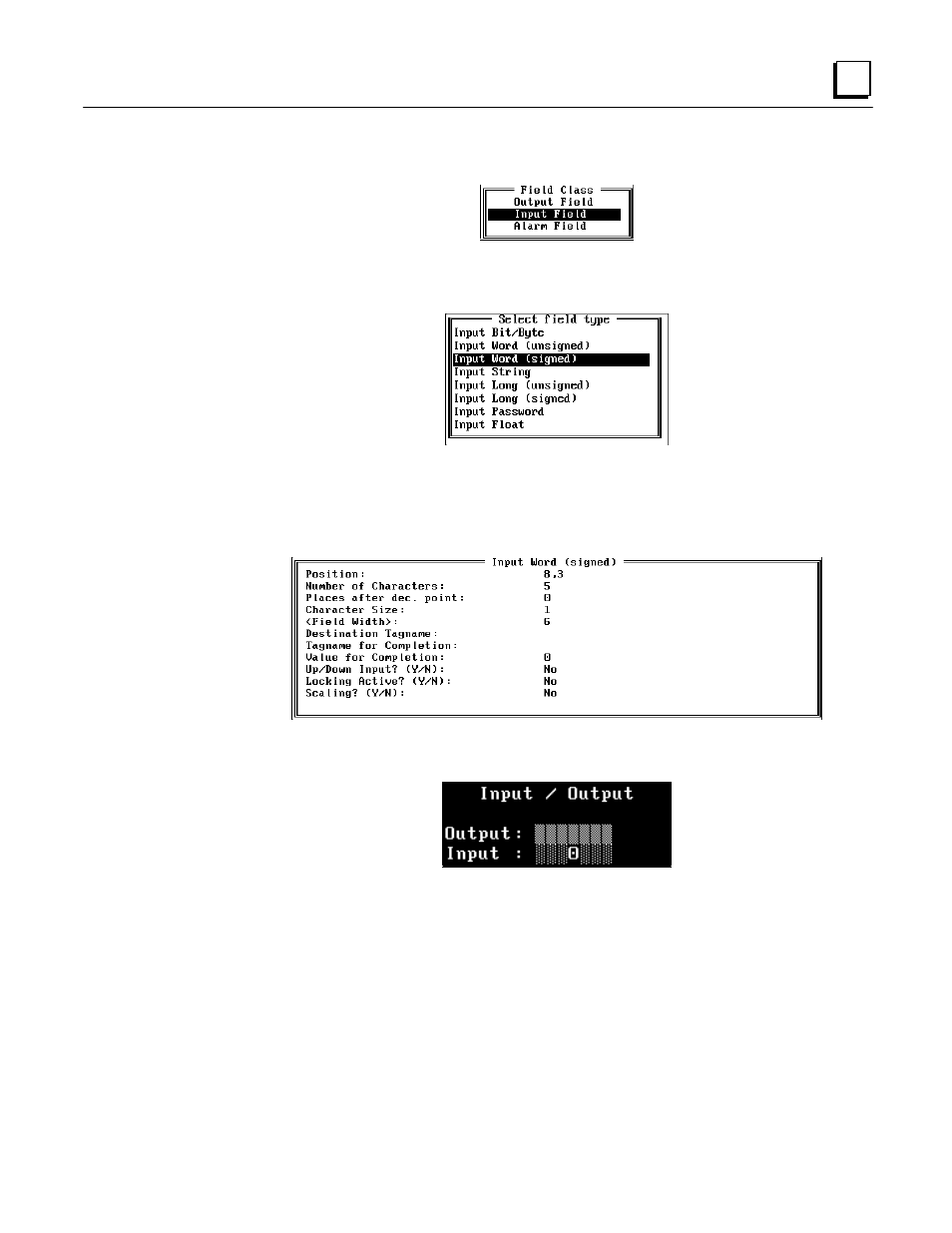

Move the cursor to the Input: text line and press the F2 Field function key. Select the Input
field option from the Field Class window that is displayed:
The Select Field Type window containing all of the input field types is displayed.
For this example, select the Input Word (signed) field type:
In the Input Word window that is displayed, change the following entries as shown by
highlighting them using the cursor keys, then typing the new text:
Places after dec. point: 2
Tagname: VALUE1
Press the F4 Accept function key to close the field and confirm it as part of the picture. The field
should be displayed within the picture as shown below:
