GFK-1115 Chapter 2 C400 Panel Controller Hardware 2 - 3
2
Genius Panel Controller (C400)
Specifications
a45517
2.165"
(55mm)
7.165"
(182mm)
7.165"
(182mm)
GENIUS SHLD OUT
SHLD IN
X2
X1

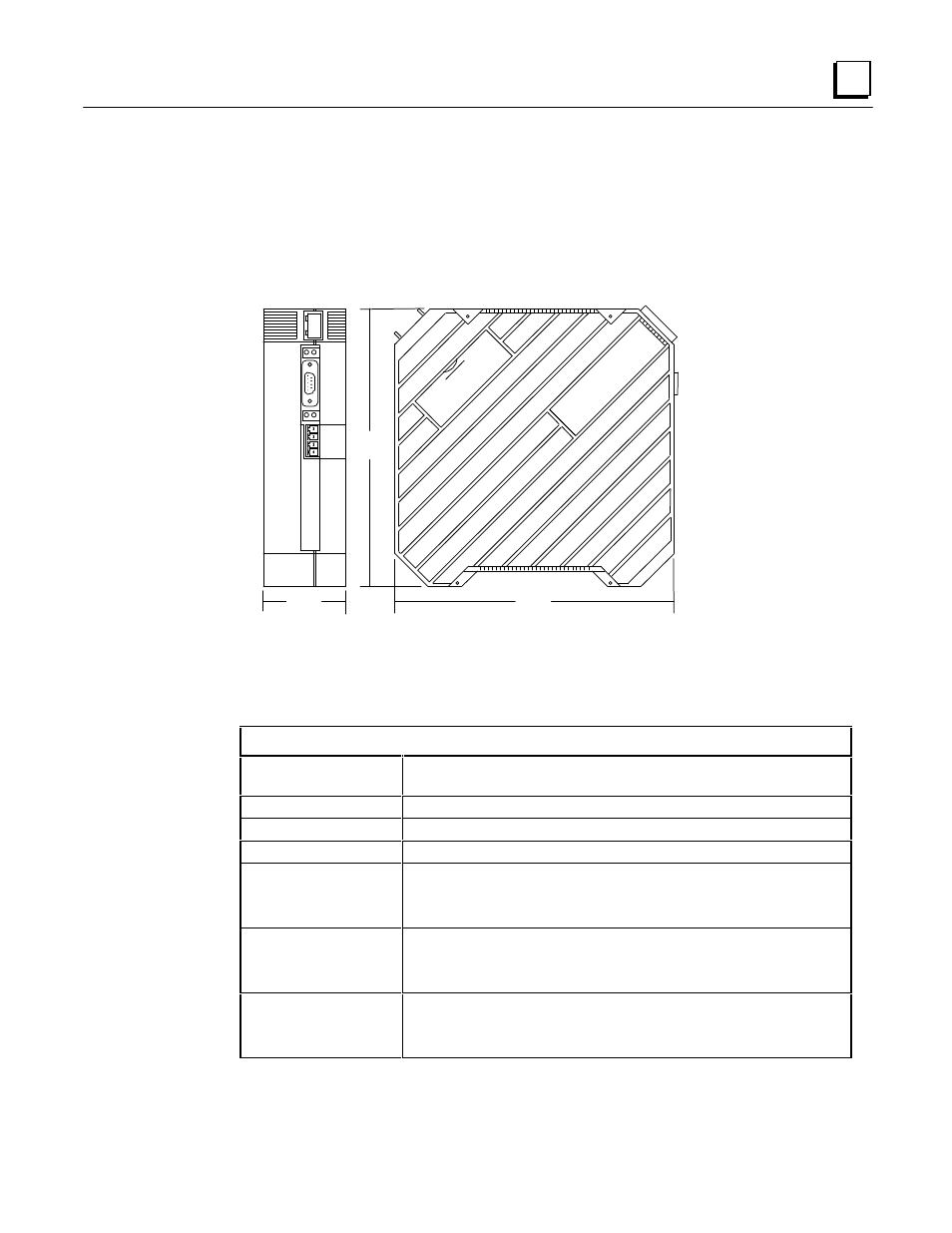

Figure 2 - 1. Genius Panel Controller (C400)
Table 2 - 1. Specifications for Genius Panel Controller (C400)
Technical Data
Interfaces IF0: RS-232 (not galvanically isolated)
Genius: (isolated)
Programming PANELWARE Configuration Software
Power supply 24 VDC (min. 18 VDC, max. 30 VDC)
Real-time clock YES with battery installed (non-volatile)
Connection of ....
Display modules
Keyblock modules
1
maximum of 7
Temperature
Operating
Storage
0 to 50 °C (32 to 122 °F)
-20 to 60 °C (-4 to 140 °F)
Relative humidity
Operating
Storage
10 to 95 % (non-condensing)
10 to 95 % (non-condensing)
