6 - 14 PANELWARE MMI Application Manual for GE Fanuc Genius Protocol - June 1995 GFK-1115
6
Alarm List

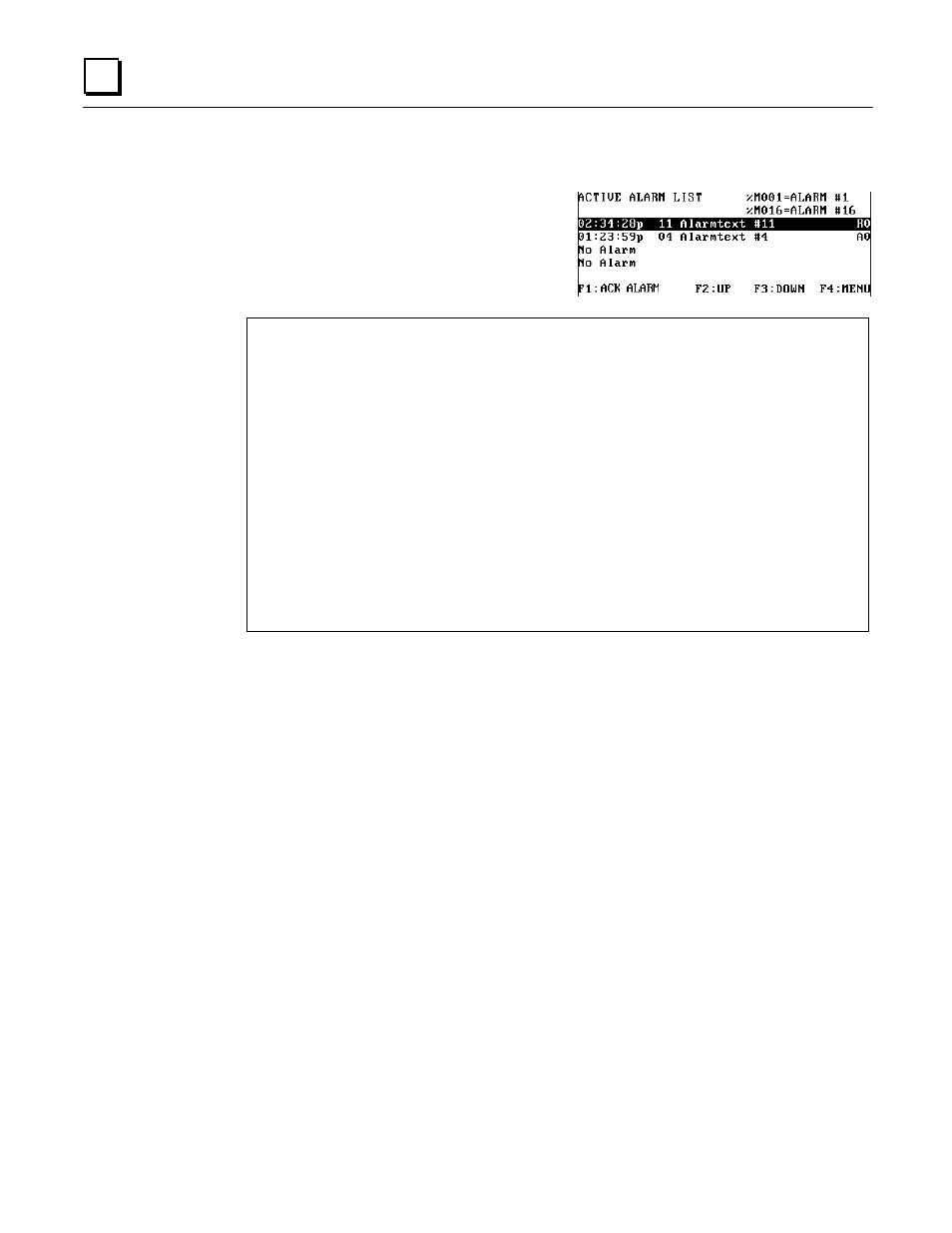

Pressing the F4 key while in the main menu
causes the ACTIVE ALARM LIST to appear on
the Panel display:
Key LEDs:
Alarms are displayed according to an alarm bit field that is found in memory location %M001
through %M016 in the PLC. For example, if %M008 is changed from 0 to 1 in the PLC, alarm 8
is entered in the alarm list. (More information about the alarm bit field structure in the PLC can be found in
chapter 4.) Also, see the PANELWARE™ Configuration Software Reference Manual (GFK-0849)
for a more detailed description of alarms.
An entry in the list contains the following information:
Alarm time When the alarm occurred
Alarm number Number of the alarm (corresponds to the bit number in the alarm bit field)
Alarm text Short description of the alarm
Information Information about the type of alarm
Priority Priority of the alarm
The following functions are assigned to keys F1 – F3:
F1 Acknowledgment for the selected alarm.
F2/F3 Scroll through the alarms in the alarm list (F2=Up; F3=Down). Scrolling
through the list selects an alarm (inverse display), which can be acknowledged
by pressing the F1 key.
Pressing the F4 key returns you to the main menu.
