6 - 58 PANELWARE MMI Application Manual for GE Fanuc Genius Protocol - June 1995 GFK-1115
6
Editing the Alarm System

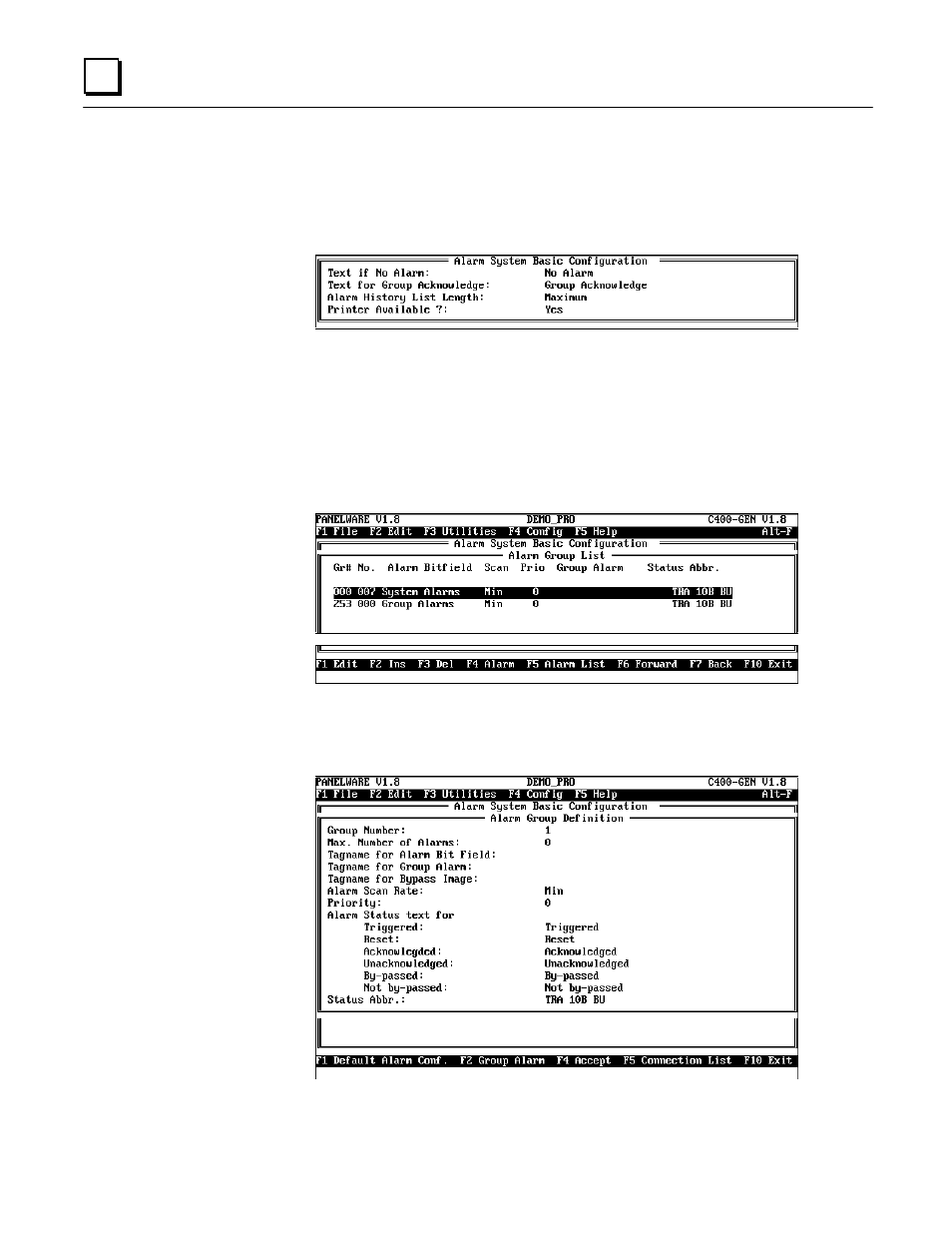

The alarm system can be accessed via the Alarm System option in the Edit menu, or by pressing
the key combination Ctrl + A. The alarm system basic configuration screen appears:
For the demo project, no printer will be supported. To disable the printer, follow these steps:
1 . Press F1 Edit to begin editing the Alarm System Basic Configuration.
2 . Move the cursor to the Printer Available field, type NO , and press
↵ ↵
.
3 . Press F4 Accept to complete the editing step.
4 . Now press F4 Alarm Group List to call up a directory of alarm groups. By default, this
directory contains two predefined groups:
5 . In order to display alarms from the PLC, which are stored in the Panel, an alarm group must
be inserted. To do this, follow these steps:
A . Press F2 Ins. The Alarm Group Definition window appears:
