GFK-1115 Chapter 6 Demo Project 6 - 29
6
3. Insert an input field that increments/decrements using keys F1 and F2, respectively. Follow
these steps:
●
Position the cursor at (11,2).
●
Press F2 Field.
●
Select Input Field from the Field Class selection window and press the
↵ ↵
key.
●

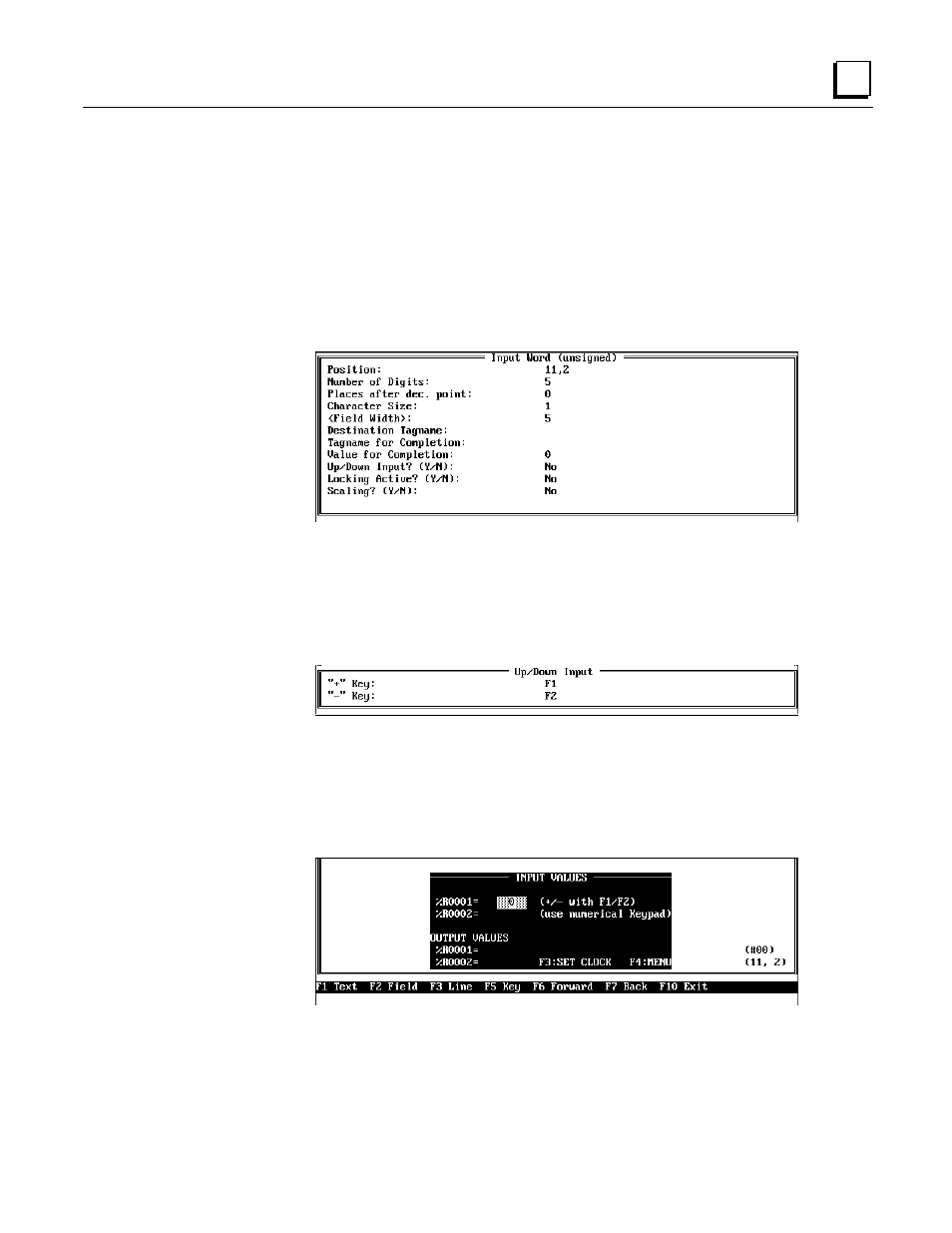

Select the input field Input Word (unsigned) from the Select Field Type, which will
bring a parameter definition window onto the screen for entering or changing the
parameters of the input field:
●
Enter INP_WORD as the Destination Tagname and confirm the entry with
↵ ↵
. The
declaration of this address is done collectively in the connection editor.
●
Move the cursor to the Up/Down Input line. press the Y and then
↵ ↵
, to define the field as
an up/down input.
●
Now, press F1 Up/Down Input. The following window appears:
●
In the window shown above, the F1 function key is defined as the key for incrementing
the value (F key +) and F2 for decrementing (F key -).
●
Press F4 Accept to confirm the definition and to close the Up/Down Input window.
●
Now, press the F4 key again to confirm your entries and to close the Input Word
(unsigned) window. The input field is shown on the screen:
