GFK-1115 Chapter 6 Demo Project 6 - 35
6
●
To achieve a limit on the entry between 0 and 23, the scaling parameters are changed as
follows:
0% Value in the PLC: ................ 0
100% Value in the PLC: ............ 23
Minimum Value on Panel: ......... 0
Maximum Value on Panel: ........ 23
Setting the scaling parameters to these values stops any entries outside of the range from 0
to 23.
●
Press the F4 Accept key to confirm the entry and to close the Scaling window.
●

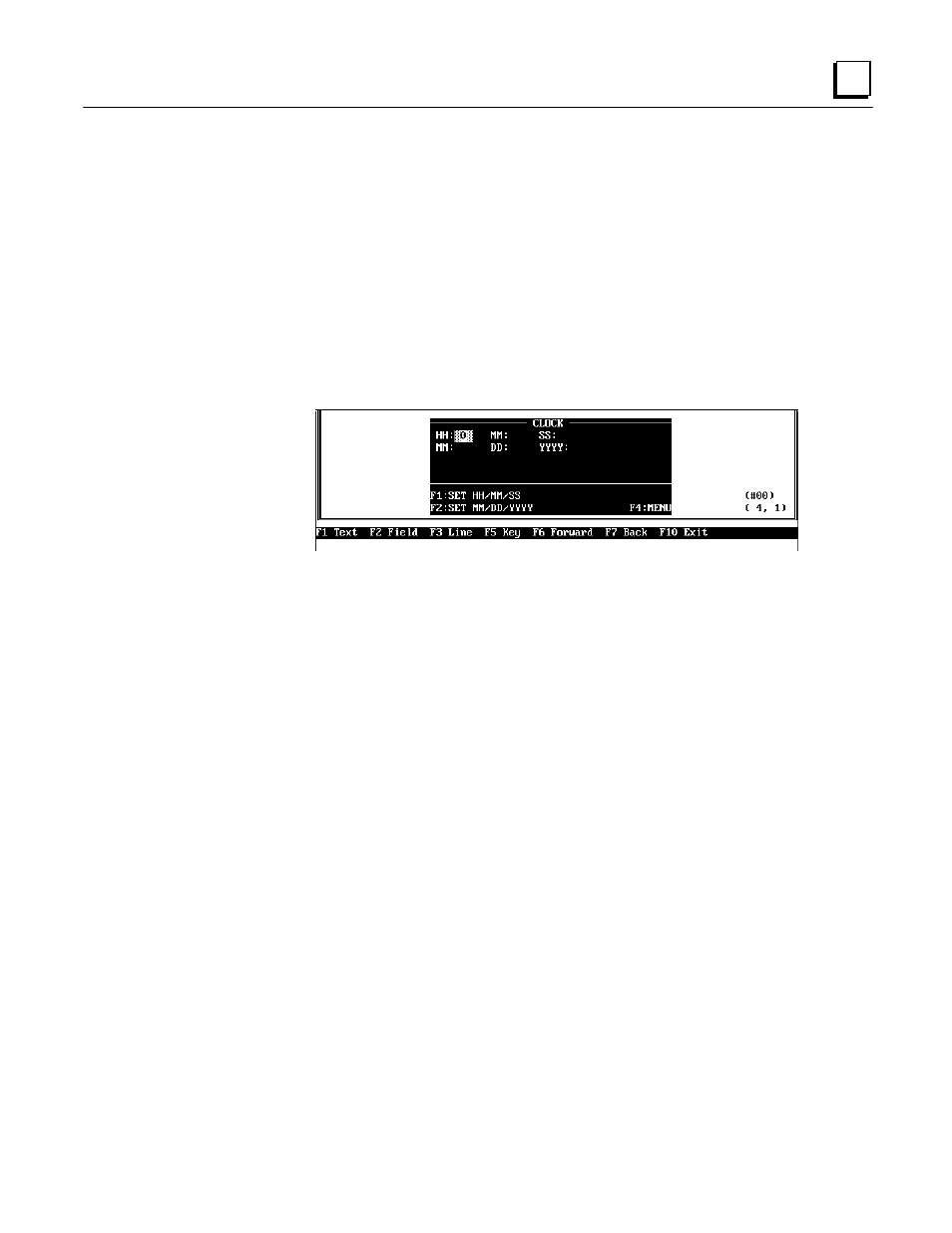

Press the F4 Accept key to confirm the field parameters and to close the Input Bit/Byte
window. The input field for the Hours (HH) is shown in the picture:
