BOOM SECTIONS
BOOM SLIDER PADS
The boom sections move in and out on slide wear
pads. These pads are positioned on the top, bottom
and sides of the boom to protect the boom frame
against excessive wear.
It is important that these pads be lubricated on a
regular basis and kept clean. The Slider pads are
shim adjusted and regular inspection and adjustment
is required.
SLIDER PAD TORQUE:
1/2" = 60 ft. lbs.
3/8" = 20 ft. Ibs.
Use #242 Loctite

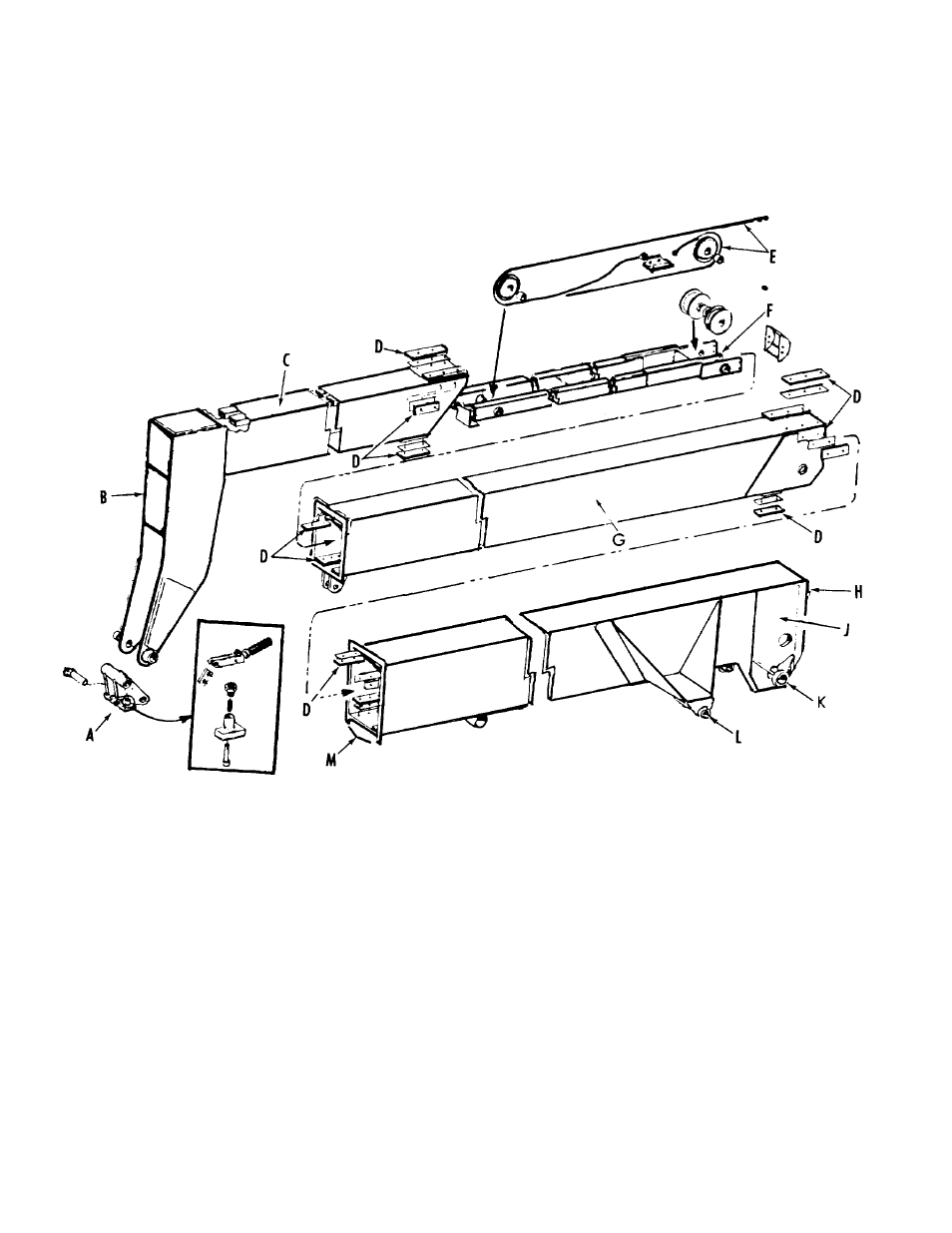

Manual “Quick-Switch”
Boom Head
3rd Boom Section
Boom Slider Pads
Boom Cables & Sheaves
Push Beam
2nd Boom Section
Rear Cable Anchor
1st Boom Section
Boom Trunion Pin
Boom Hoist Cylinder Pin
Crowd Cylinder Support
16
A -
B -
C -
D -
E -
F -
G -
H -
J -
K -
L -
M -
